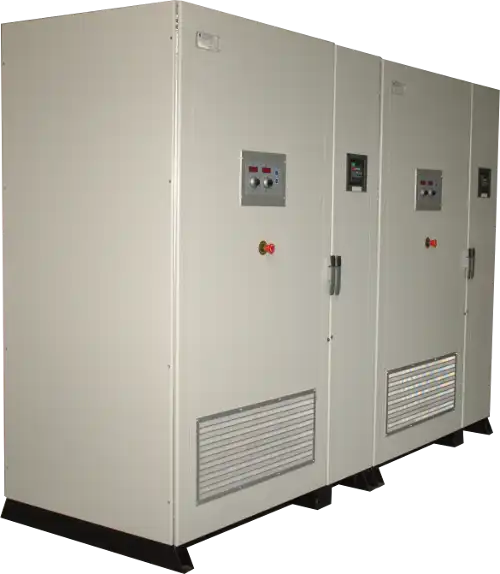

The AL3000 series are high-performance DC power supplies for production and R&D, from 5kW to 500kW (up to 4MW in parallel) at 10–1000V. Delivering clean, low-ripple output with fast response and over 92% efficiency. Flexible modes include CV, CC, CP, and internal resistance simulation, with CP models maximizing output at mid-voltage. AL3000R is available with regenerative power option.
Why Choose AL3000 Series
Wide operating envelope from low low to very high power up to 4MW
All-included safeties and clean design simplifies test set up, usage, and maintenance
Fast rise and fall times down to 500μS. Overload capacity up to 200% for 1 minute
High-frequency switching and multi-level topology deliver clean DC output
Key Specifications
- Power levels 5KW up to 500KW per unit
- Parallel configurations up to 4MW
- Voltages ranges from 10Vdc up to 1200Vdc
- Current up to 500Adc
- Fast Slew Rate: Rise and fall times as low as 500 µs, enabling rapid response to load changes
- High-frequency switching and multi-level topology deliver clean DC output
- Overload capacity up to 200% for 1 minute
- High conversion efficiency > 92%
- Operating Modes: CV, CC, CP, resistor simulation
- CP models double current at mid-voltage to maximize output
- Precision: Voltage regulation accuracy better than 0.2%
- Sensing Feature compensates for voltage drop along cables (up to 10% of full scale)
- Isolated output
- User-friendly front panel featuring multi-turn potentiometers and LED displays for precise control and monitoring.
- Programmable via RS485; optional interfaces include USB, LAN, and optical fiber.
- Four digital and four analog I/O ports facilitate seamless integration into automated test systems.
- Windows™ Software for PC control
- Easy maintenance and calibration

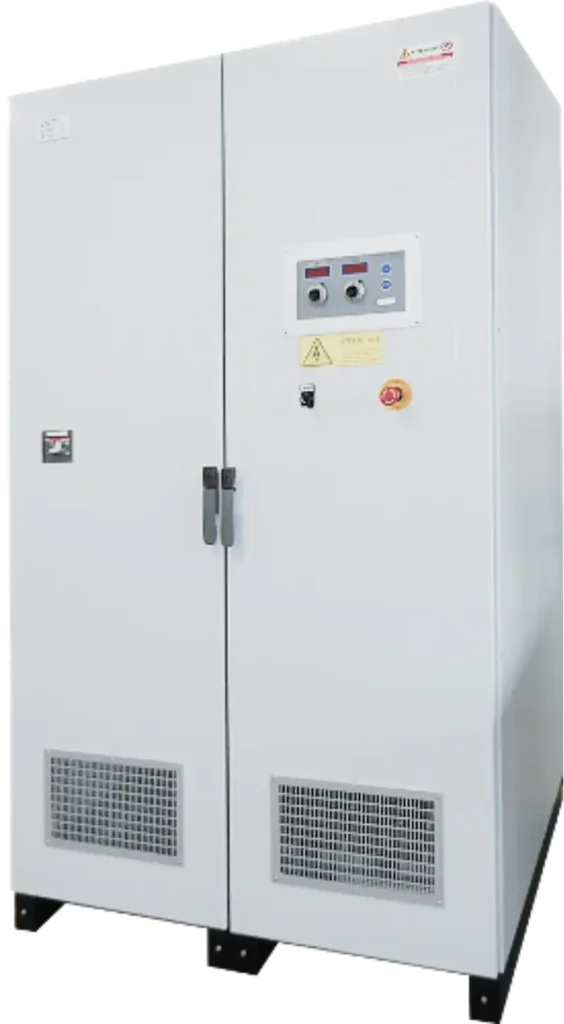

DC Power Supplies with Fast Slew Rates

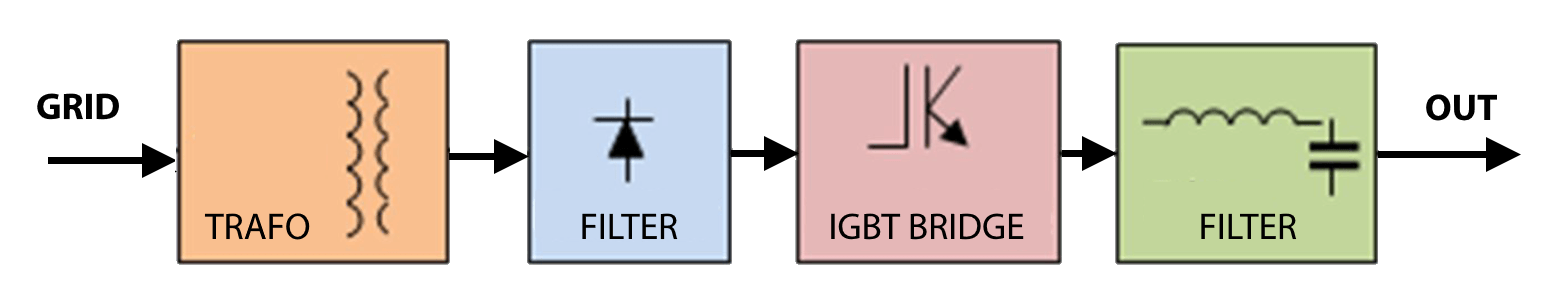

Using an isolation dual back-to-back full bridge topology, the AL3000 provides efficient and reliable solid state power conversion in non-regenerative mode.
The AL3000 is available in either standard version (max current available at max voltage) or in Constant Power version using a more flexible range where higher output current is available at lower voltage settings. This is illustrated in the diagram to the right.

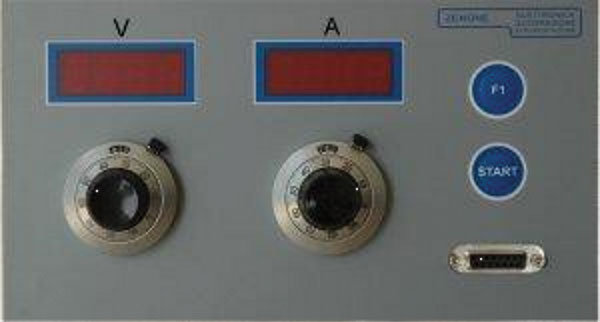

Multi-turn potentiometers provide precision control over voltage and current set points. Settings can be locked so no accidental adjustment can be made.
Two large LED Segment displays provide continuous readouts of voltage and current to the load.
Intuitive Windows based AM Manager control software turns any PC into a remote operator console. The AM Manager software provided a higher level of power supply control than available from the front panel.
| Standard Voltages V LL | LN | |
|---|---|
| Single V Range | |
| 150V / 87V | |
| 300V / 173V | |
| 500V / 289V | |
| 690V / 400V | |
| 900V / 520V | |
| 1000V / 577V | |
| Dual V Ranges | |
| 150V/300V | 87V/173V | |
| 300V/600V | 173V/346V | |
| 345V/690V | 200V/400V | |
| 450V900V | 260V/520V | |
| 500V/1000V | 289V/577V | |
| Vxxxx |
| Output Power | |
|---|---|
| 5kVA | |
| 10kVA | |
| 15kVA | |
| 20kVA | |
| 30kVA | |
| 50kVA | |
| 75kVA | |
| 100kVA | |
| 150kVA | |
| 200kVA | |
| 300kVA | |
| 400kVA | |
| 500kVA | |
| 600kVA |
| Option | Description | |
|---|---|---|
| /M-AL-SW | Software FVC Manager | |
| /PCR | Interface for parallel operation | |
| /LAN | LAN interface | |
| /FIB | Optic fiber interface | |
| /PID | PID Software | |
| /USB | USB interface | |
| /Vxxxx | Special voltage range |
