High Power Density Regenerative AC & DC Power Source, 6kVA to 1.296MVA
High Power Density Regenerative AC & DC Power Source, 6kVA to 1.296MVA

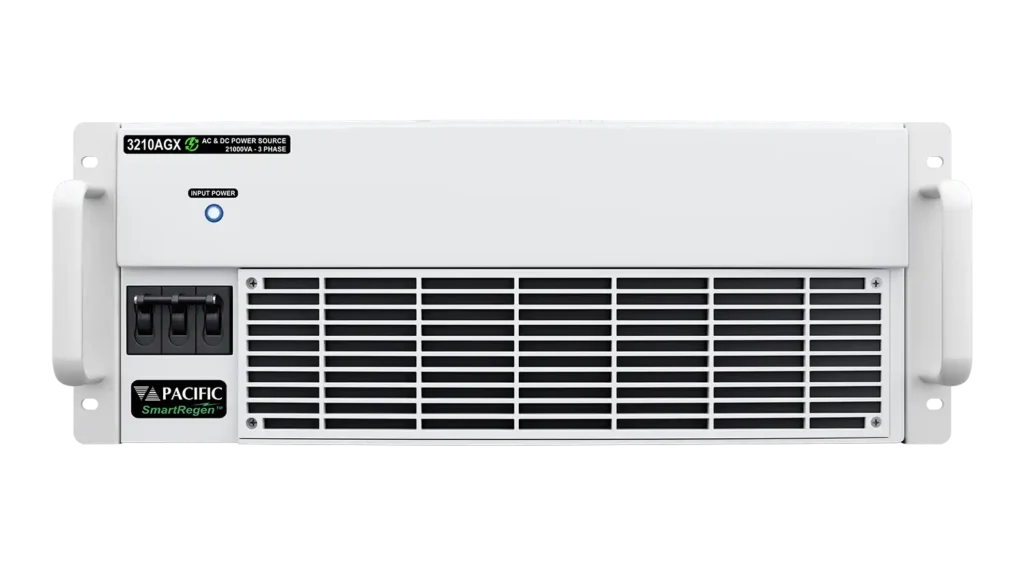

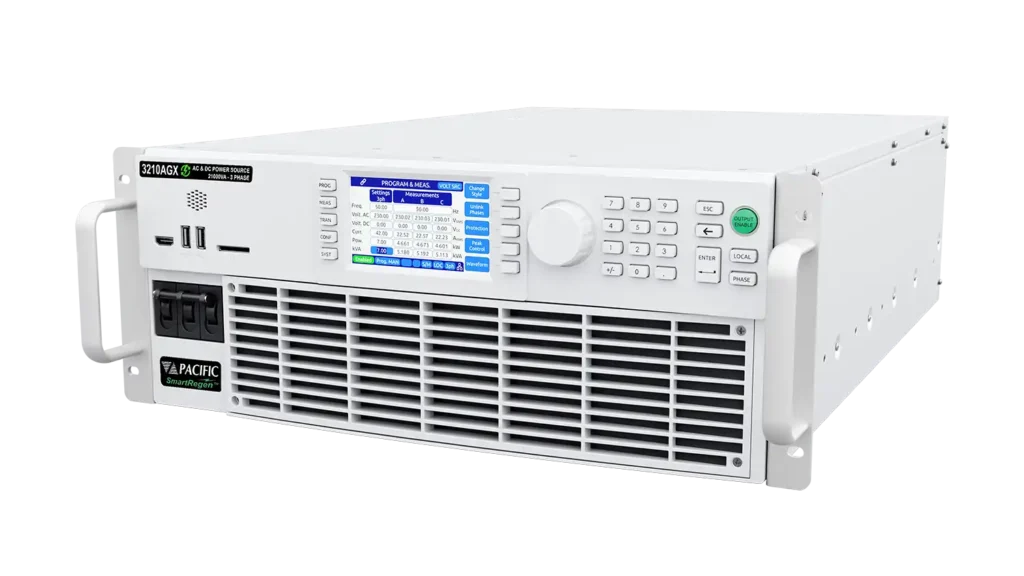

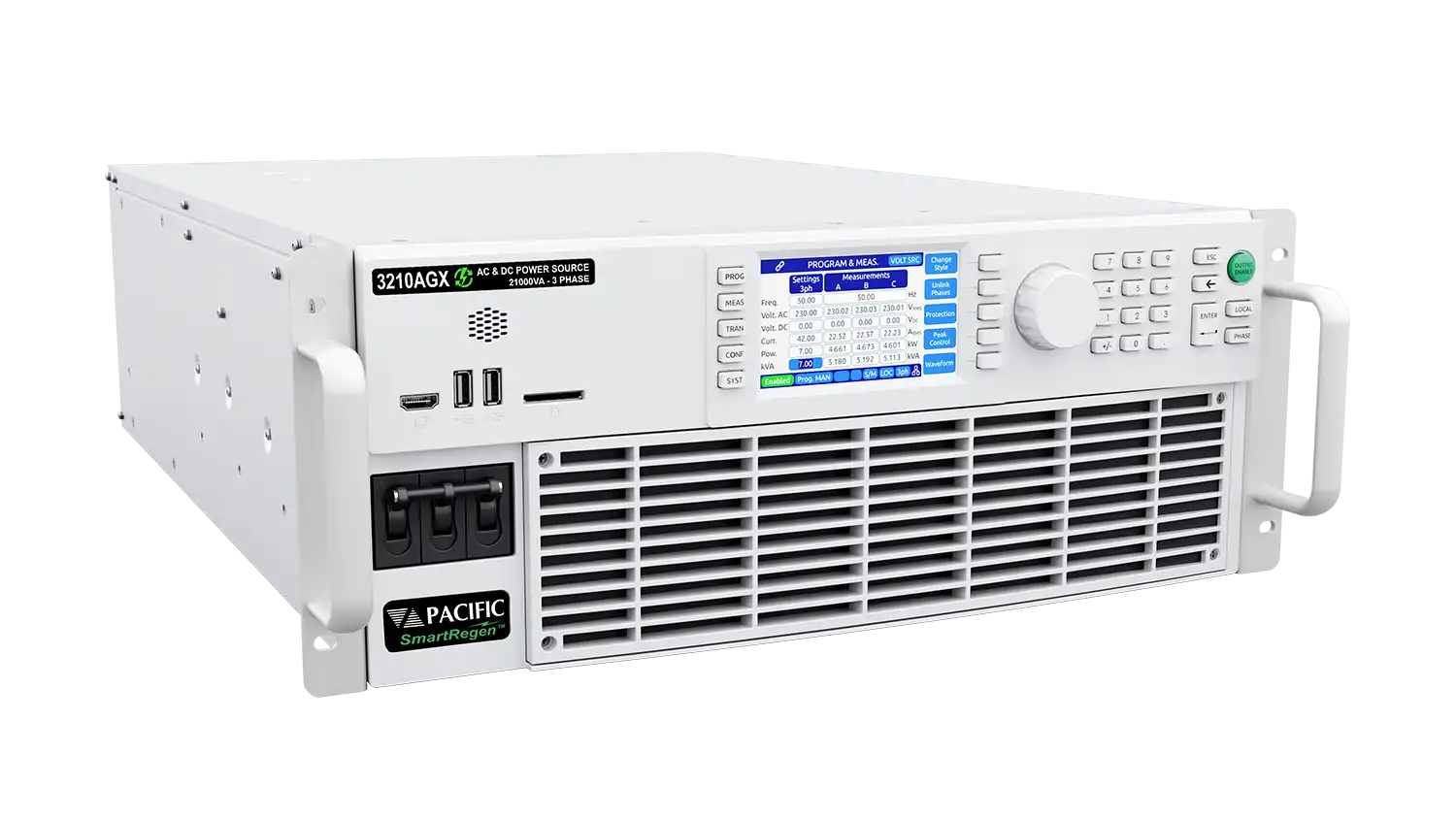

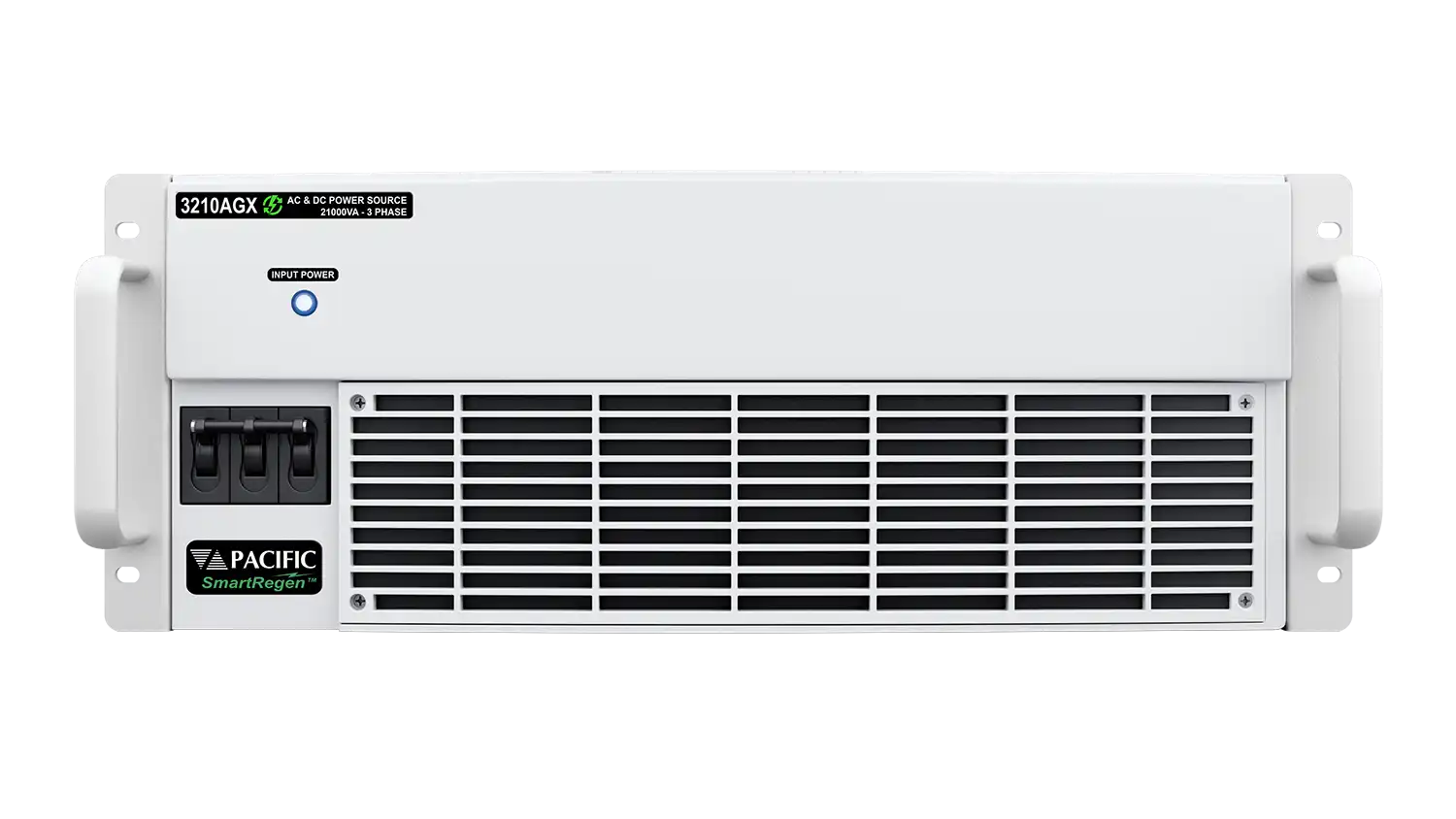

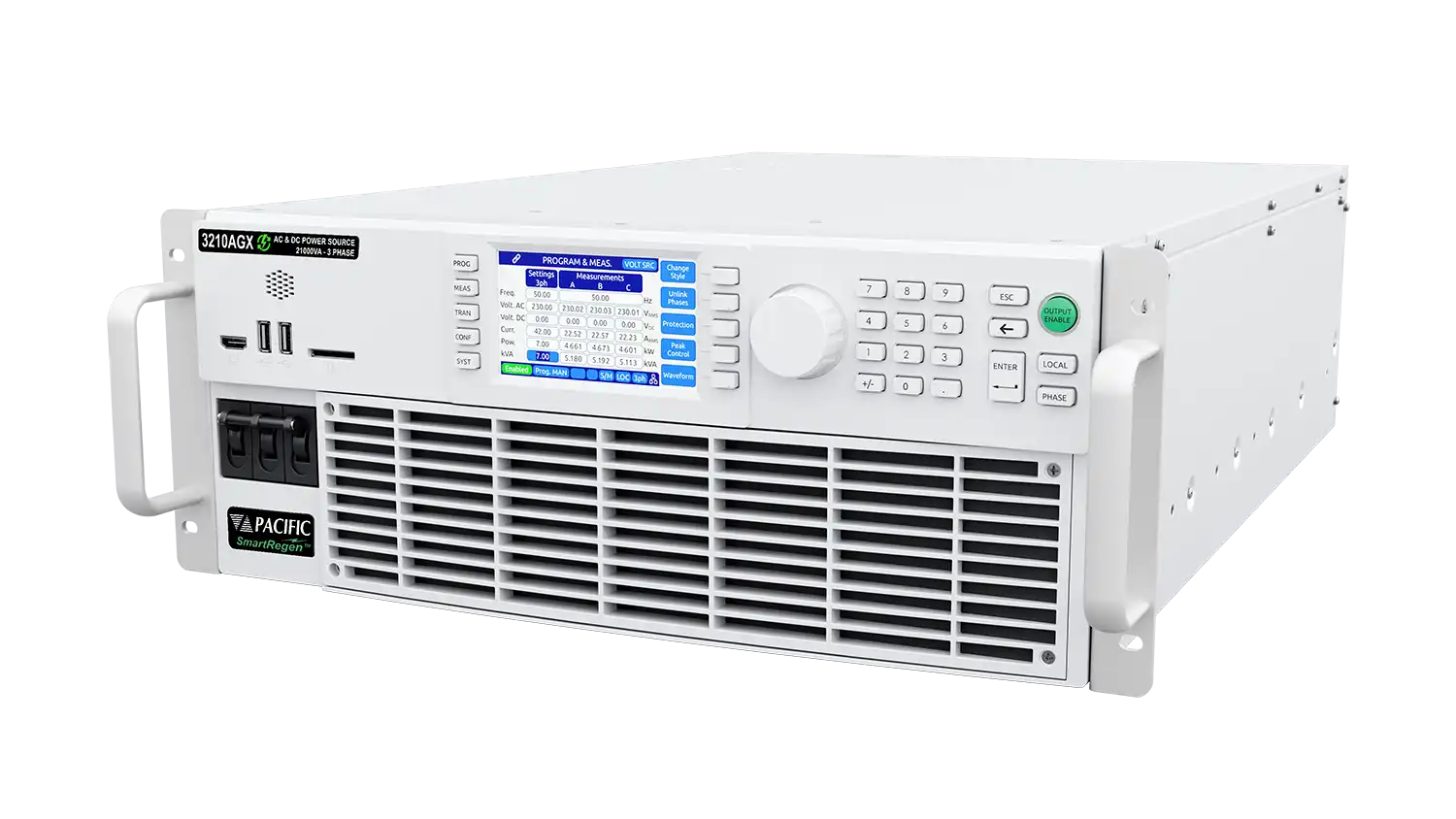

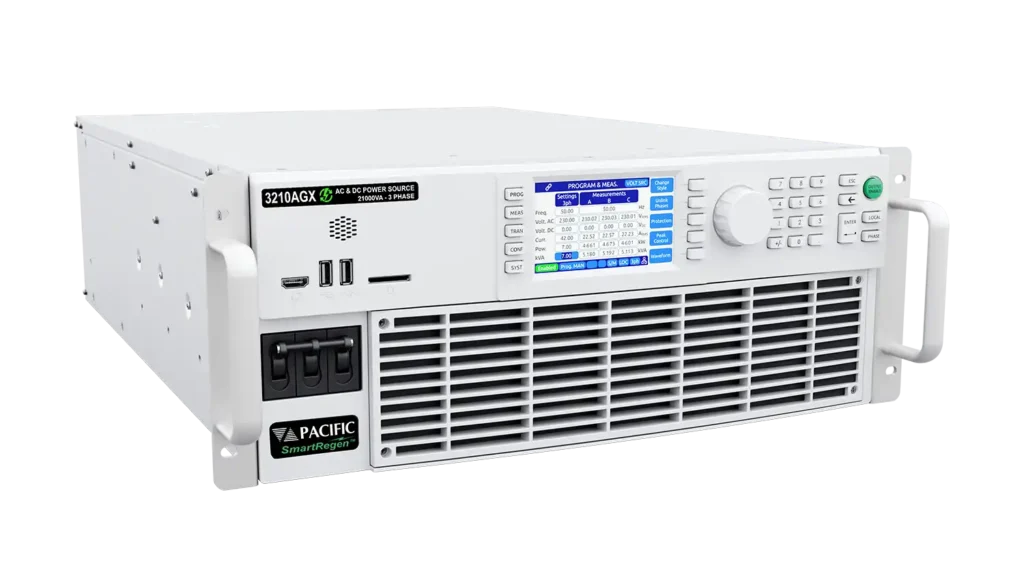

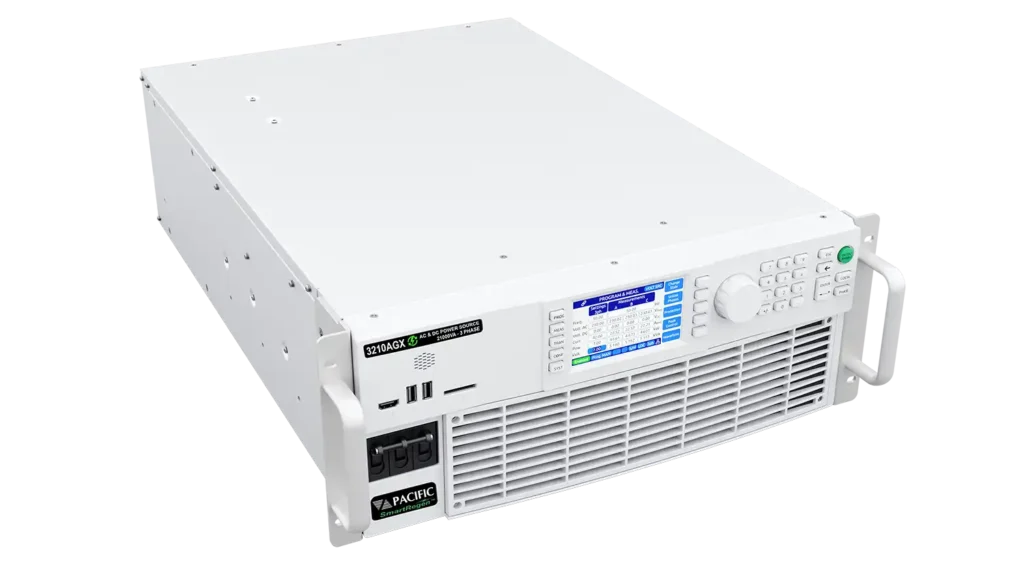

The AGX Series is a high-power-density AC & DC Power Source, delivering 6–24kVA in 4U with scalability up to 1.296MVA. This “All-in-One” capable test system functions as an AC/DC power source, current source, power supply, and optional load. With AC, DC, AC+DC, and DC+AC modes plus extended high frequencies to 3000Hz, the AGX provides flexible, intelligent performance with over 90% energy efficiency.
Why Choose AGX Series

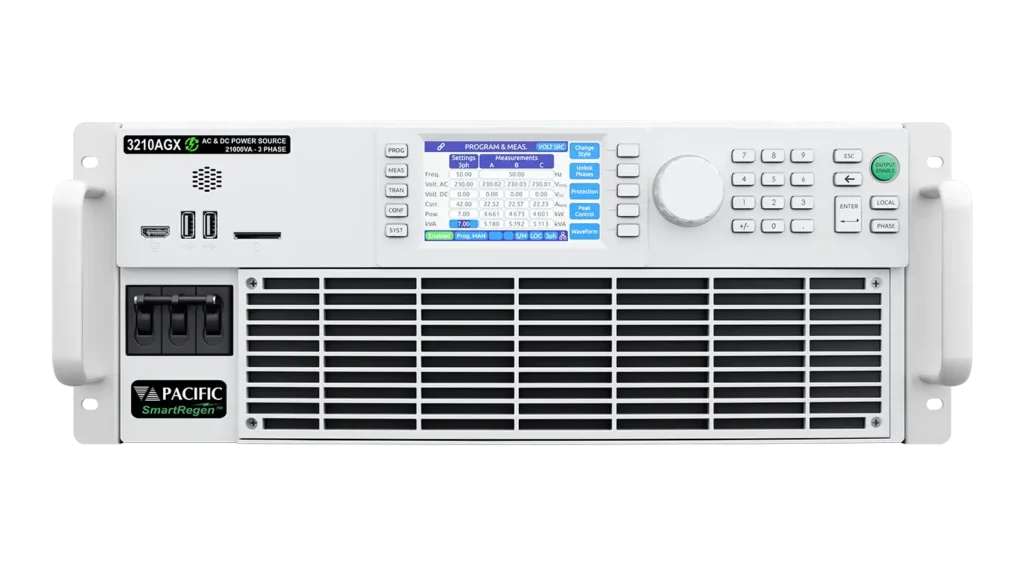

Compact 4U Design. Big Power. Up to 1.296MVA
High Frequency, AC & DC Power Source, Current Source with Load option

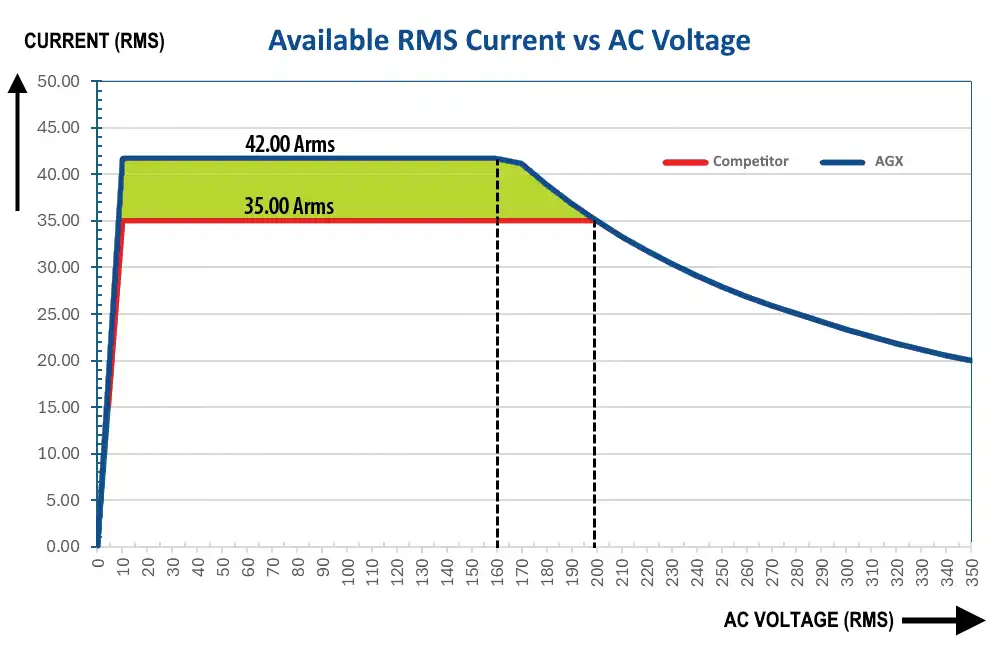

Get 37% more current over competitors at lower voltage
AC, DC, AC+DC, DC+AC, and 6-form configurations for multi-channel capability
Key Specifications
- Single, Split, Three-Phase

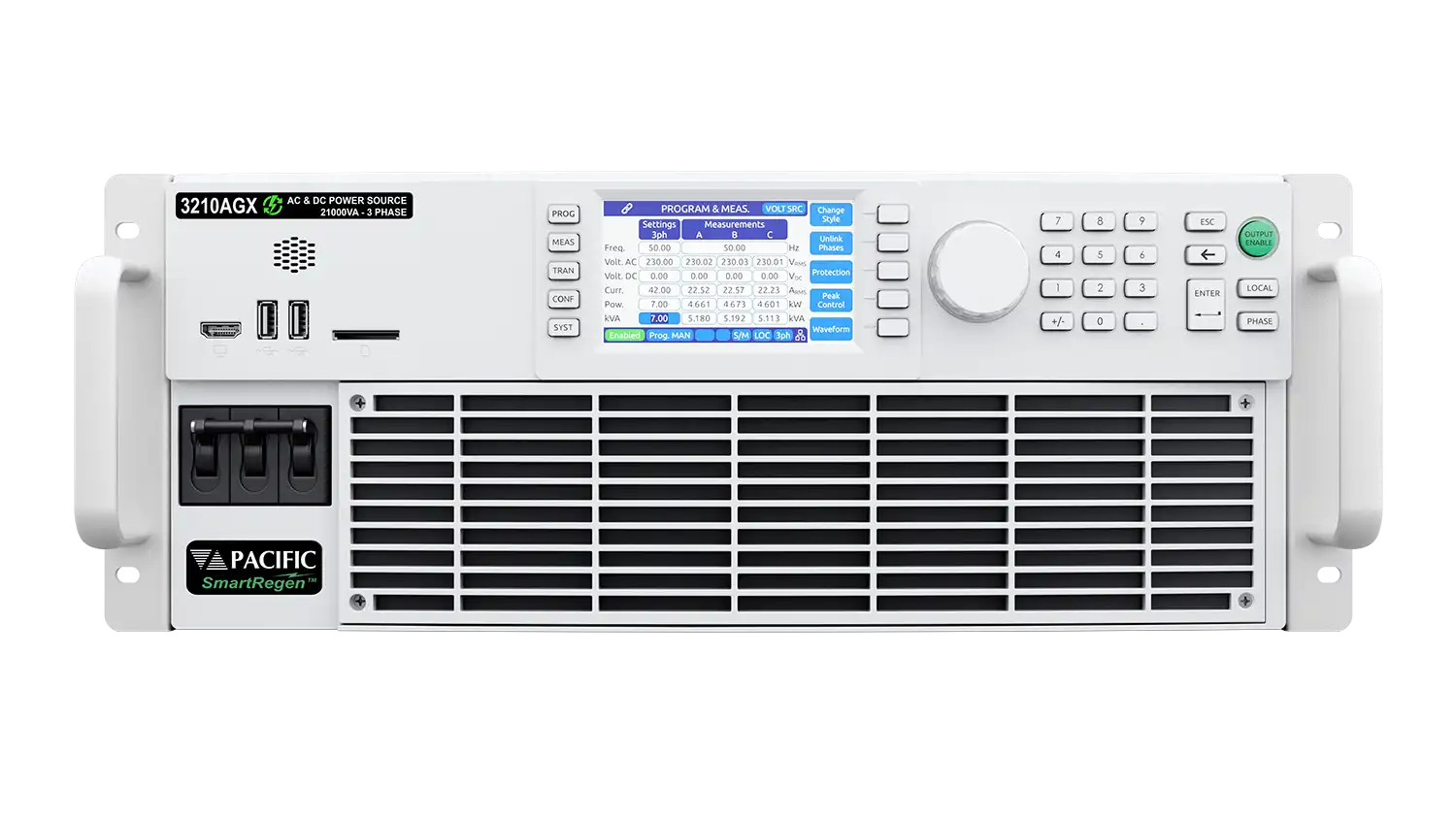

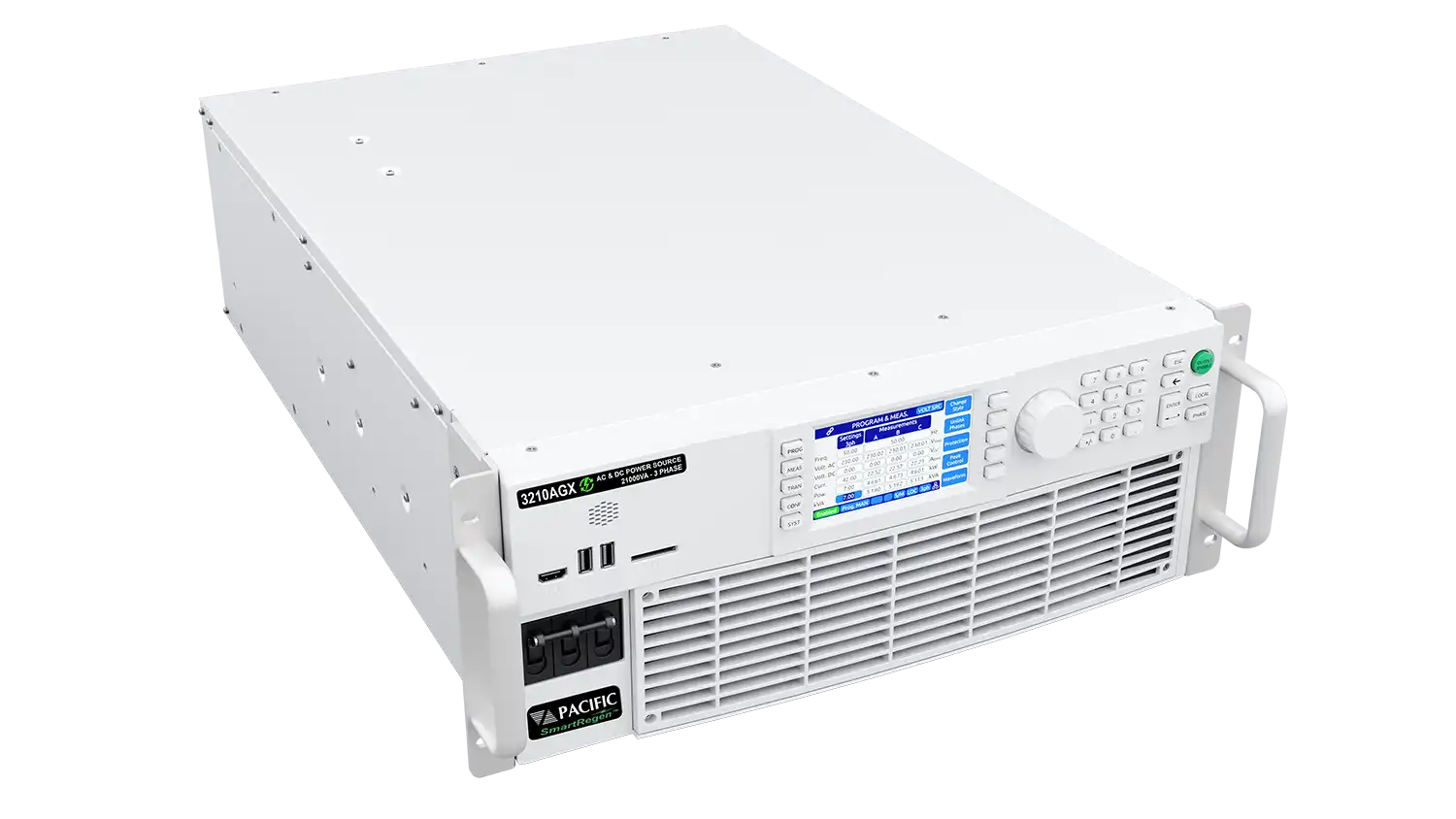

- Modular, scalable power 6kVA up to 24kVA in 4U

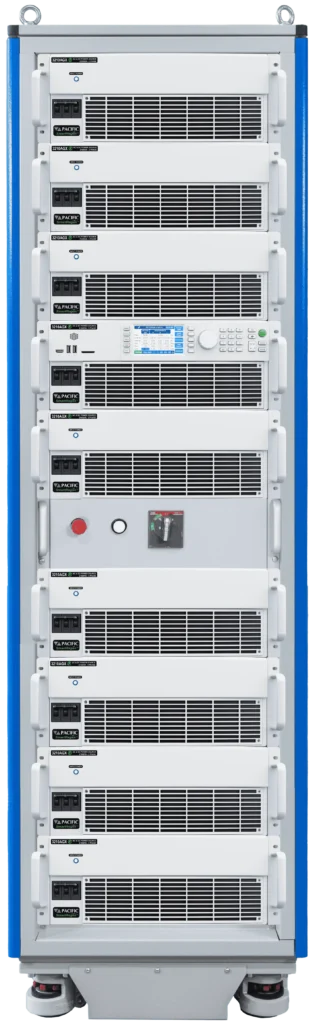

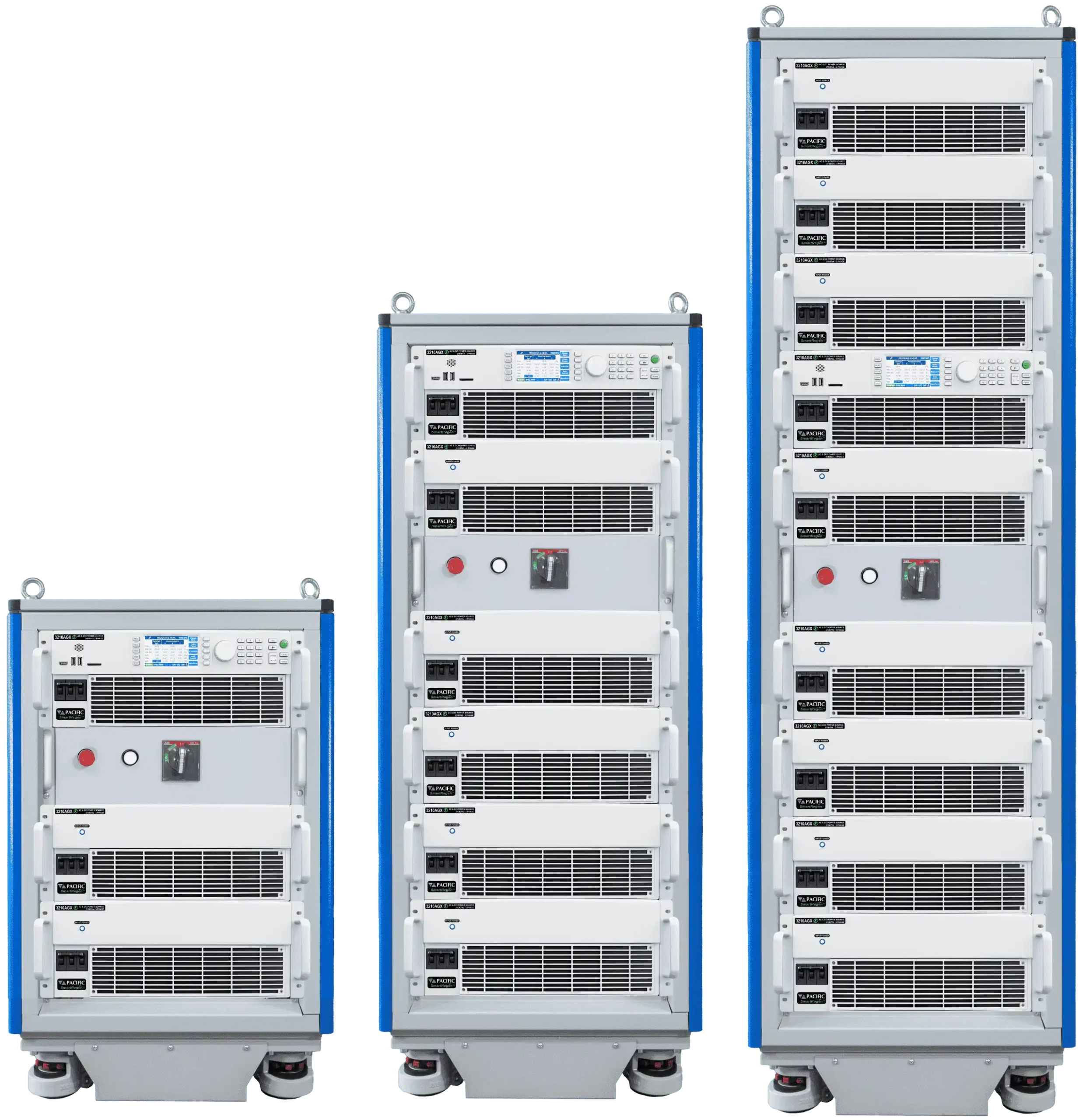

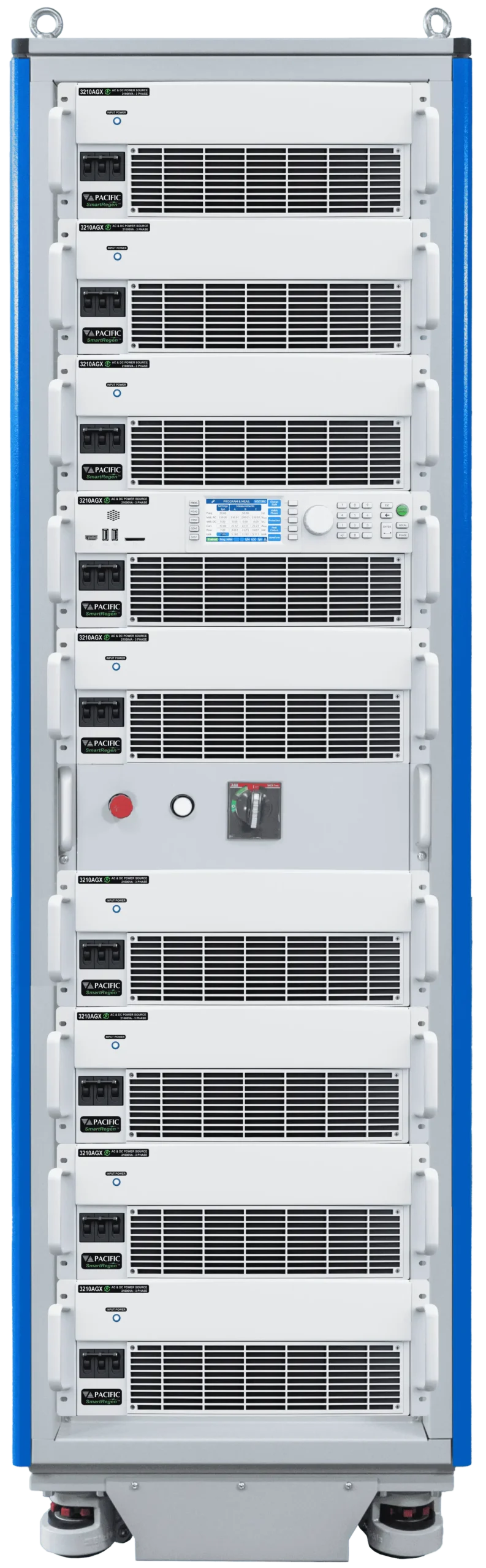

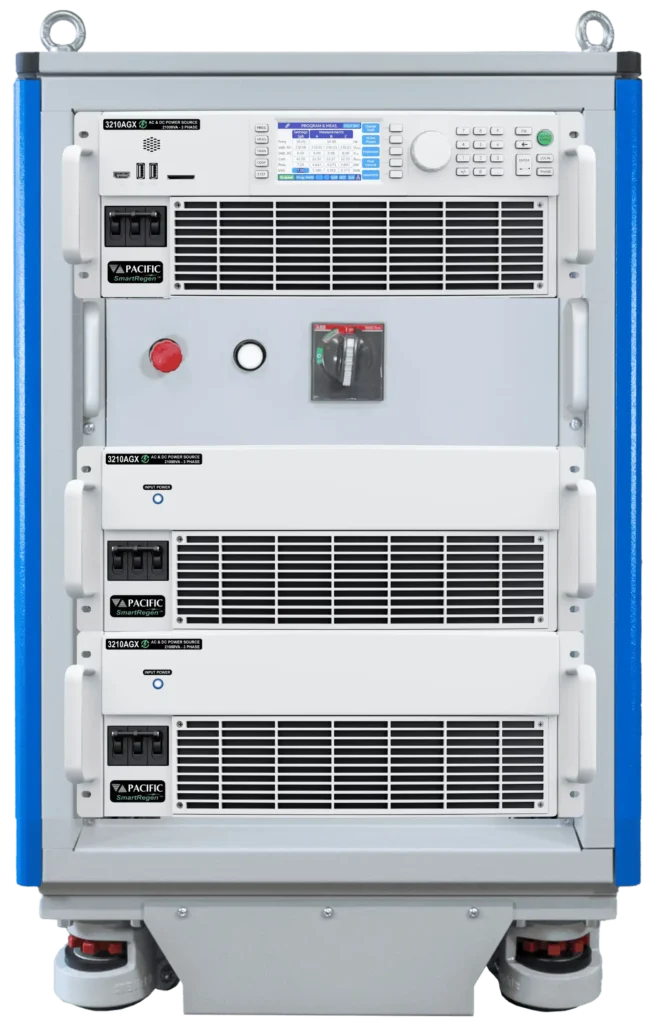

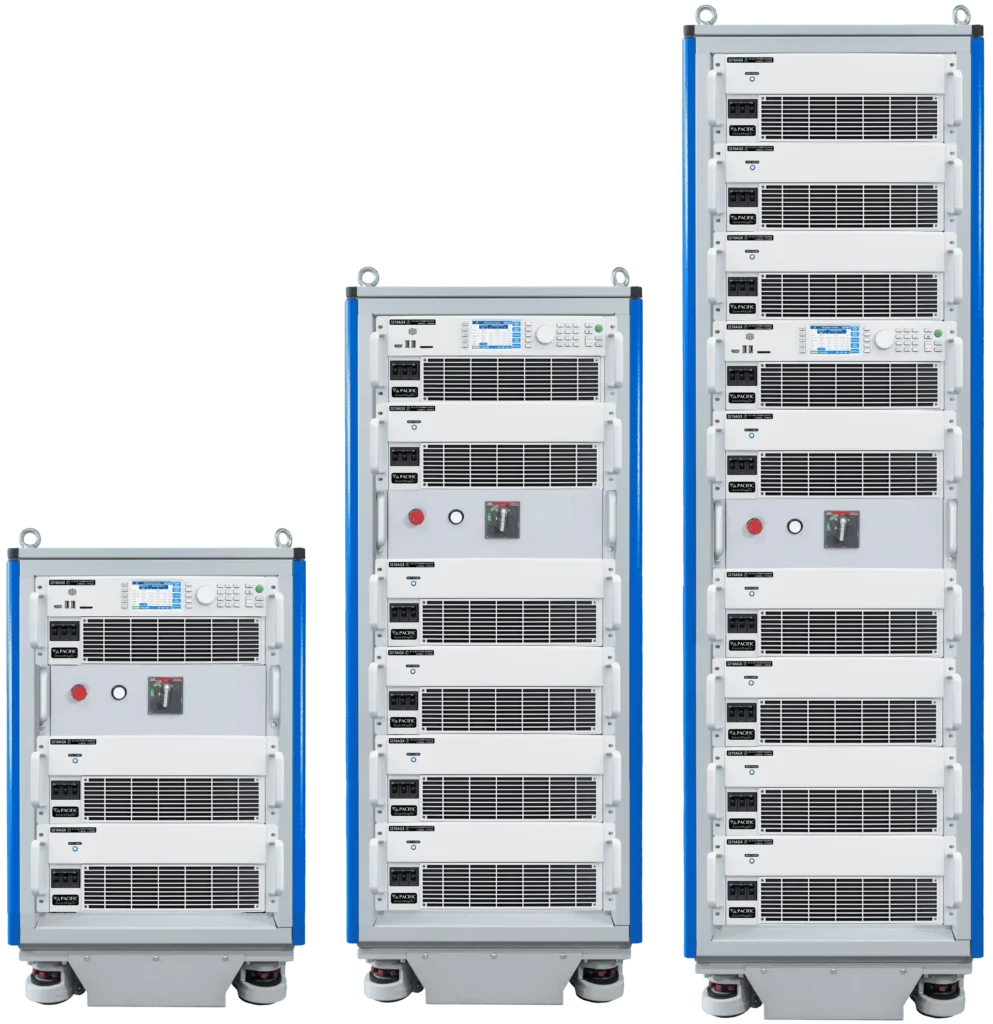

- Up to 216kVA in a single 19″ cabinet
- Dual cabinets in parallel up to 432kV
- Three-Phase High Power Systems up to 756kVA
- Constant Power Voltage Range: 350Vac L-N/606Vac L-L or ±500Vdc
- 15Hz-1200Hz; Extended Mode 1–3,000Hz
- AC/DC Voltage Source & Current Source mode
- AC, DC, AC+DC, DC+AC output capability
- Flexible Multi-Channel 6 Form Configuration
- Regenerative Power Over 90%
- Full Galvanic Isolation protects users and units under test
- Precision True-RMS metering
- Advanced waveform capture & scope function
- Programmable Output Impedance Real-Time & RMS modes (R+L); Resistive -10 to +10Ohm, Inductive 0 to 2mH
- Sine, Square, Triangle, THD and Arbitrary waveforms
- 3 Phase AC input with Active PFC
- 200 programs for transient testing (List, Pulse, Step Modes)
- Harmonic measurement for voltage and current on all phases
- 380V-480V 3 Phase AC input with Active PFC
- Precision Voltage Programming – 0.02% with Continuous Self Calibration (CSC)
- Load Mode Option: Constant Current (CC), Constant Resistive (CR), Constant Power (CP)
- RS-232, USB, Modbus, TCP, GPIB, SCPI compatibility; IVI Instrument Drivers

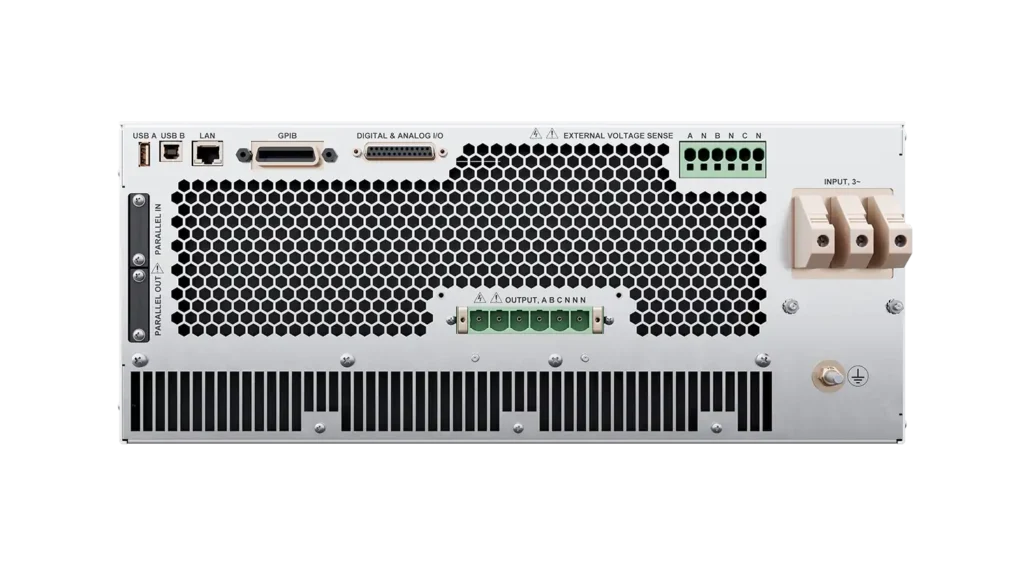

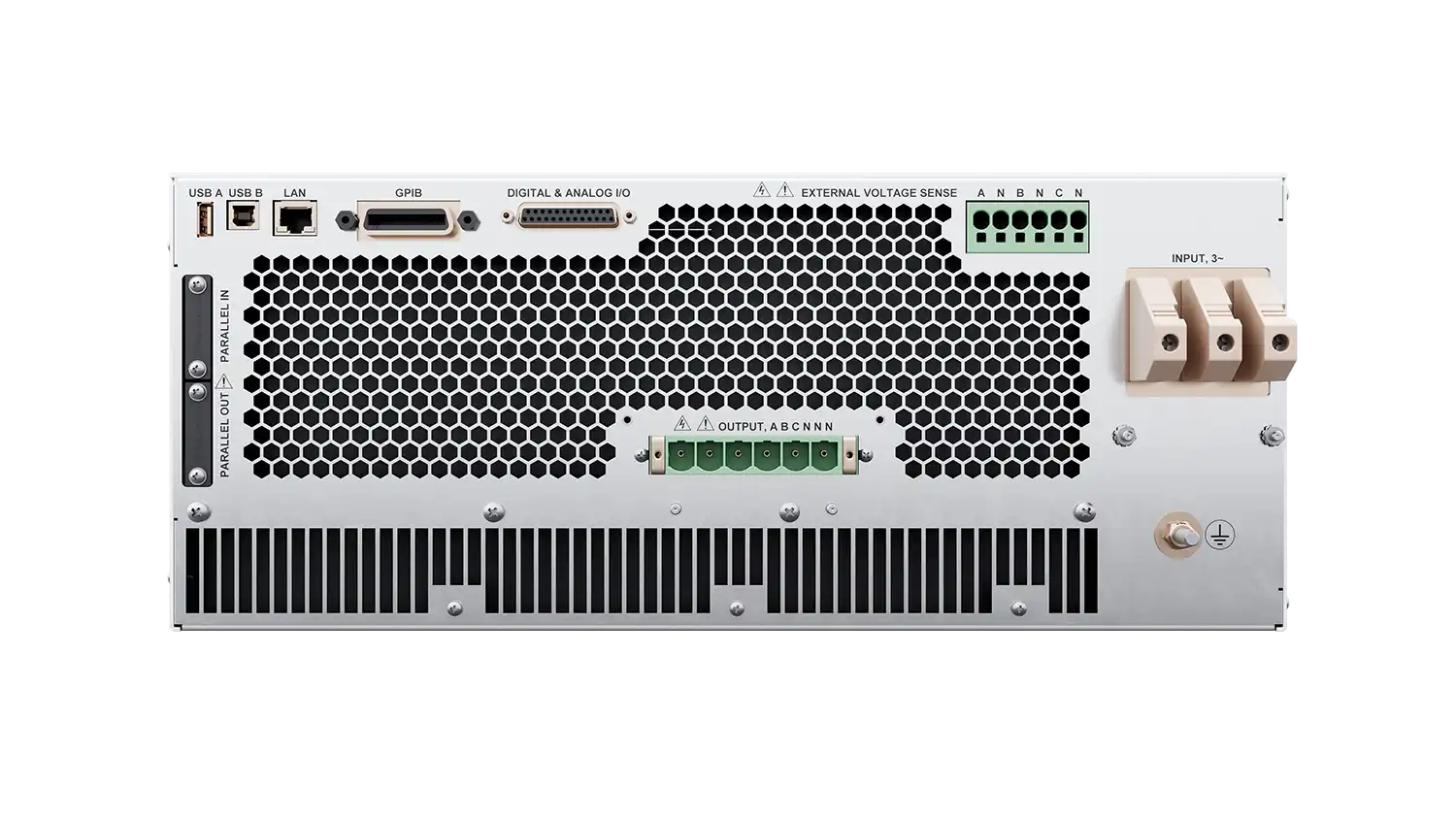

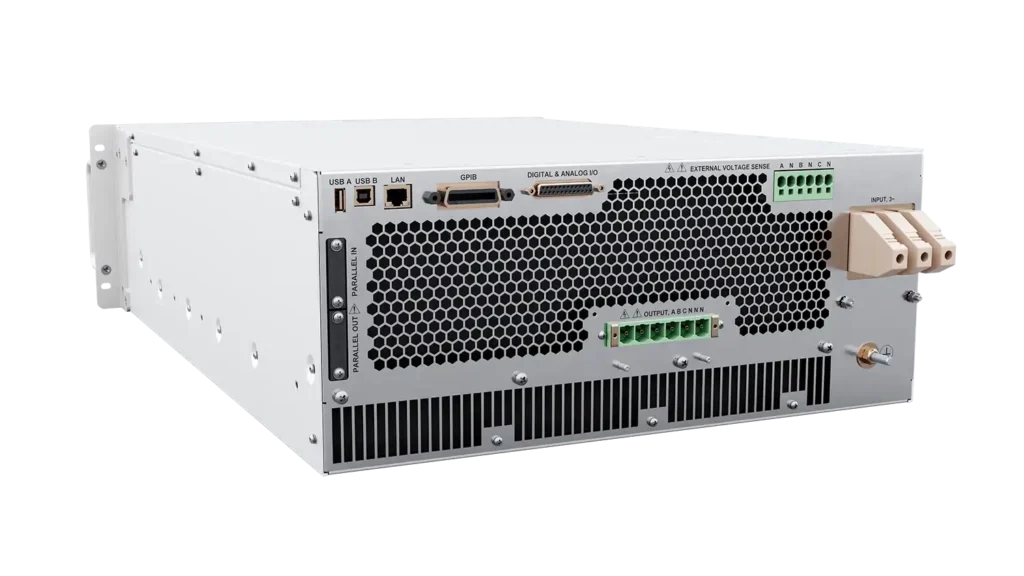

- Extensive Analog and Digital I/O for system integration
- CE (EMC/Safety) Marked
- Built-In SmartSource Suite Remote Control Platform
High Power Density with the Highest Performance

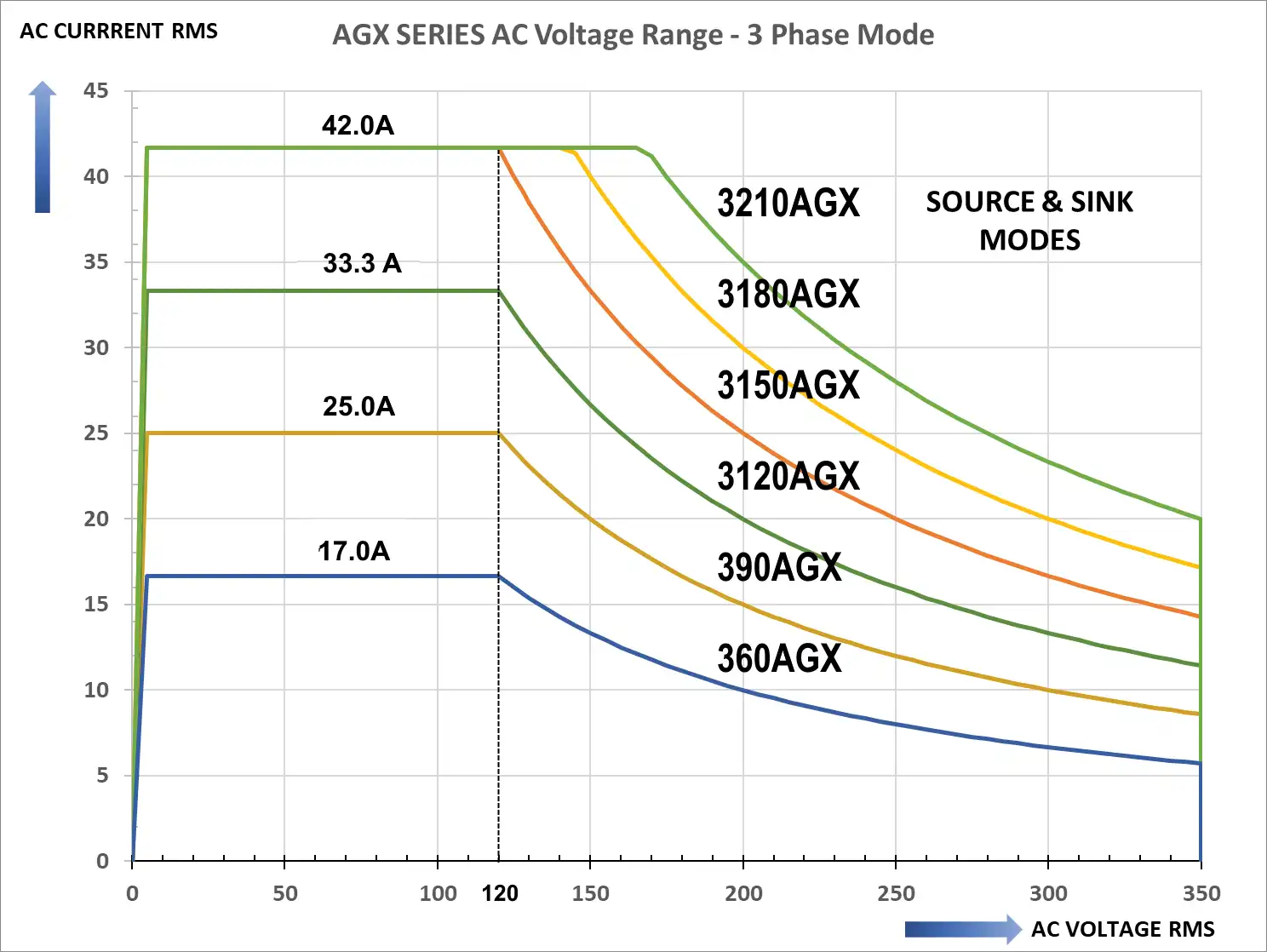

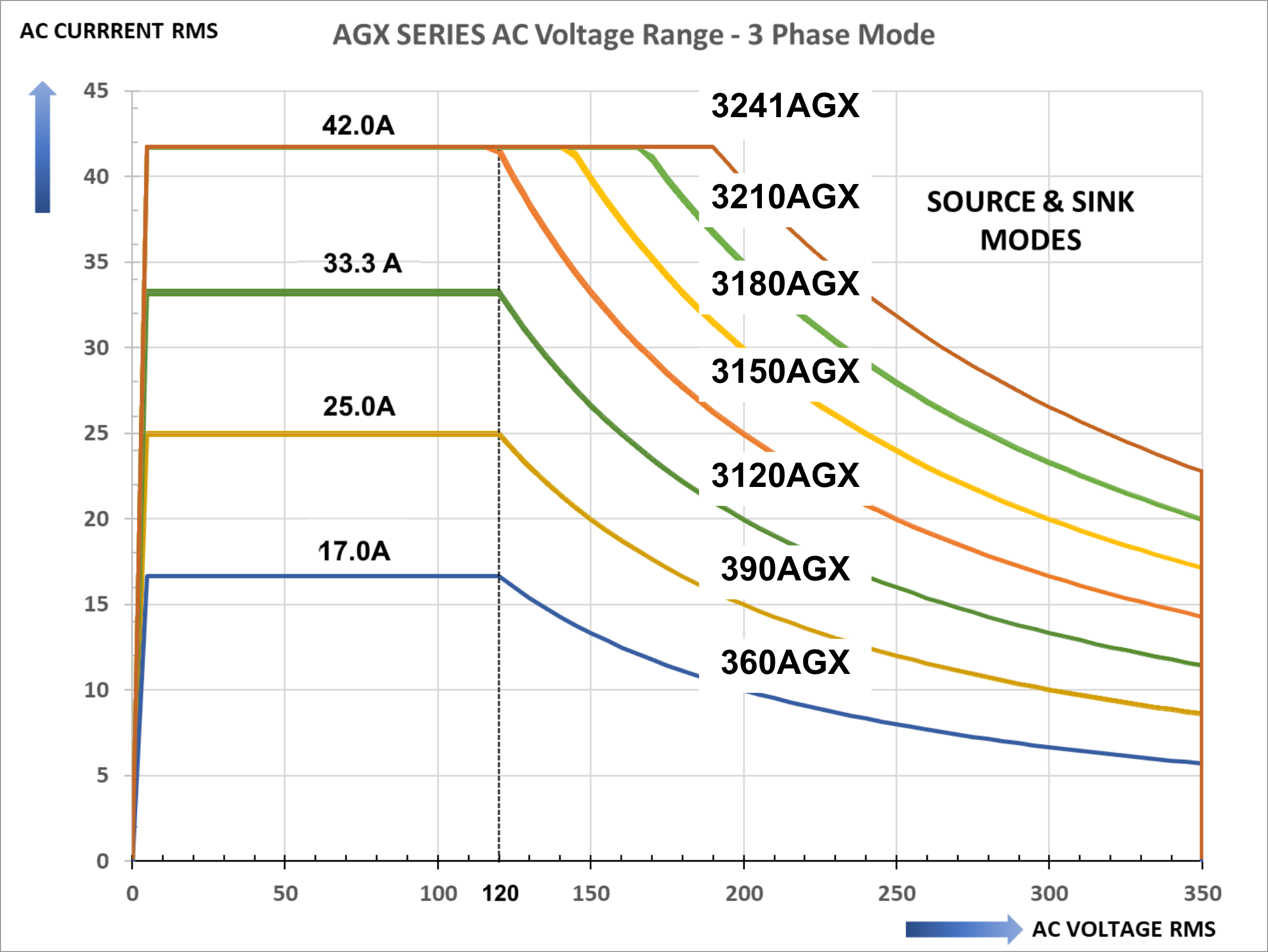

The constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminating the need to switch between voltage ranges. This prevents potential disruptions in output power.
- Wide operating envelope
- More current at lower voltage
- Test broad range of power
- Seamless transition of output power

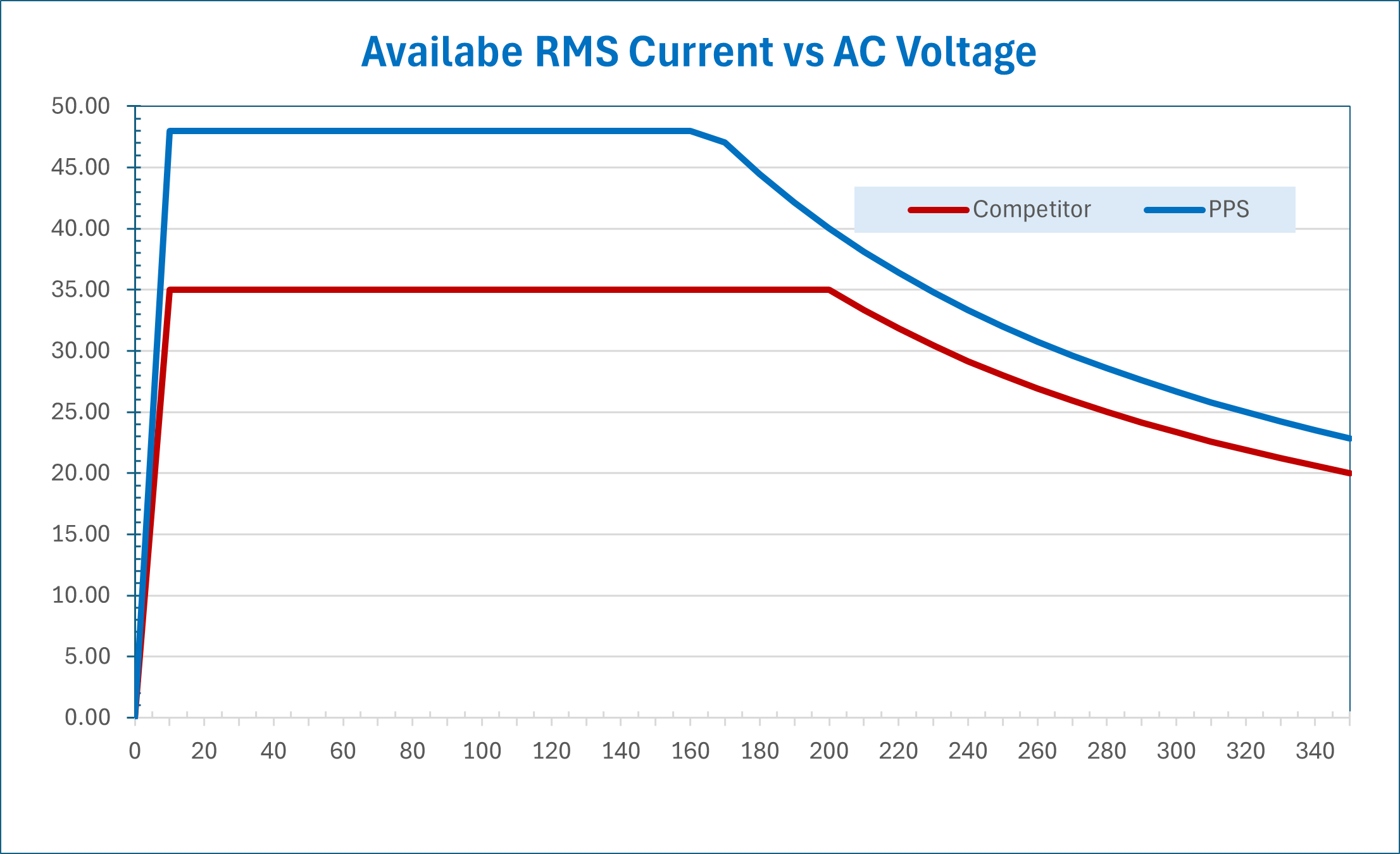

The AGX Regenerative AC/DC Power Source features an expanded current capability, ensuring proper sizing without overspending on larger systems. This efficiency reduces overall capital costs. Compared to a standard 35A/phase unit, the AGX delivers up to 37% more current at lower voltage range, as illustrated in the diagram. Get up to 48A from 45Hz to 200Hz.
- More current at lower voltage
- No over or undersizing the power source
- Reduce the need for additional capital
- AGX Series also has 130% overload capablity for 2s
Simultaneous AC and DC operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC, AC+DC, DC+AC output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC.
- AC, DC, AC+DC, DC+AC configurations
- Simultaneously test AC and DC, Source or Load on separate phases
- Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.
Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device.
- Access on any web browser in real-time
- Enhanced visualization and reporting tools
- View and control on multiple windows
- Save time and increase productivity
| Model | Rated Power (VA) | Output Form | Voltage Ranges (VAC/VDC1) | Current 2 (AAc/ADC2) | Rack Height | |||
|---|---|---|---|---|---|---|---|---|
| 360AGX | 6kVA/kW | 1,2,3 Ø | 350 (L-N)/ ±500 | 17.0 / 17.0 | 4U | |||
| 390AGX | 9kVA/kW | 1,2,3 Ø | 350 (L-N)/ ±500 | 25.0 / 21.0 | 4U | |||
| 3120AGX | 12kVA/kW | 1,2,3 Ø | 350 (L-N)/ ±500 | 34.0 / 21.0 | 4U | |||
| 3150AGX | 15kVA/kW | 1,2,3 Ø | 350 (L-N)/ ±500 | 48.0 / 21.0 * | 4U | |||
| 3180AGX | 18kVA/kW | 1,2,3 Ø | 350 (L-N)/ ±500 | 48.0 / 21.0 * | 4U | |||
| 3210AGX | 21kVA/kW | 1,2,3 Ø | 350 (L-N)/ ±500 | 48.0 / 21.0 * | 4U | |||
| 3241AGX | 24kVA/kW | 1,2,3 Ø | 350 (L-N)/ ±500 | 48.0 / 21.0 * | 4U |
Notes
- *RMS current up to 48A per phase (45Hz to 200Hz);
- Above 200Hz – up to 42.0 Arms / 21.0 Adc per phase in 3 & 2 Phase Mode, and 126 Arms / 63.0Adc in 1 Phase Mode.
| Model | Rated Power (VA) | Output Form | Voltage Ranges (VAC/VDC1) | Current 2 (AAc/ADC2) | Rack Height | |
|---|---|---|---|---|---|---|

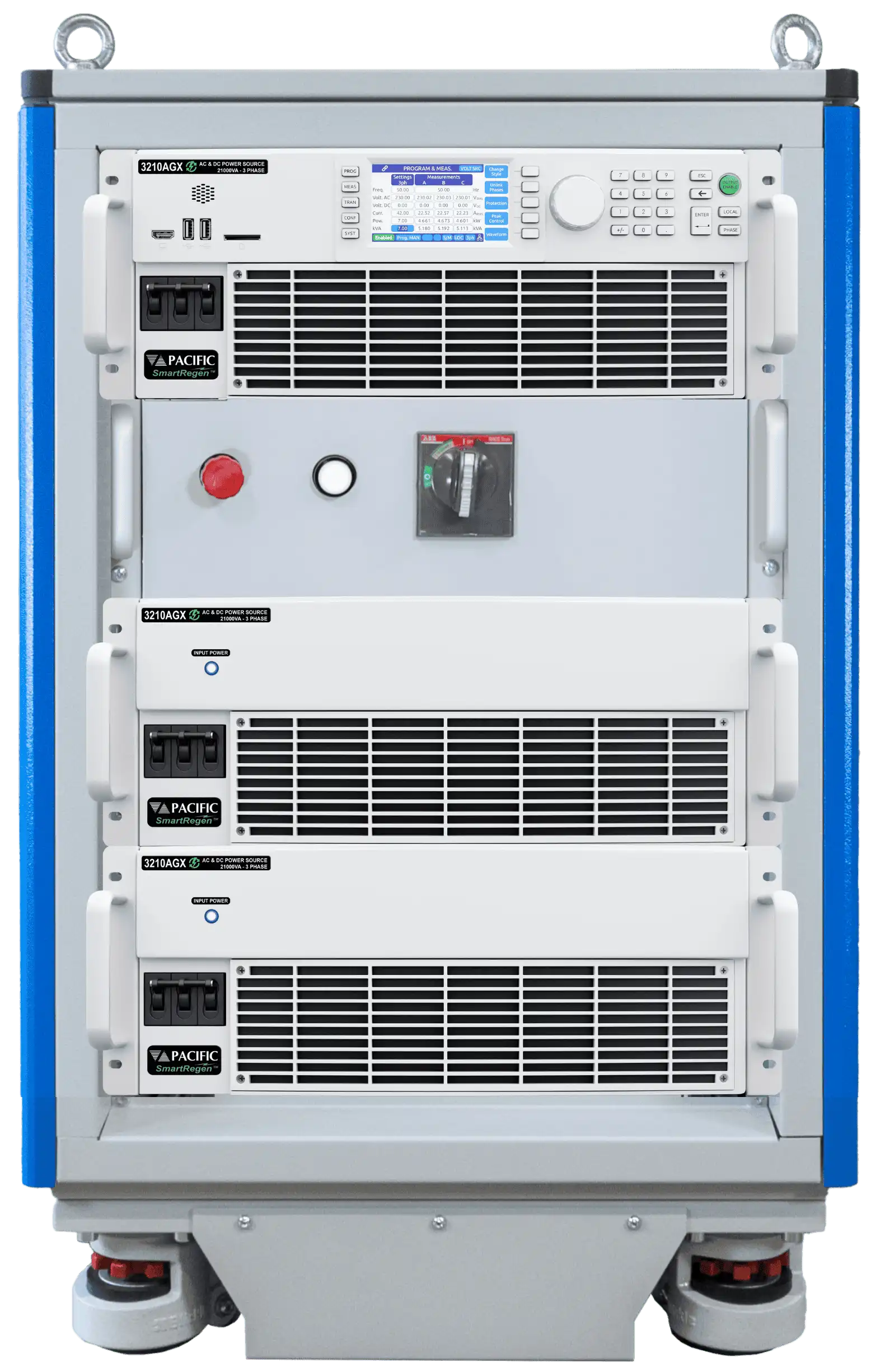

| 3300AGX-4UC | 30kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 84.0 / 42.0 | 18U | |
| 3360AGX-4UC | 36kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 84.0 / 42.0 | 18U | |
| 3481AGX-4UC | 48kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 96.0 / 42.0 | 18U | |
| 3630AGX-4UC | 63kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 126.0 / 63.0 | 18U | |
| 3721AGX-4UC | 72kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 144.0 / 63.0 | 18U | |

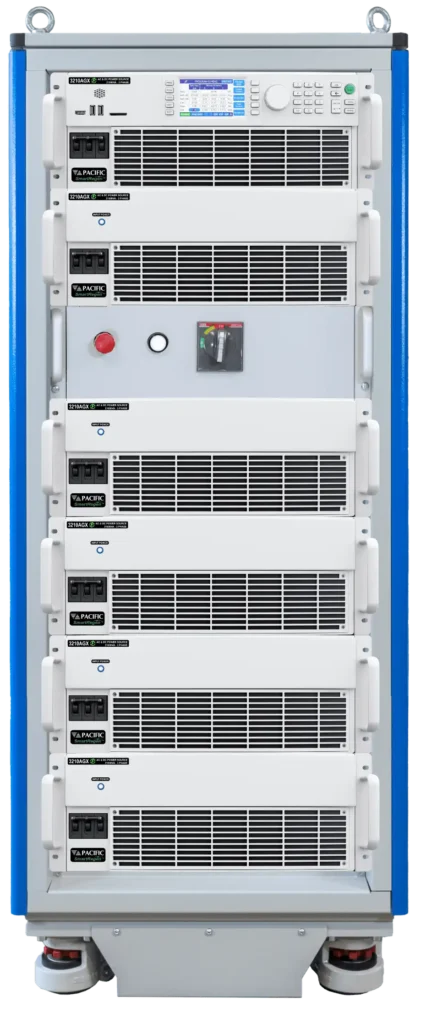

| 3961AGX-4UC | 96kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 192.0 / 84.0 | 32U | |
| 31050AGX-4UC | 105kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 210.0 / 105.0 | 32U | |
| 31201AGX-4UC | 120kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 240.0 / 105.0 | 32U | |
| 31441AGX-4UC | 144kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 288.0 / 126.0 | 32U | |
| 31681AGX-4UC | 168kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 336.0 / 147.0 | 42U | |
| 31921AGX-4UC | 192kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 384.0 / 168.0 | 42U | |
| 32161AGX-4UC | 216kVA/kW | 2,3 Ø | 350 (L-N)/ ±500 | 432.0 / 189.0 | 42U |
Notes
- Current values shown are per phase for 2 or 3 phase mode. In 1 phase, current would be times 3.
- Note 1: Rated power shown is for Three Phase or Single Phase mode operation. For Split Phase mode, rated power is 2/3.
- Note 2: For Voltages above 350Vac some frequency and Vthd restrictions apply.
- Note 3: Above 200Hz max current derates.
- Additional Information:
- Paralled systems up to 432kVA/kW.
- Three-Phase high power system configurations available up to 1.296 MVA/MW; Contact Factory for details.
- Legacy model numbers are still available for ordering.
- Contact factory for cabinet output wiring modifications to support single phase AC mode on cabinets above 84kVA.
