Single-Phase AC Power Source, 10 to 45kVA
Single-Phase AC Power Source, 10 to 45kVA

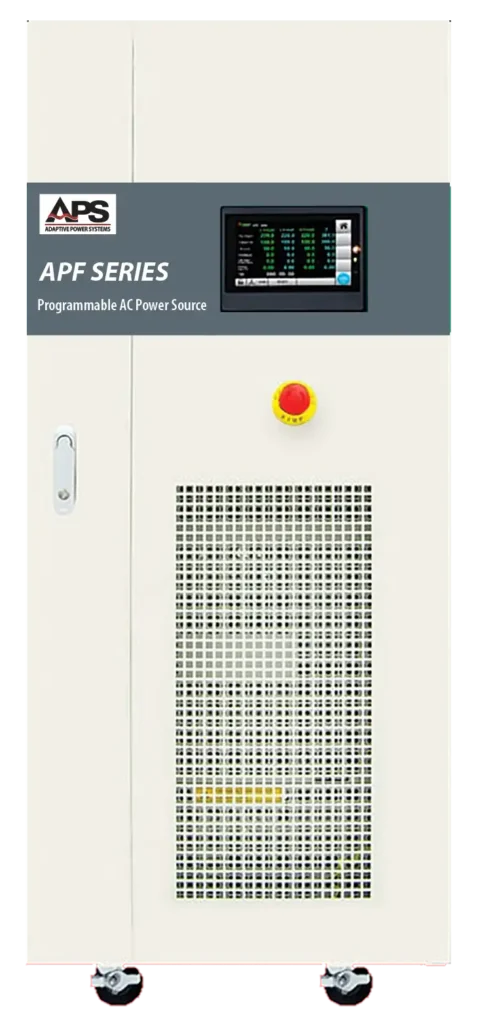

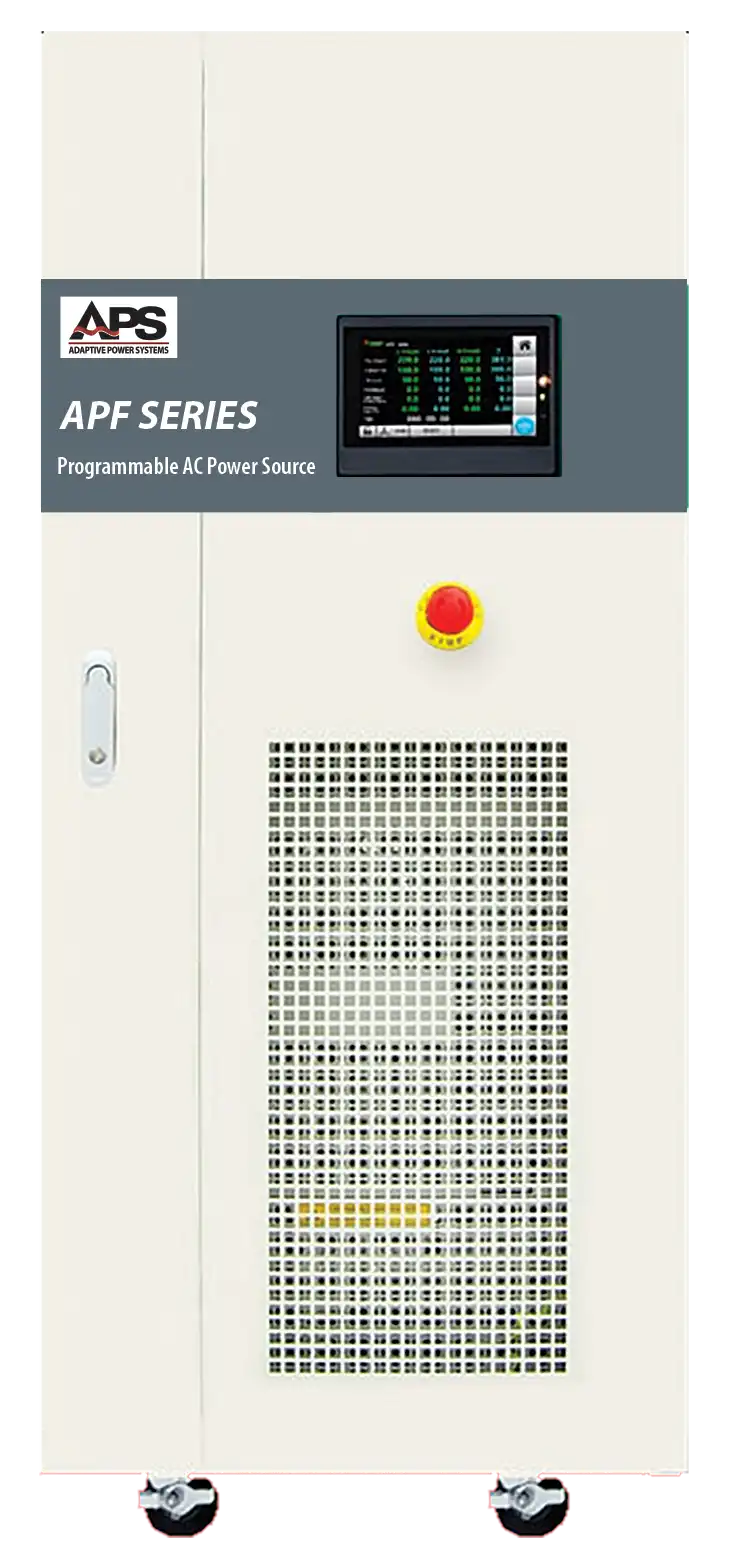

The Adaptive Power Systems APF1000 Series is a single-phase ac power source that provides a practical, reliable, and easy to use solution without complexity.
Ideal for programmable high-power testing and simulation applications, the APF Series provides clean, stable power with low harmonic distortion (THD ≤ 0.5%) and precise output regulation (≤ 0.5%), ensuring accuracy in the most demanding environments.
Why Choose APF1000 Series
THD ≤ 0.5% and precise voltage/frequency regulation (≤ 0.5%)
Up to 600V L-N and 840 Hz for aerospace, motor, and industrial testing
User-friendly interface with 7" color touch screen and straightforward to use
Protection limits, optional 200% overload capability, and CE/RoHS compliant
Key Specifications
- AC output
- 0-155V, 0-310V Output or 400V or 600V optional
- Available 45-120Hz Std, 45-500Hz or 300-840Hz Frequency ranges
- High Crest Factor and Peak Current Capability ≥ 3:1
- Low Voltage Distortion (THD): ≤ 0.5%
- Precise Output Regulation: ≤ 0.5%
- Color Touch Screen Front Panel Controls

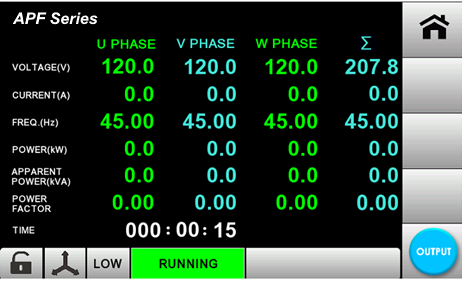

- Measurement of Frequency, Voltage, Current, Power, VA and PF
- Up to 200% overload capability (optional)

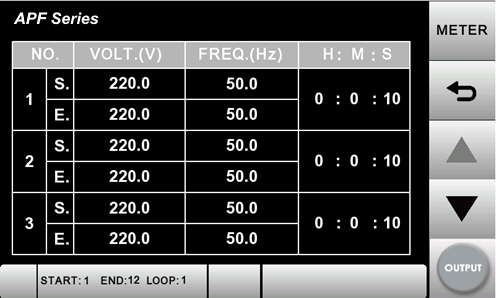

- Simulate power line disturbances using built-in STEP and RAMP functions.
- Comprehensive Under/Over Protections: UVP, OVP, OCP, OTP
- 29 Additional Safety Features: Protects the power source & DUT

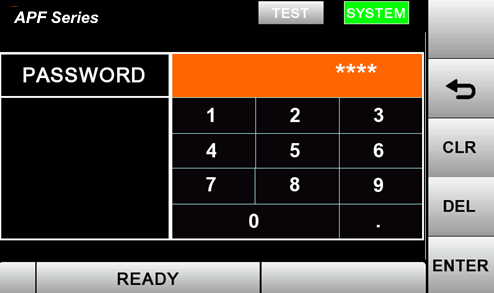

- Screen Lock Password Function: Restrict unauthorized access to critical settings
- RS232, RS485, RS422, LAN std. Optional USB or GPIB
- CE and RoHS Certified: Meets international safety and environmental standards.
Designed for Performance, Reliability & Precision

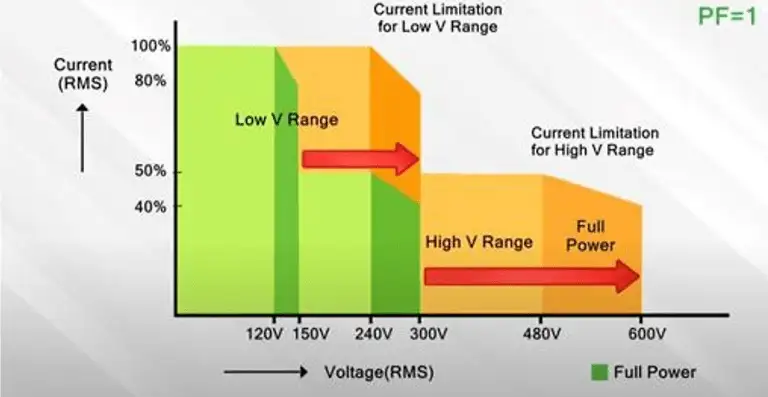

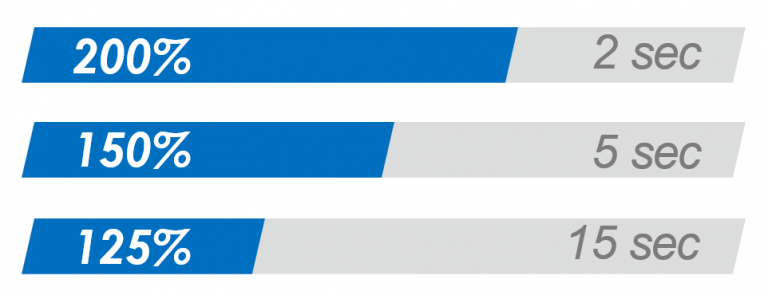

An inductive UUT (Unit under Test), such as motor or water pump, can generate significant inrush current when activated. The APF Series has optional overload capability that can support this inrush current as needed.
Extend Frequency Option to 840Hz
Optional frequency from 300 to 840Hz ideal for aerospace and defense or used for double frequency test of a transformer.
Higher Output Voltages (Option V400 or V600)
For applications requiring more than 310V L-N, one of two higher voltage options can be specified at time of order, 400V L-N (V400) or 600V L-N (V600). Ideal for applications tha require higher input voltage like motors.
| Model | Rated Power (VA) | Output Form | Frequency Range (HZ) | Output Voltage Max (RMS) | Output Amps (RMS) | Input Power | Dimensions (HxDxW) | |
|---|---|---|---|---|---|---|---|---|
| APF1010 | 10kVA | 1Ø | A: 45-500 / B: 45-120 / C: 300-860 | 155/310 | 83/41.7 | 208 or 480, 3Ø | 41.2"×24.7"×33" | |
| APF1020 | 20kVA | 1Ø | A: 45-500 / B: 45-120 / C: 300-860 | 155/310 | 166.7/83.3 | 208 or 480, 3Ø | 56.7"×24.7"×33" | |
| APF1045 | 45kVA | 1Ø | A: 45-500 / B: 45-120 / C: 300-860 | 155/310 | 375/187.5 | 208 or 480, 3Ø | 64.8"×32.6"×33" |
- * Option 600 replaces 150/300V ranges with 300/600V
| Title | Document Type |
|---|---|
APF1000 Series – Single Phase High Power Programmable AC Source Datasheet
|
Datasheet |
APF1000 and APF3000 AC Power Source Manual
|
Manual |
