Pulsed AC Current Source, up to 1MVA
Pulsed AC Current Source, up to 1MVA

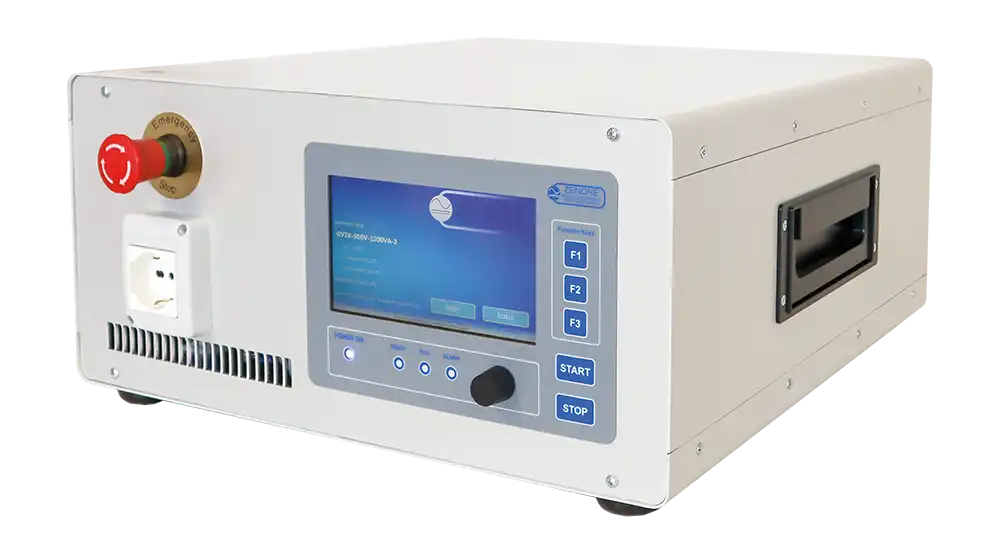

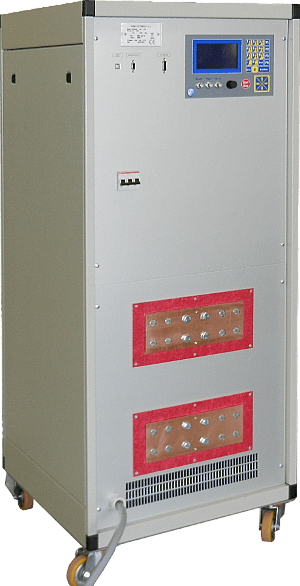

The GI-IS Series pulsed AC current generators (900A–40kA, up to 300kVA) deliver stable, sinusoidal or arbitrary waveforms with flexible current ranges. Easy to control, they support remote interfaces, analog amplification, and digital I/Os for lab or production use. Built-in sequencer and timer enable precise circuit breaker and switch testing, and continuous current up to 1/3 Imax. Ideal for testing circuit breakers, thermal/magnetic evaluation of contacts, coils, and transformers.
Why Choose GI-IS Series
Designed for pulsed current applications like circuit breaker testing at high power, wide current 900A to 40kA, up to 300kVA
Supports sinusoidal and arbitrary currents with up to three selectable ranges
User-friendly, Built-in sequencer and timer measure trip times up to 1ms, ideal for circuit breaker tests
Remote control (RS232/RS485, optional USB/LAN/fiber), analog inputs, and digital I/Os for lab and production automation
Key Specifications
- Pulsed Current from 900A to 40kA
- Output Power from 5kVA to 300kVA
- Output Frequency: 40-200Hz
- Single and Three-Phase Systems
- Parallel up to 1MVA /100kA
- Pulse Mode Operation, max. duration 2 secs
- Up to 3 Output Current Ranges
- Integrated Timer and Sequencer with up to 30 steps
- Measurement of Trip Time for Fuse and CB test
- Ramp, Drop-out, Loop Modes
- Easy Maintenance and Calibration
- Access to PID Regulation Parameters
- Windows® Software GI-Manager
Pulse Mode AC Current Sources
Circuit breaker and switch testing, R&D and product validation, current amplification, automated production testing, custom waveforms, thermal/magnetic and heating tests, and instrument calibration.
- Circuit breaker testing – precise trip-time measurement and custom test sequences.
- R&D labs – research and development of electrical devices.
- Final product testing – quality control and compliance verification.
- Current amplification – using analog inputs to boost external signals.
- Manufacturing line integration – automated testing via digital I/Os.
- Custom waveform generation – sinusoidal or arbitrary current profiles for specialized tests.
- Thermal and magnetic tests of switches, breakers, relays or fuses with trip-time measurements
- Heating tests of electrical contacts
- Tests of coils and transformers
- Tests and calibration of measurement instruments

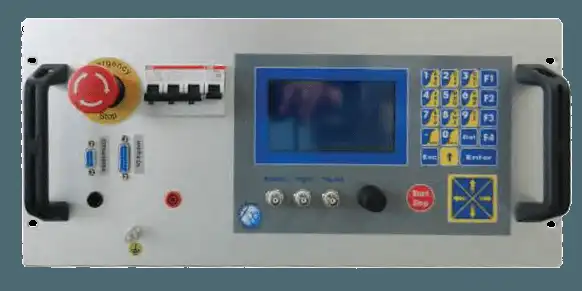

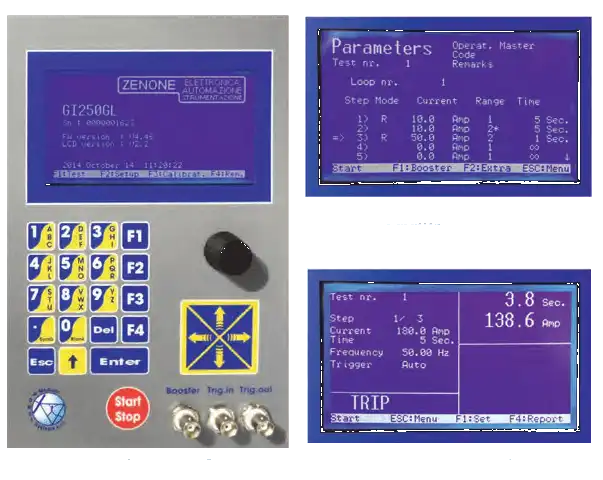

The GI-IS Series features a sealed, splash-proof membrane keypad and large backlit LCD for easy control and clear display of settings and results. Front-panel programming allows test sequences to be set and locked, with trip current and duration measured to millisecond resolution.
The optional GI-Software allows remote control of the GI-IS Series through various available interfaces. Test sequences can be created and saved for engineering or production use.
| Power Module | |
|---|---|
| 5kVA | |
| 7.5kVA | |
| 10kVA | |
| 15kVA | |
| 20kVA | |
| 30kVA | |
| 50kVA | |
| 75kVA | |
| 100kVA | |
| 150kVA | |
| 200kVA | |
| 300kVA |
| Current (Pulsed) | |
|---|---|
| 900A | |
| 1300A | |
| 2500A | |
| 3500A | |
| 5000A | |
| 6000A | |
| 8000A | |
| 10kA | |
| 20kA | |
| 30kA | |
| 40kA |
| Option | Description | |
|---|---|---|
| /M-GI-SW | Software including arbitrary waveforms for single phase unit | |
| /M3-GI-SW | Software including arbitrary waveforms for 3 phase system | |
| /PID | PID software, access to PID-regulation parameters | |
| /Rack | 19” Rack instead of cabinet (available up to 5kVA) | |
| /Rack-V | Rack for vertical built-in mounting (up to 5kVA) | |
| /3-Rack | 19” Rack with connections for 3 phase systems | |
| /LAN | LAN interface | |
| /ROUT | Rear output connections | |
| /FOUT | Front output connections | |
| /SOUT | Special output connections | |
| /ATE | Without Front panel control and display, for system integration | |
| /USB | USB interface | |
| /CONS | Separate control unit (3 meter / 10 ft cable) | |
| /F-I/O | Connections I/O and serial on front side | |
| /R-I/O | Connections I/O and serial on rear panel | |
| /F-ms | Main switch on front side | |
| /R-ms | Main switch on rear panel |
| Title | Document Type |
|---|---|
Zenone GI-IS Series Pulsed AC Current Source Datasheet
|
Datasheet |
Zenone GI-IS Series Pulsed AC Current Source Manual
|
Manual |
