M2000 Series
3U High Performance Power Analyzer
M2000 Series
3U High Performance Power Analyzer
The M2000 Series offers one- to four-channel precision power analyzers for AC and DC measurement. Using advanced digital signal processing, each modular unit supports up to four synchronized 24-bit measurement cards with internal or external current shunts. The M2001 handles single-phase applications, while the M2003 supports multi-phase Delta and Wye configurations for full voltage, current, and power measurement.
Why Choose M2000 Series
Modular Multi-Channel
Up to four configurable measurement cards for single- or multi-phase setups
Advanced Measurements
AC/DC voltage, current, power, harmonics, and power factor up to 1.25MHz
Touchscreen Interface
Large color display for intuitive operation without buttons or dials
Standards Compliance
Supports ENERGY STAR and IEC62301 standby power testing
Key Specifications
- Affordable Accuracy, Bandwidth and Ease of Use
- Large Color Touch Screen Operation

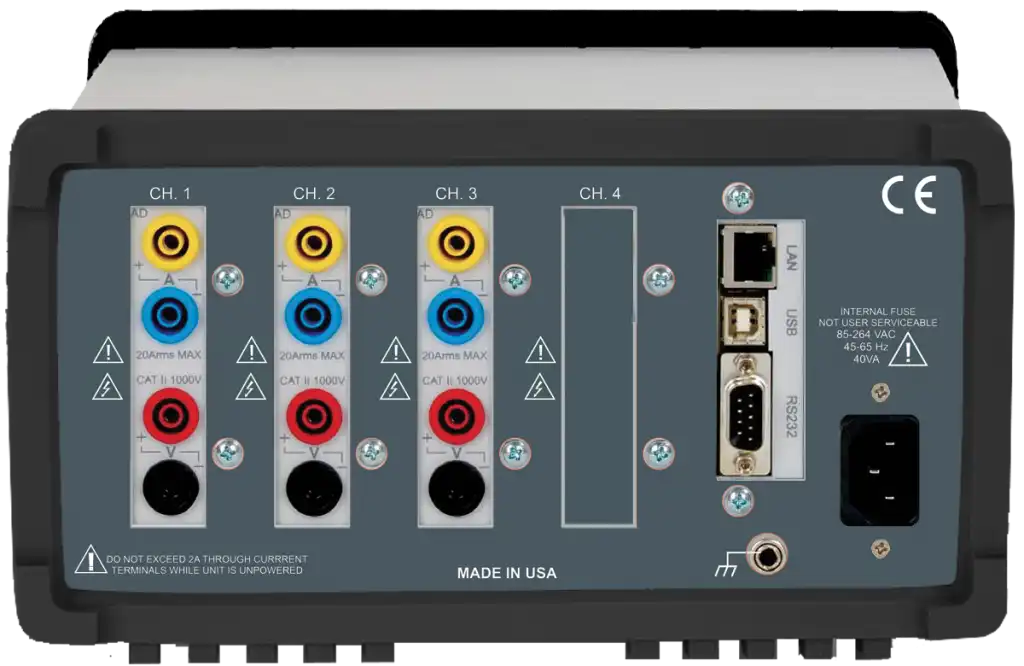

- Multi-Channel Configurations

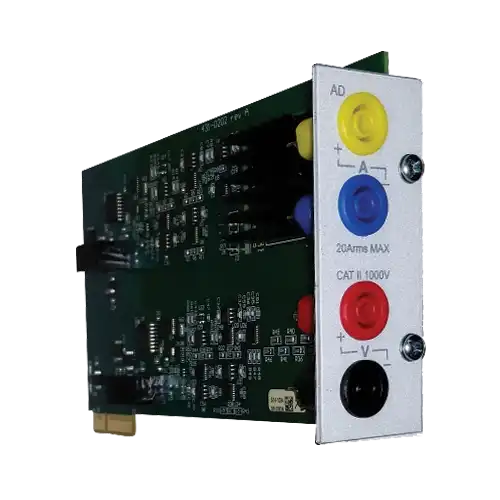

- Internal Shunt or External Current Transducer Channel Cards
- Extensive Measurement Functions to 1.25MHz:
- Vac, Vdc, Vrms, Vac+dc, Iac, Idc, Irms, Iac+dc
- Watts, VA, VAR, PF, CF
- Voltage & Current Harmonics, Vthd, Ithd
- Multiple Virtual Power Analyzer Configurations
- Numeric and Graphical Displays
- Energy Star / IEC62301 Compliant Standby Power Measurement mode
- Ultra-quiet Fanless Operation

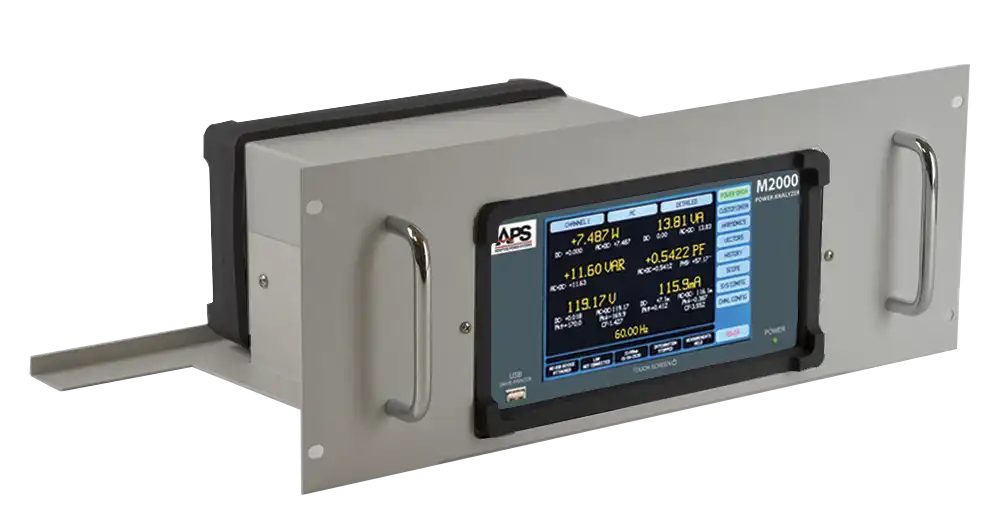

- Bench Use or 4U Height 19” Rack Mount
Precision AC & DC Power Analyzer
Comprehensive Test Measurement Modes
High-accuracy AC/DC power analysis made easy with intuitive touch operation and comprehensive test modes.
- Large Color Touch Screen: Full operation via touch display, no buttons or dials.
- Power Measurements: Frequency, voltage, current, power, VA, VAR, PF for single or grouped channels.

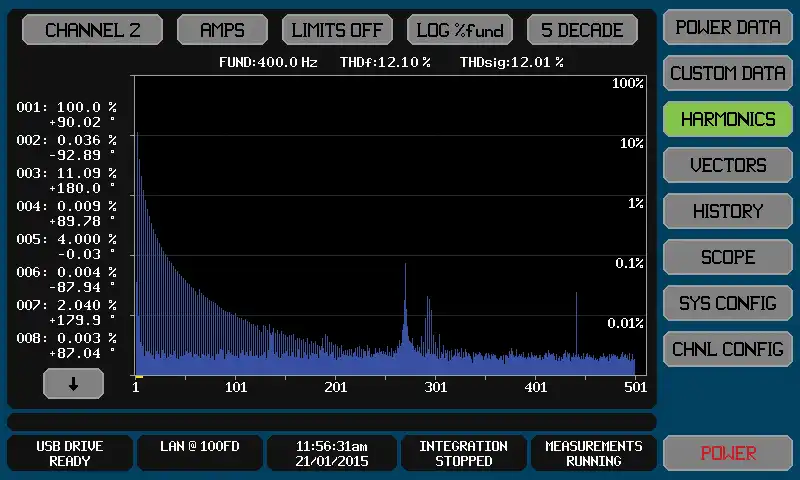

- Harmonics Analysis: Up to 500 harmonics per channel; all configured inputs analyzed.
- Scope View: Time-domain display of up to six signals with adjustable scaling and triggers.
- Vector View: Polar chart of voltage and current vectors for single or multi-phase groups (up to 10 vectors).
- Standby Power: Low standby power testing per ENERGY STAR/EN62301 and EN50564.
- Avionics & Defense: Supports 360–800Hz and 400Hz fixed frequency equipment; compliance with RTCA DO-160 and Boeing 787B3-0147.
- Harmonic Emissions Testing: Supports IEC 61000-3-2/3-12 compliance checks for EU products.
Model Comparison
| Model | No. V+I Channels | Voltage Range (Vac) | Voltage Range (Vdc) | Max. Current (Iac) | Max. Current (Idc) | Input Power | Height | Weight (Kg/Lbs) | |
|---|---|---|---|---|---|---|---|---|---|
| M2001D | 1 | 1000 Vrms / 1850Vpk | 1000 Vdc | 20 Arms / 150 Apk | 20 Adc | 100 ~ 230Vac | 5.25" / 133 mm (3U) | 3.2 / 7.0 | |
| M2001H | 1 | 1000 Vrms / 1850Vpk | 1000 Vdc | 30 Arms / 200 Apk | 30 Adc | 100 ~ 230Vac | 5.25" / 133 mm (3U) | 3.2 / 7.0 | |
| M2001X | 1 | 1000 Vrms / 1850Vpk | 1000 Vdc | External Shunt or CT | External Shunt or CT | 100 ~ 230Vac | 5.25" / 133 mm (3U) | 3.2 / 7.0 | |
| M2003D | 3 | 1000 Vrms / 1850Vpk | 1000 Vdc | 20 Arms / 150 Apk | 20 Adc | 100 ~ 230Vac | 5.25" / 133 mm (3U) | 3.4 / 7.5 | |
| M2003H | 3 | 1000 Vrms / 1850Vpk | 1000 Vdc | 30 Arms / 200 Apk | 30 Adc | 100 ~ 230Vac | 5.25" / 133 mm (3U) | 3.4 / 7.5 | |
| M2003X | 3 | 1000 Vrms / 1850Vpk | 1000 Vdc | External Shunt or CT | External Shunt or CT | 100 ~ 230Vac | 5.25" / 133 mm (3U) | 3.4 / 7.5 |
Specifications
| Measurements | Item | Specification | Unit | |
|---|---|---|---|---|
| Voltage | Base Accuracy | 0.03% Rdg | Volts | |
| Resolution | 0.1V | Volts | ||
| Current | Base Accuracy | 0.03% Rdg | ||
| AC &DC Power | Range | V range * I range | Watts | |
| Accuracy | ± 0.01% Rdg | Watts | ||
| Frequency | Range | DC, 0.19 Hz ~ 80 kHz | Hz | |
| Accuracy | ± 0.01% | Hz | ||
| V/I Harmonics | Range | 1 ~ 500th | Volts, Amps | |
| Accuracy | 0.006% + (0.004% + 0.028% * F) / PF | Volts, Amps |
| Title | Document Type |
|---|---|
M2000 Power Analyzer Datasheet
|
Datasheet |
APS M2000 Power Analyzer Manual
|
Manual |
