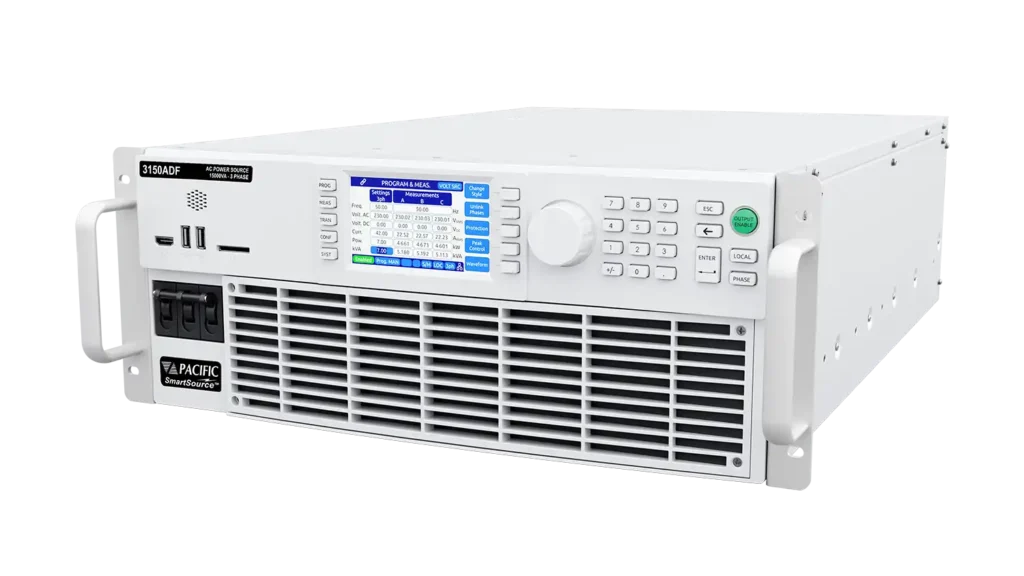

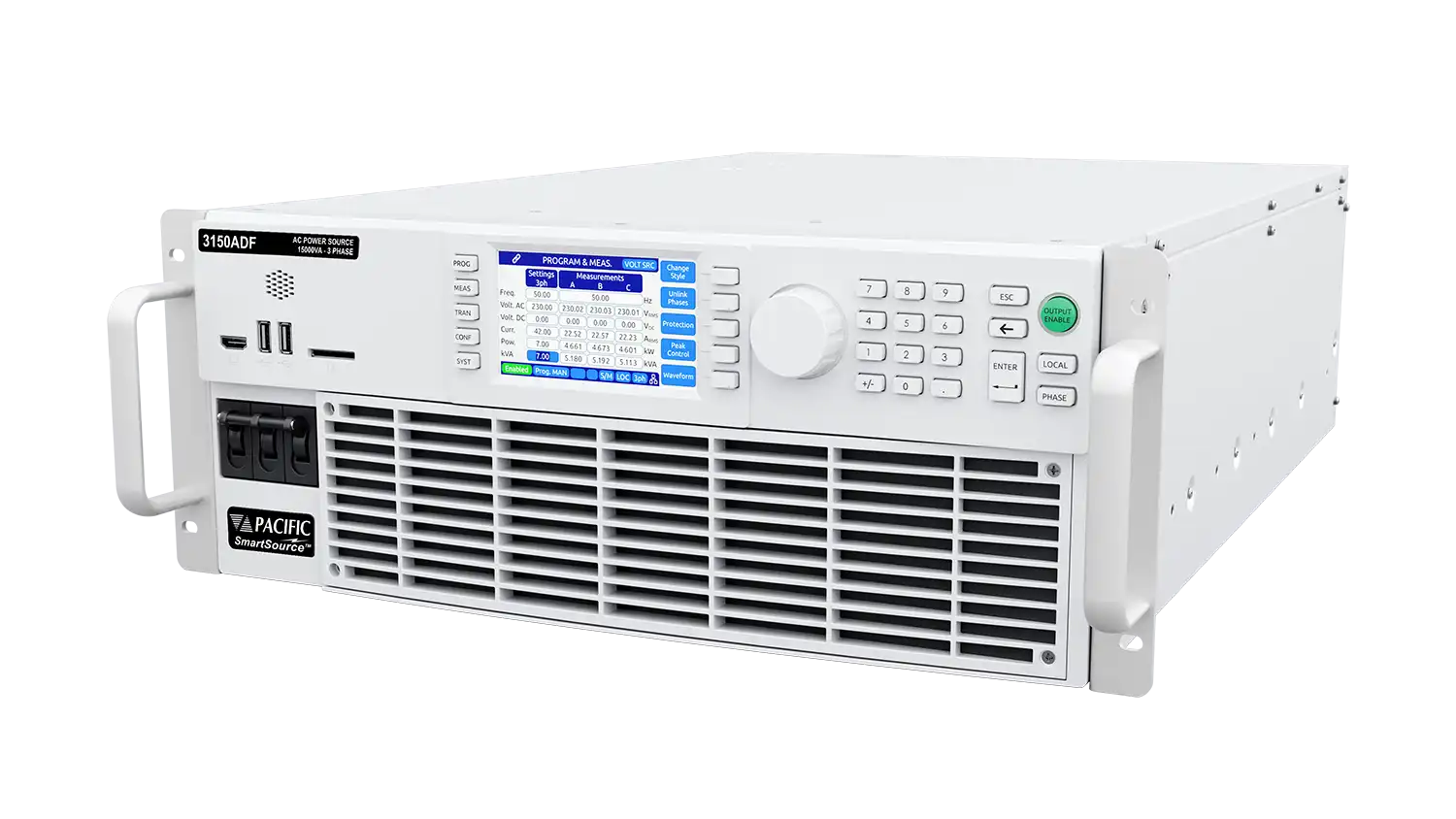

Programmable AC Power Source, 15kVA to 180kVA
Programmable AC Power Source, 15kVA to 180kVA
The ADF Series offers cost-effective, high-power AC sources from 15kVA to 180kVA+, available in single- or three-phase models. Designed with a modern user interface, it provides fully programmable operation for frequency conversion and power testing. Delivering clean, stable waveforms, the ADF ensures precise and repeatable performance. Output frequency range is from 45Hz to 500Hz, covering all commercial and industrial power frequencies as well as typical 400Hz avionics testing. For power needs under 15kVA, see the LSX or AFX Series.
Why Choose ADF Series
85% energy efficient and unique Sleep Mode

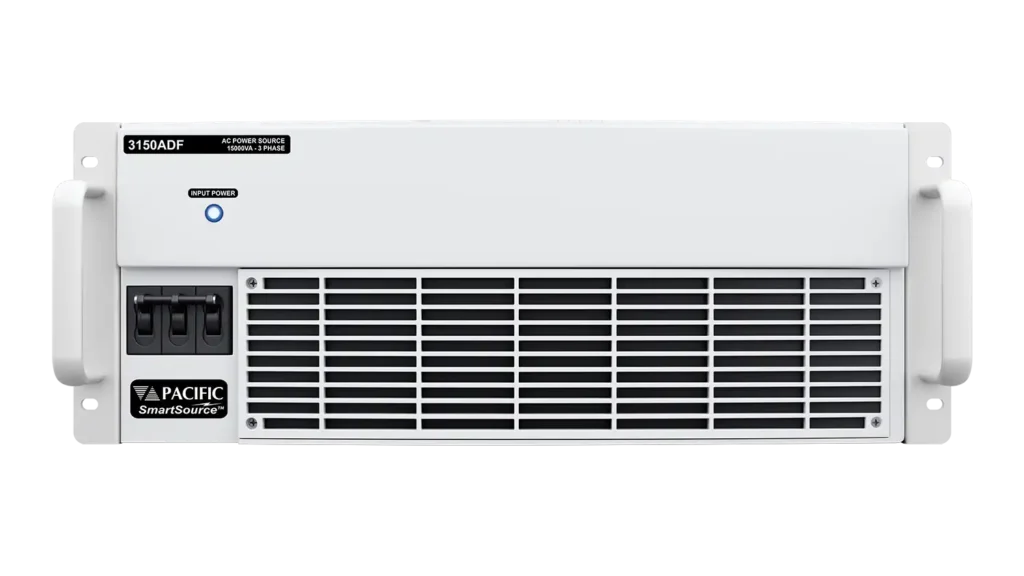

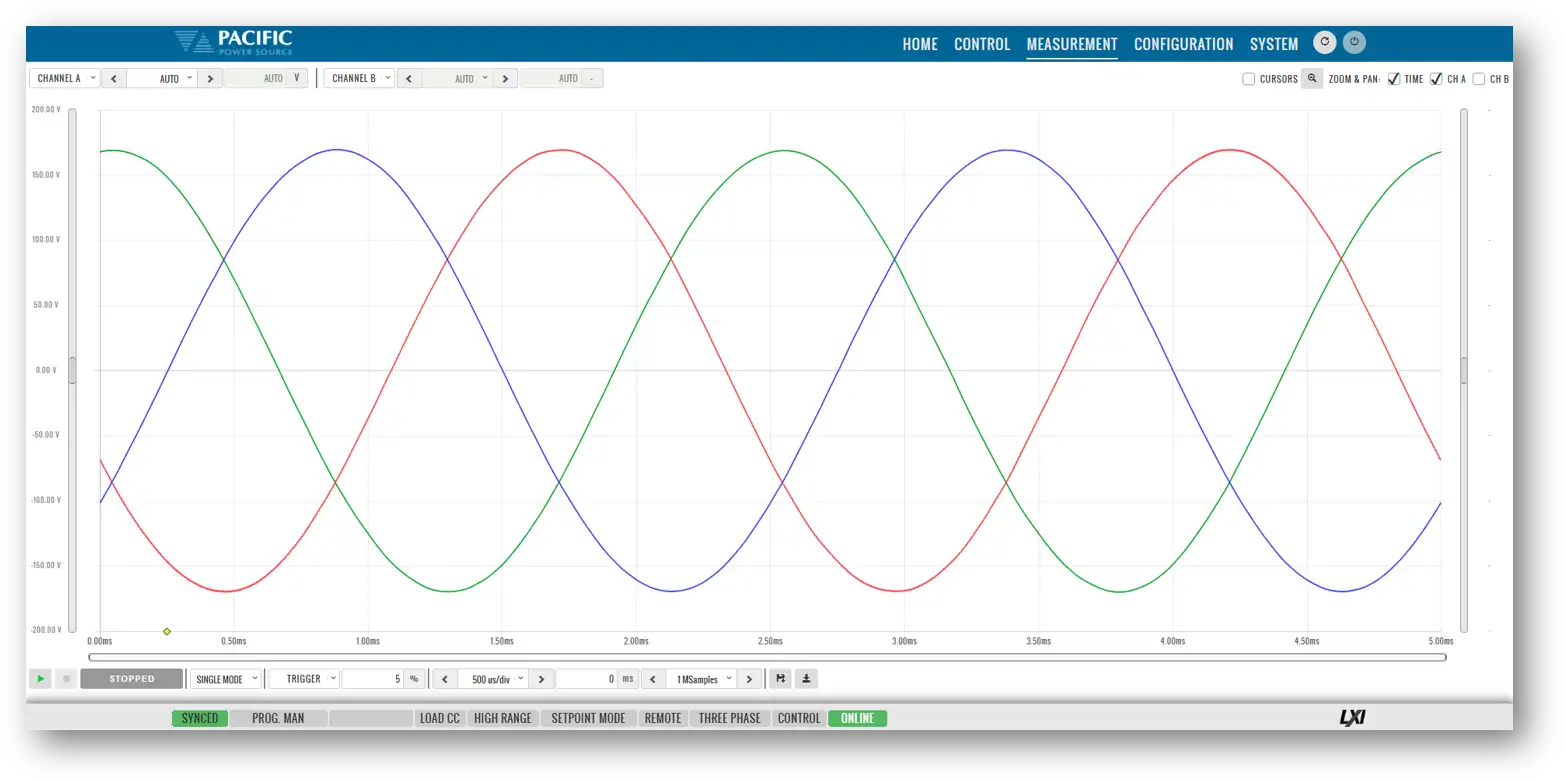

Create clean, pure sine waveforms

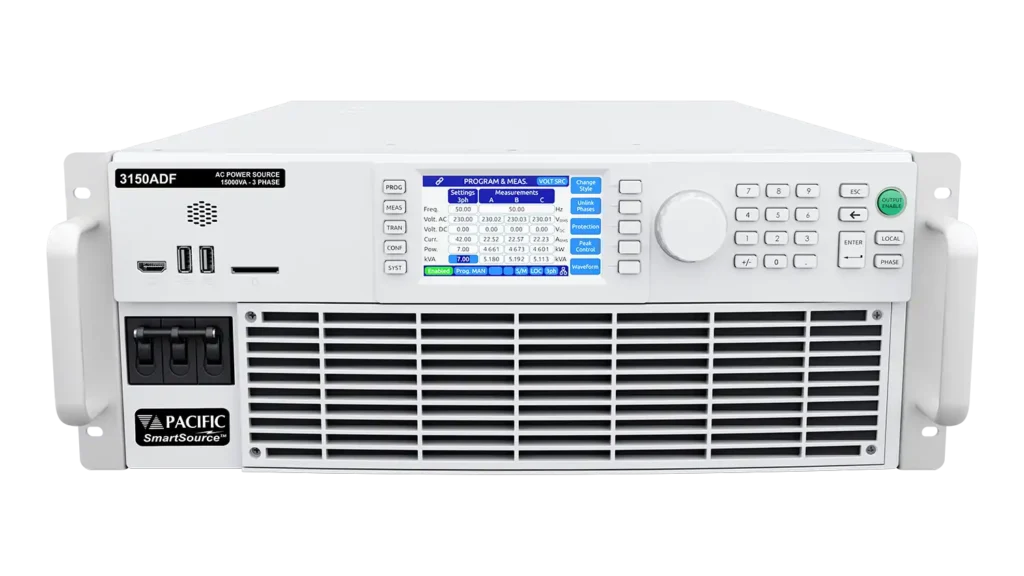

Simple user interfaces and remote control options
Cost-effective with essential features
Key Specifications
- Single or Three-Phase

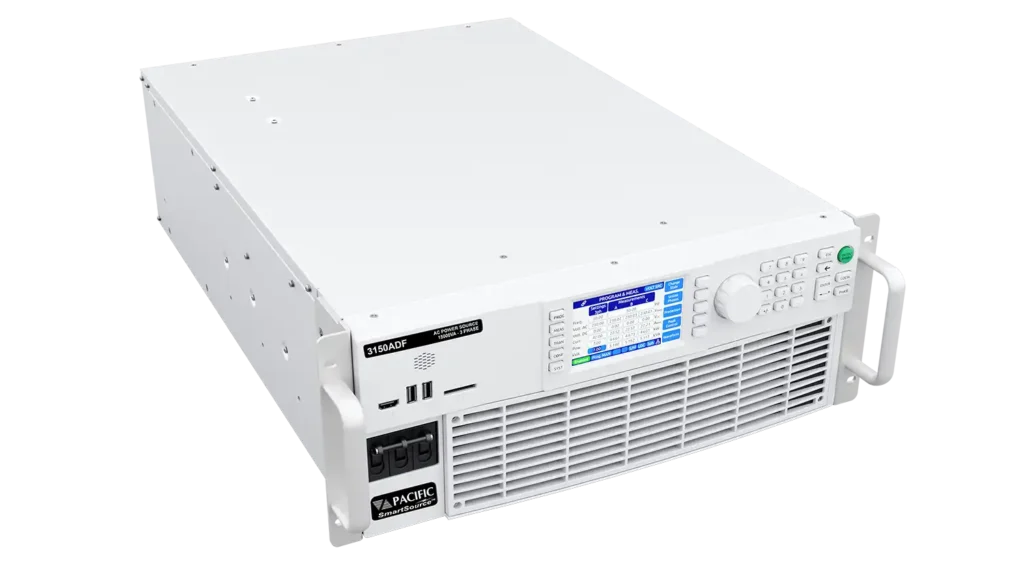

- Modular, scalable power 6kW up to 15kW in 4U

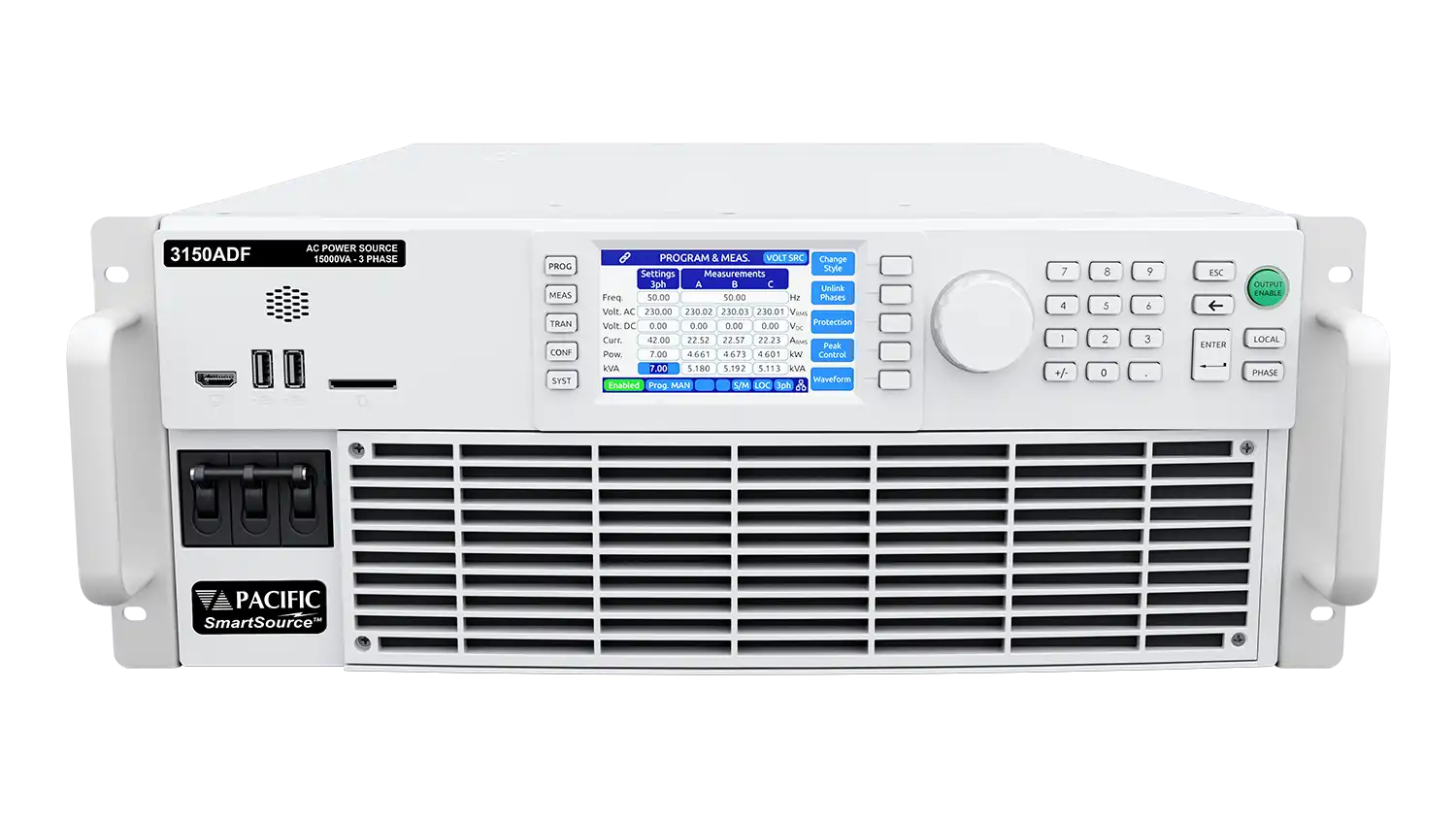

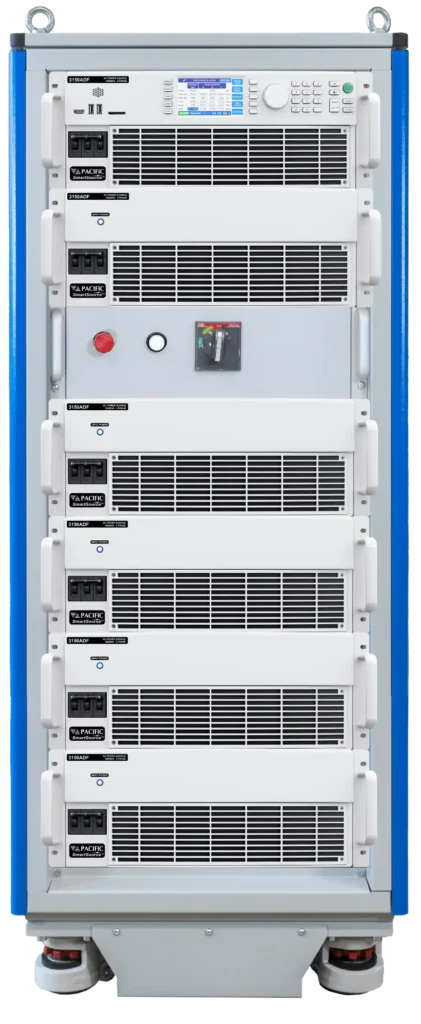

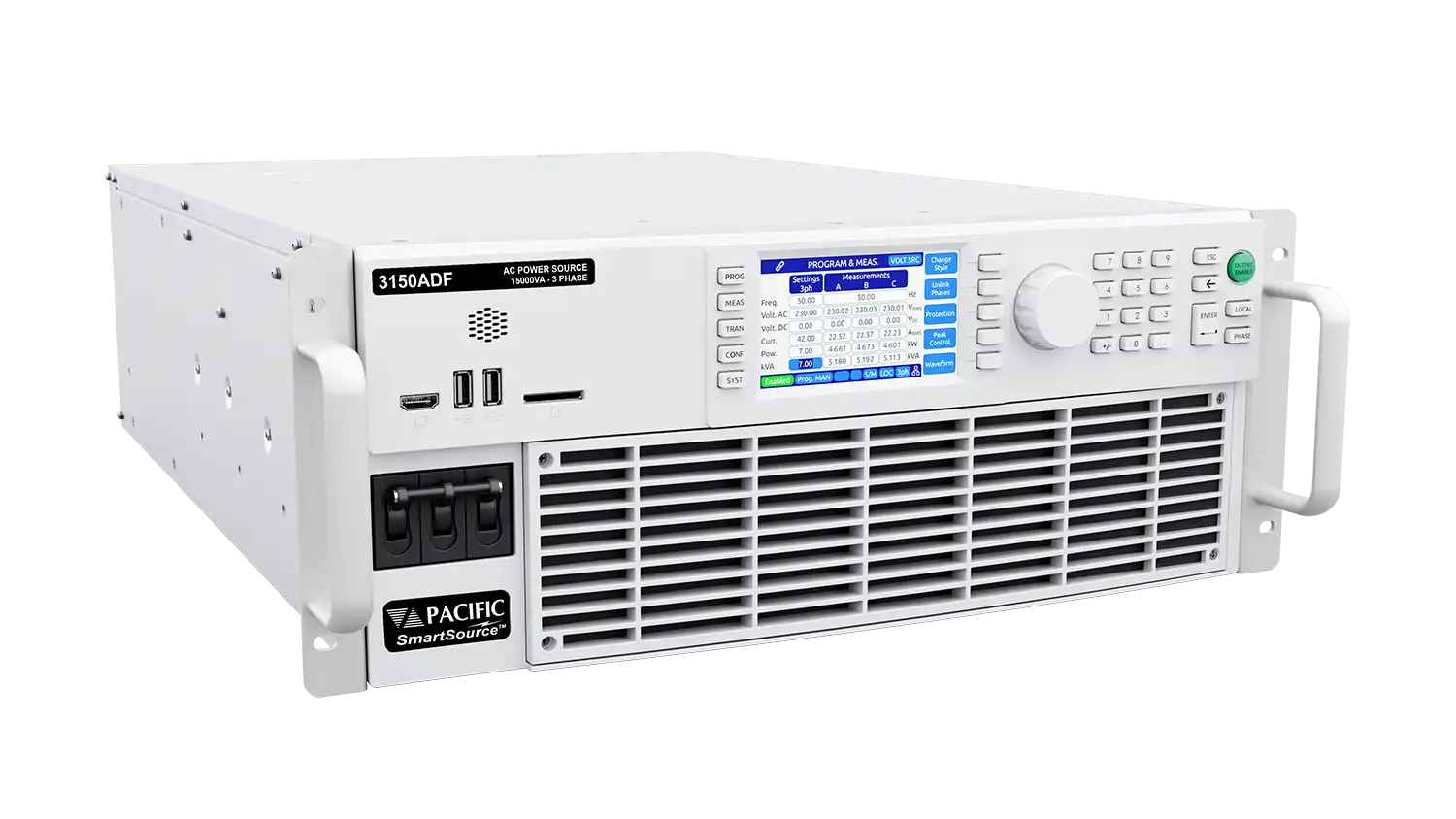

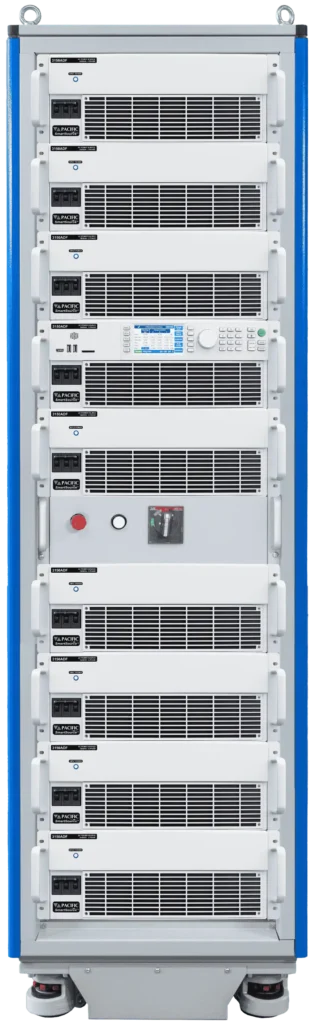

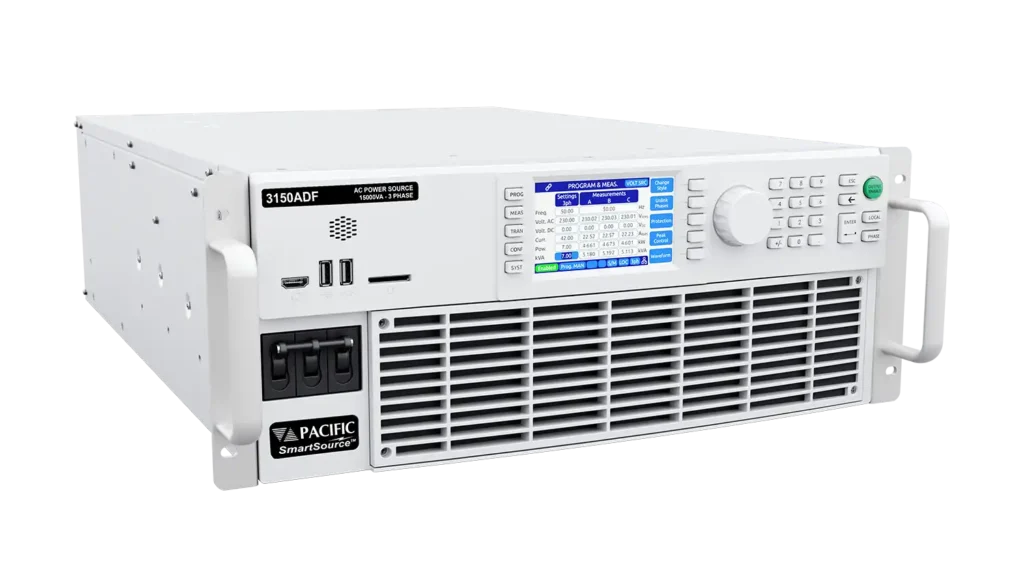

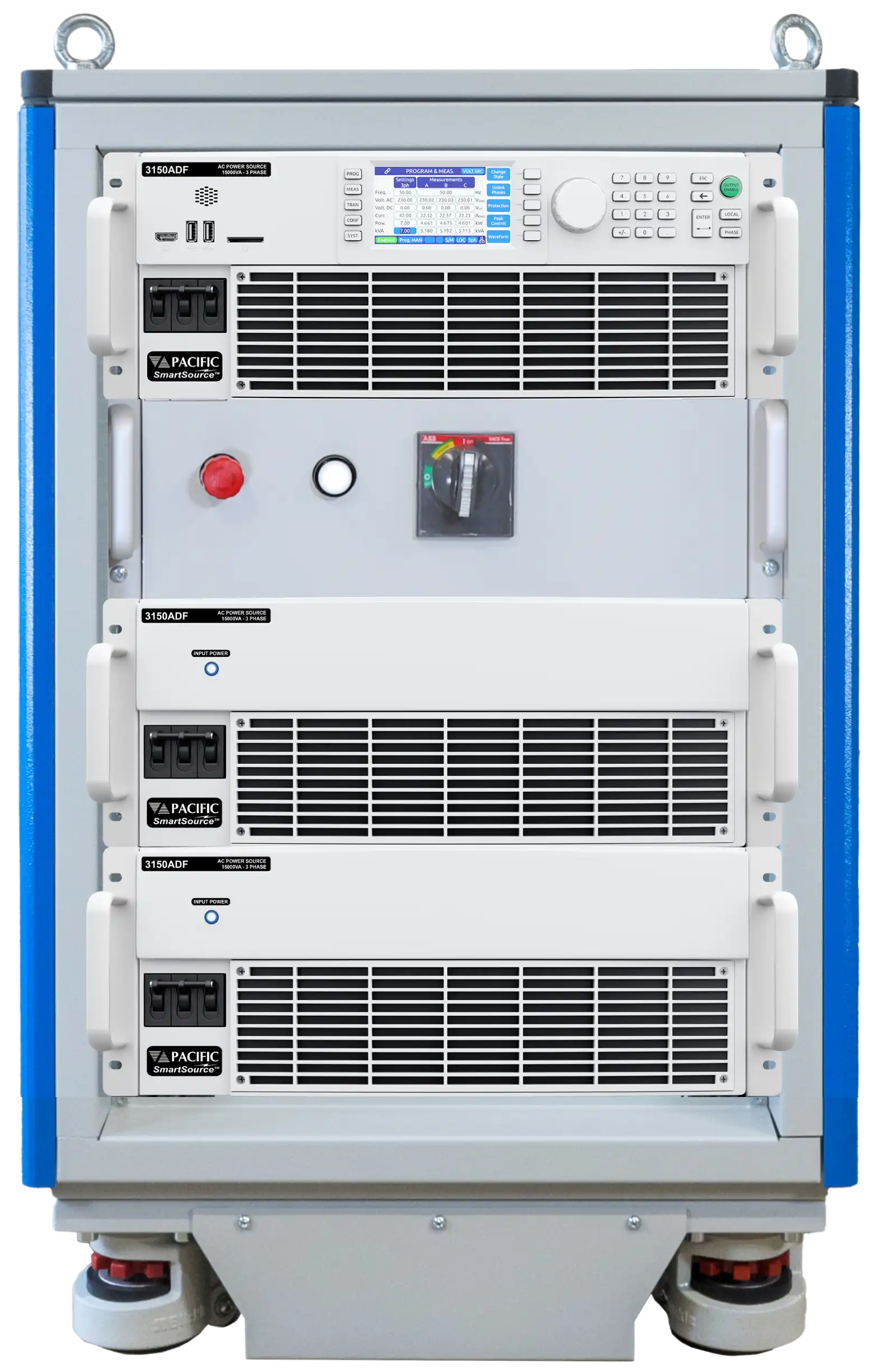

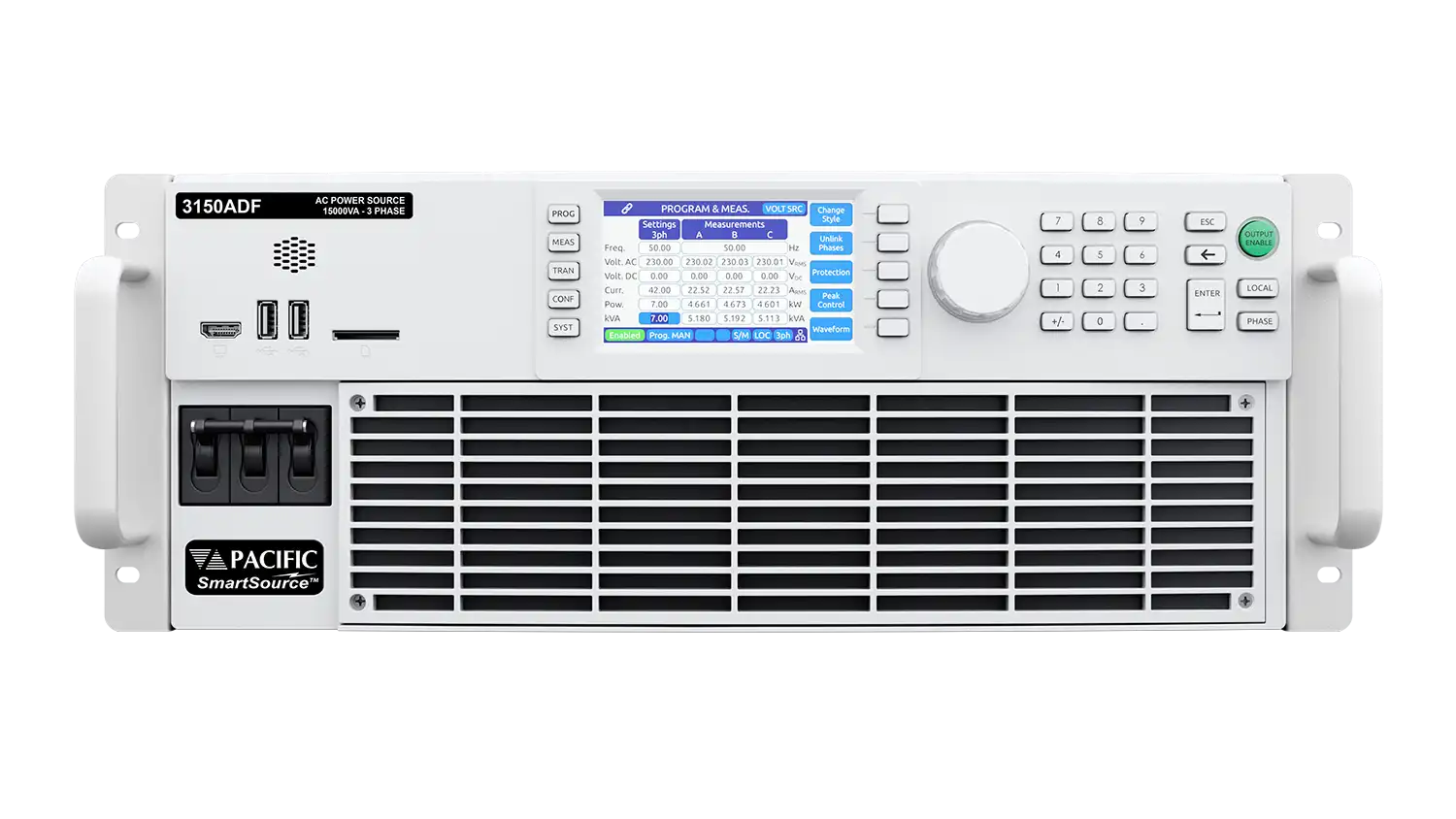

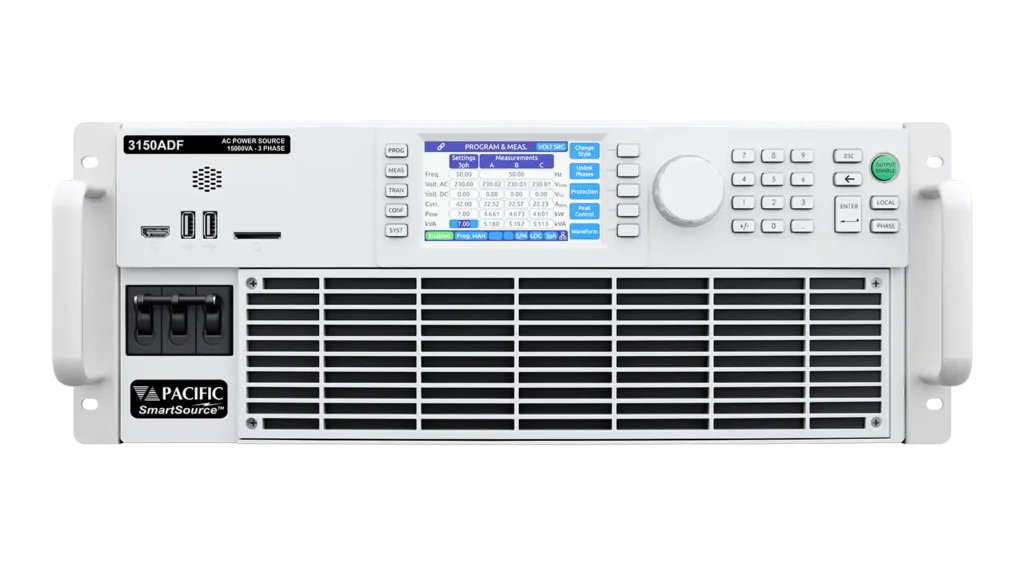

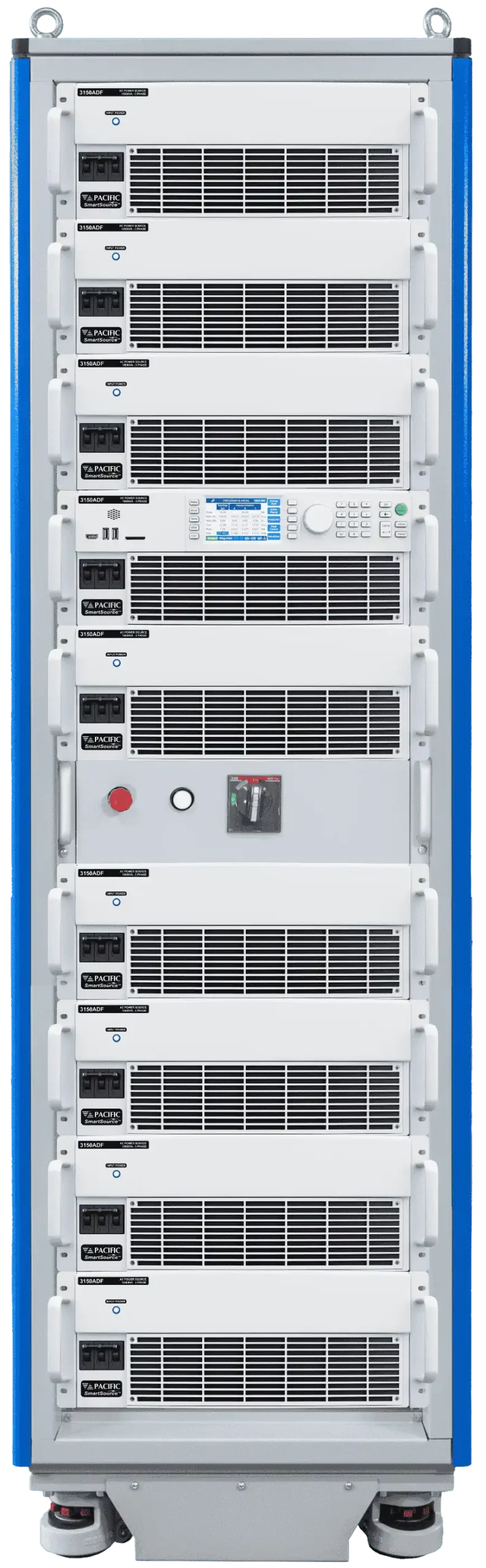

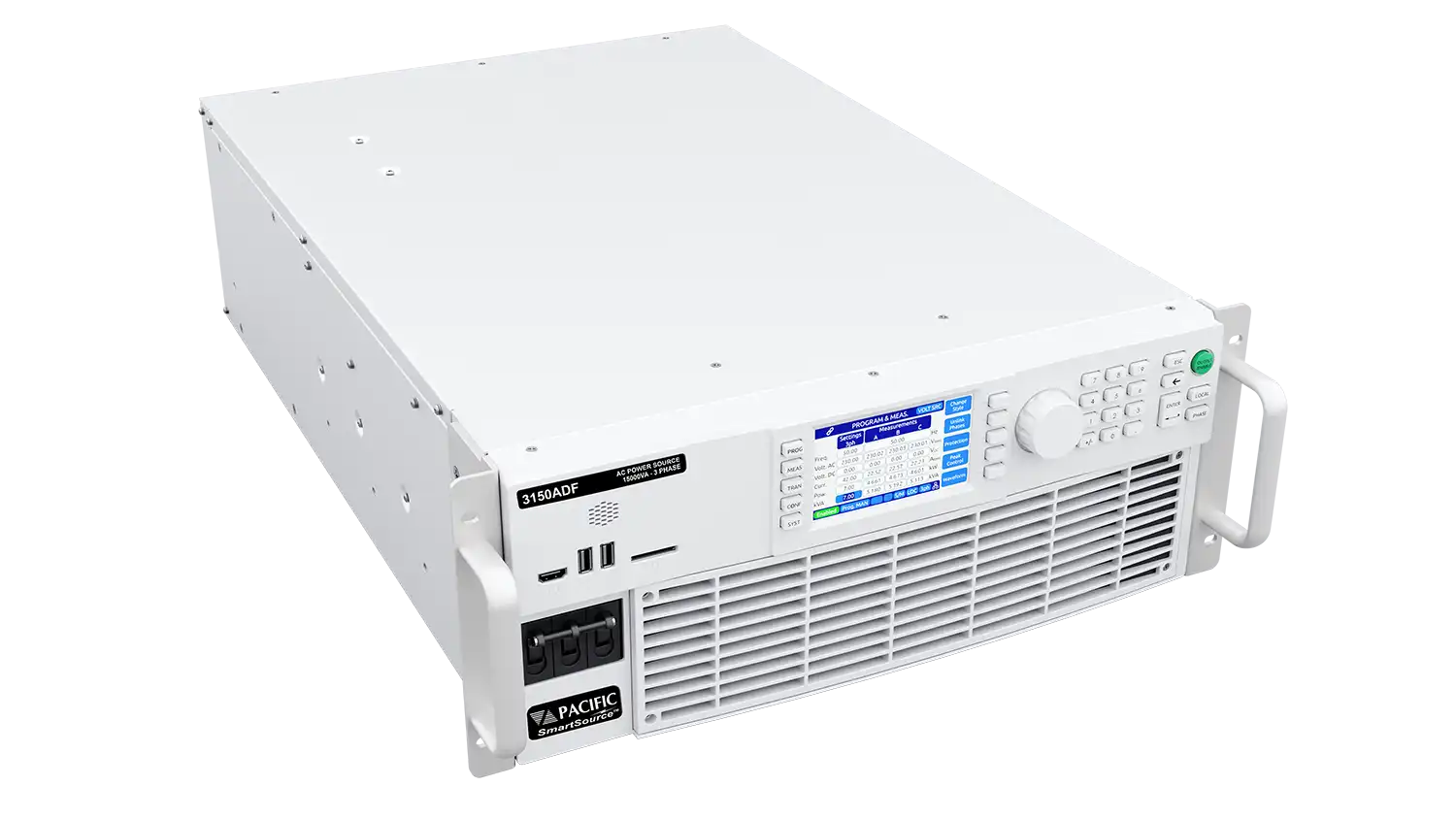

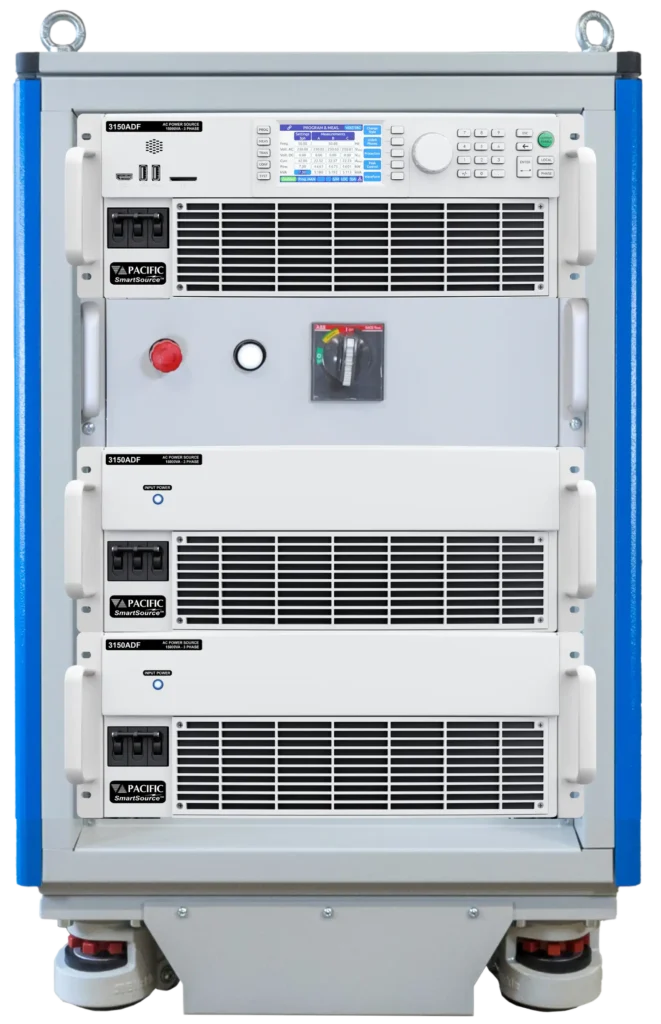

- Up to 150kW in a single 19″ cabinet
- Constant Power Voltage Range: 0-300Vac L-N/0-520Vac L-L
- Optional 0-333Vac L-N / 0-576Vac L-L
- 45Hz-500Hz; Option F: 15Hz to 1200Hz
- AC (DC option) output capability
- 85% energy efficient; Unique Sleep Mode saves energy and extends product life
- Full Galvanic Isolation from Facility AC Input to Load Input and Between Input Phases / Channels
- Safety Programmable Protection Limits for real power, apparent power, over voltage and over temperature
- Precise control of output voltage and load regulation
- Single Phase Mode Option M available for Three phase ADF models
- Option F: Frequency range extension down to 15Hz for railway applications and up to 1200Hz to support 360Hz to 800Hz wild frequency avionics applications.
- Clean, Pure Sine Waveforms
- 200 programs for customization
- Available in 208-240V or 380-480V 3 Phase AC input with Active PFC
- Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
- Precision Voltage Programming – 0.02% with Continuous Self Calibration (CSC)

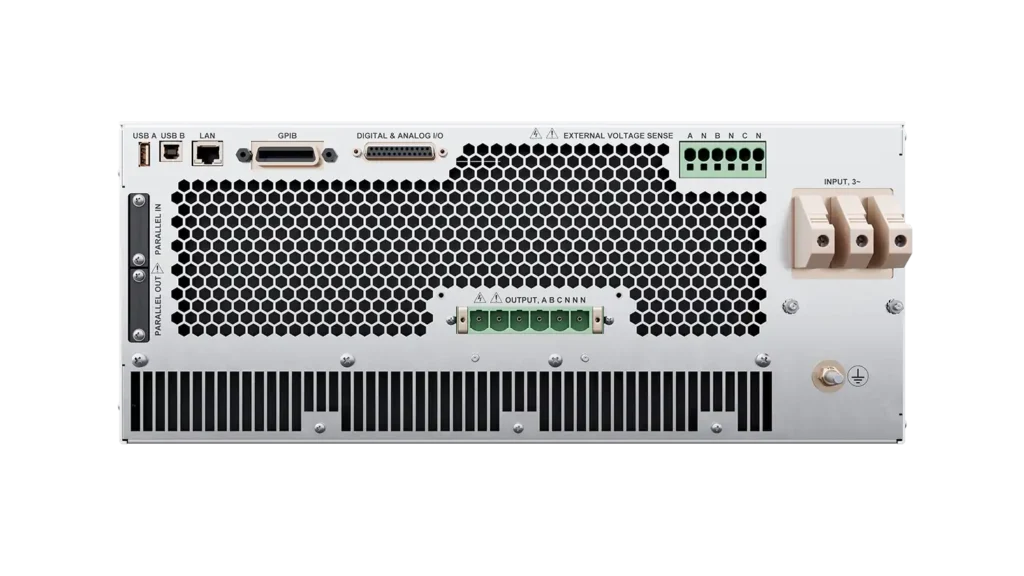

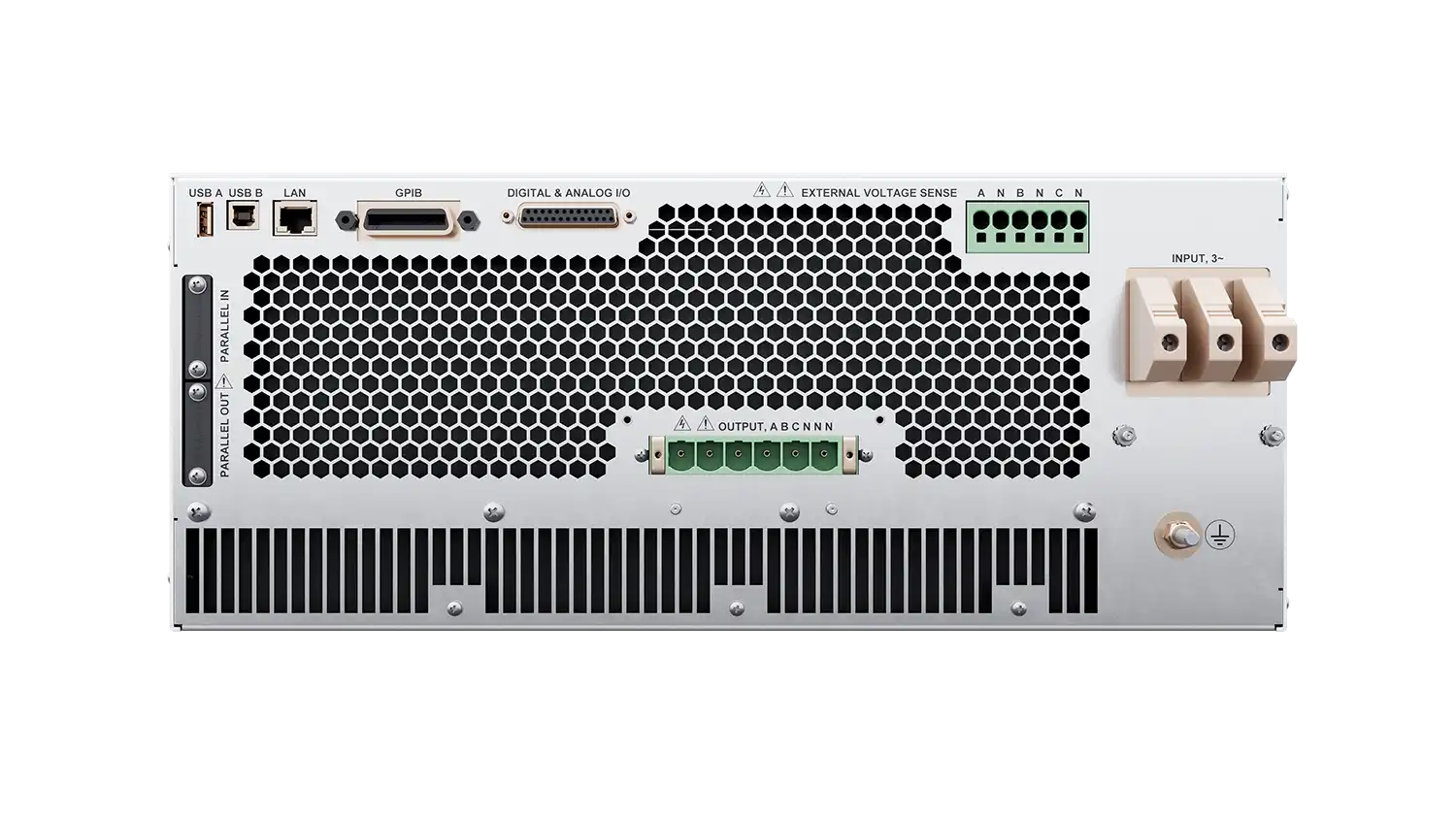

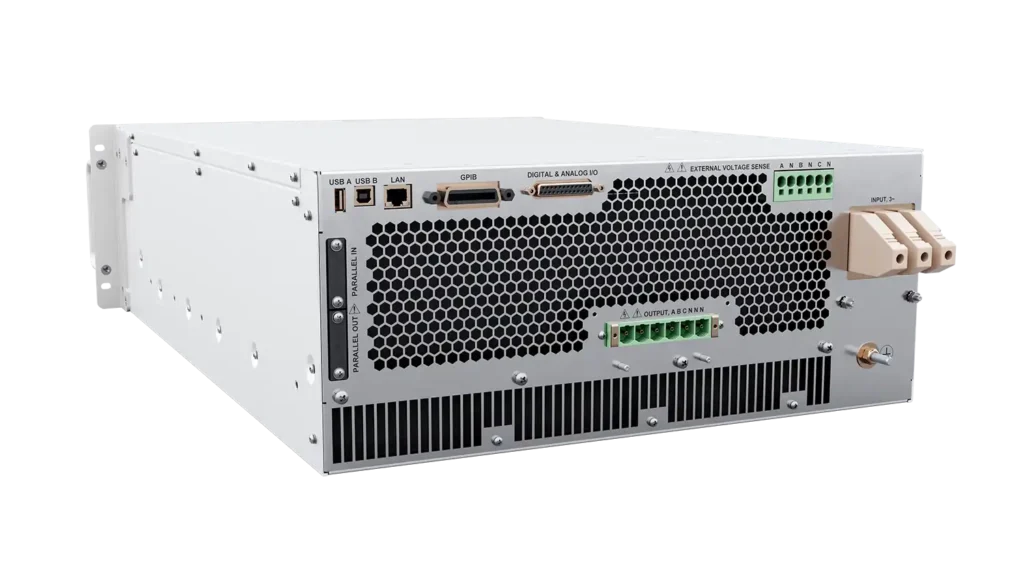

- Extensive Analog and Digital I/O for system integration
- RS-232, USB, Modbus, TCP, GPIB, SCPI compatibility; IVI Instrument Drivers
- CE (EMC/Safety) Marked
- Built-In SmartSource Suite Remote Control Platform
Economic, General Purpose AC Power Source
Accurately simulate clean pure sine waveforms in single or three phase with scalar measurements. The SmartSource Suite remote control platform is built-in and makes it easy to generate waveforms on any web browser in real-time.
Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device.
- Access on any web browser in real-time
- Enhanced visualization and reporting tools
- View and control on multiple windows
- Save time and increase productivity
| Model | Rated Power (VA) | Output Form (5) | Output Volts-Max (Vac¹) | Output Amps/Phs (Aac²) | Input Power Form (3) | Height (U) (4) | Weight (LBS/KG) | ||
|---|---|---|---|---|---|---|---|---|---|
| 1150ADF | 15000 | 1Ø | 300 (L-N) | 125.0 | 3Ø | 4 | 112/51 | ||
| 3150ADF | 15000 | 2,3 Ø | 300 (L-N) | 41.7 | 3Ø | 4 | 112/51 |
| Model | Rated Power (VA) | Output Form (5) | Output Volts-Max (Vac¹) | Output Amps/Phs (Aac²) | Input Power Form (3) | Height (U) (4) | Weight (LBS/KG) | ||
|---|---|---|---|---|---|---|---|---|---|
| 1300ADF | 30000 | 1Ø | 300 (L-N) | 250.0 | 3Ø | 18 | 320/146 | ||
| 3300ADF | 30000 | 2,3 Ø | 300 (L-N) | 83.3 | 3Ø | 18 | 320/146 | ||
| 1450ADF | 45000 | 1Ø | 300 (L-N) | 375.0 | 3Ø | 18 | 435/197 | ||
| 3450ADF | 45000 | 2,3 Ø | 300 (L-N) | 125.0 | 3Ø | 18 | 435/197 | ||
| 3600ADF | 60000 | 2,3 Ø | 300 (L-N) | 166.7 | 3Ø | 28 | 550/249 | ||
| 3750ADF | 75000 | 2,3 Ø | 300 (L-N) | 208.3 | 3Ø | 28 | 550/249 | ||
| 3900ADF | 90000 | 2,3 Ø | 300 (L-N) | 250.0 | 3Ø | 28 | 780/354 |
Notes
- For models higher than 90kVA, please contact us for model numbers and quote.
- All ADF models have a single voltage range with constant power profile. This eliminates the need for switching between a high and a low voltage range. If desired, a low voltage range can be simulated.
- Maximum current ratings shown are available up to 120Vrms. Voltage and Current follow constant power profile so higher current at lower voltage and lower current at higher voltage is available.
- Three phase input: -2 Models: 208 to 240 VAC ±10% input range. -4 Models: 380 to 480 VAC ± 10% input range. All models have active power factor corrected AC inputs. Cabinet systems rated at 60kVA or higher require 400/480Vac Input service (-4).
- Cabinet weights are approximate and vary with certain available cabinet configuration options.
- Three phase ADF models (3xxxADF) support three phase and split phase output. Option M may be added at time of order to add Single phase output mode as well. Option M does not apply to single phase ADF (1xxxADF) models.
| Title | Document Type |
|---|---|
ADF Series Programmable AC Power Source Datasheet
|
Datasheet |
ADF Series Programmable AC Power Source Manual
|
Manual |
|
AFX, ADF Series Safety Cover & Strain Relief Kit
|
Datasheet |
SmartSource Suite Brochure
|
Brochure |
