LMX Series

Linear AC Power Source, 500VA to 30kVA

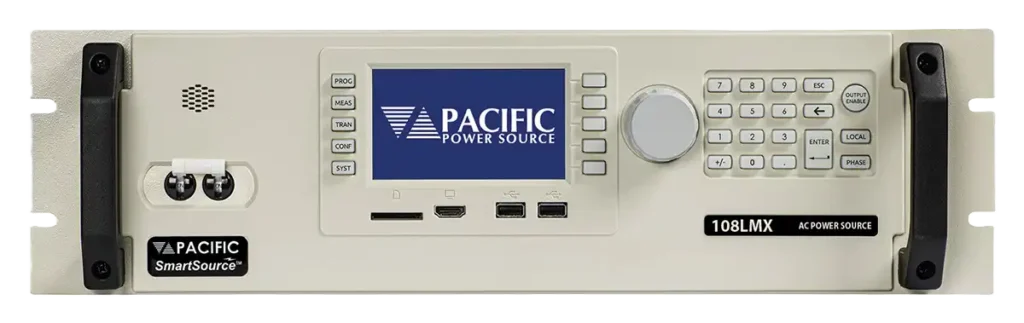

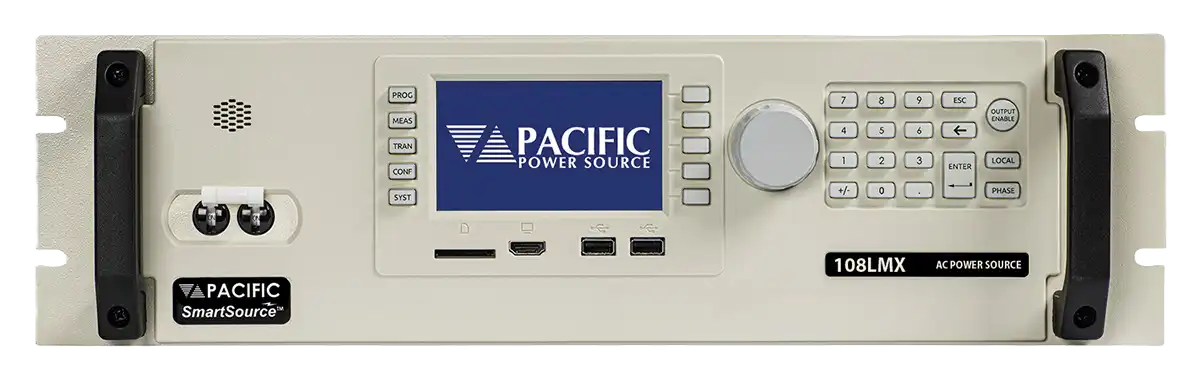

LMX Linear AC Source Front Panel

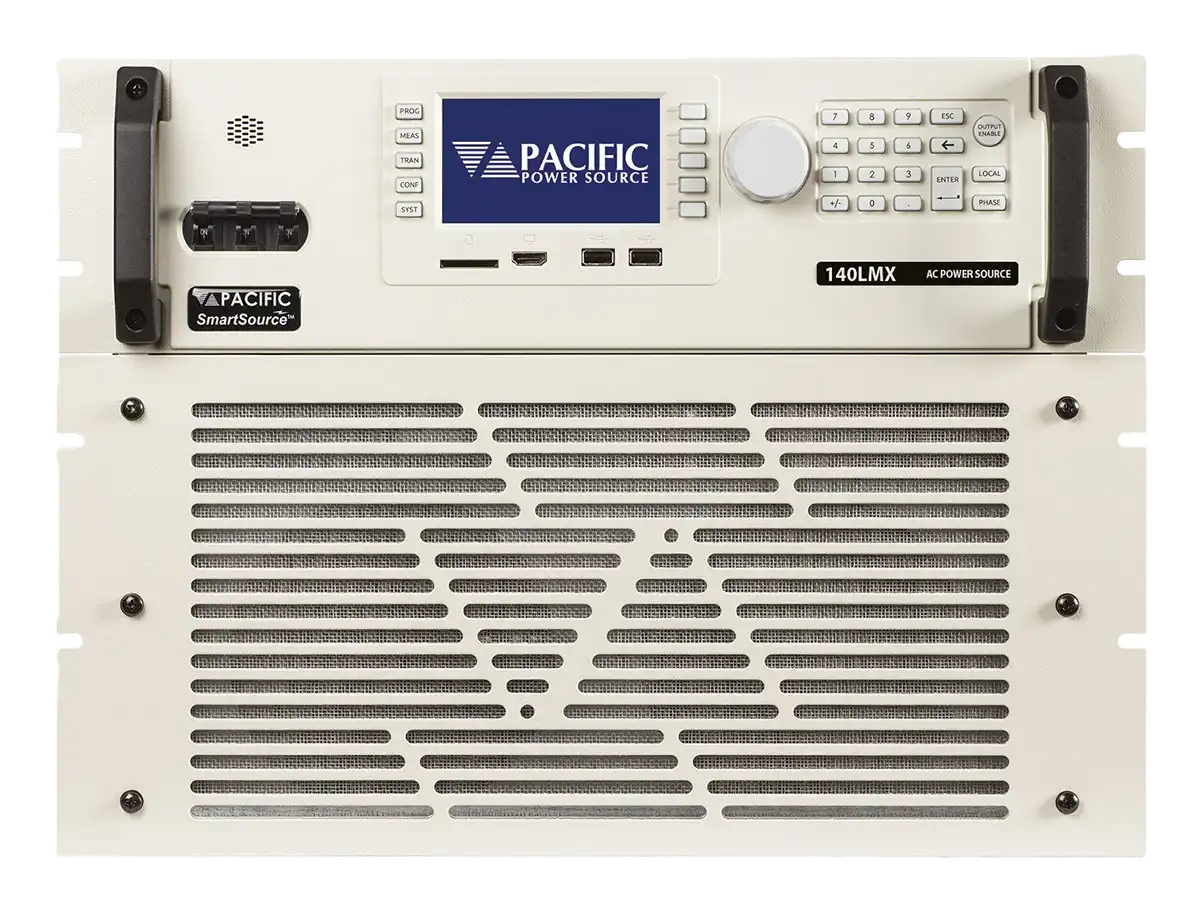

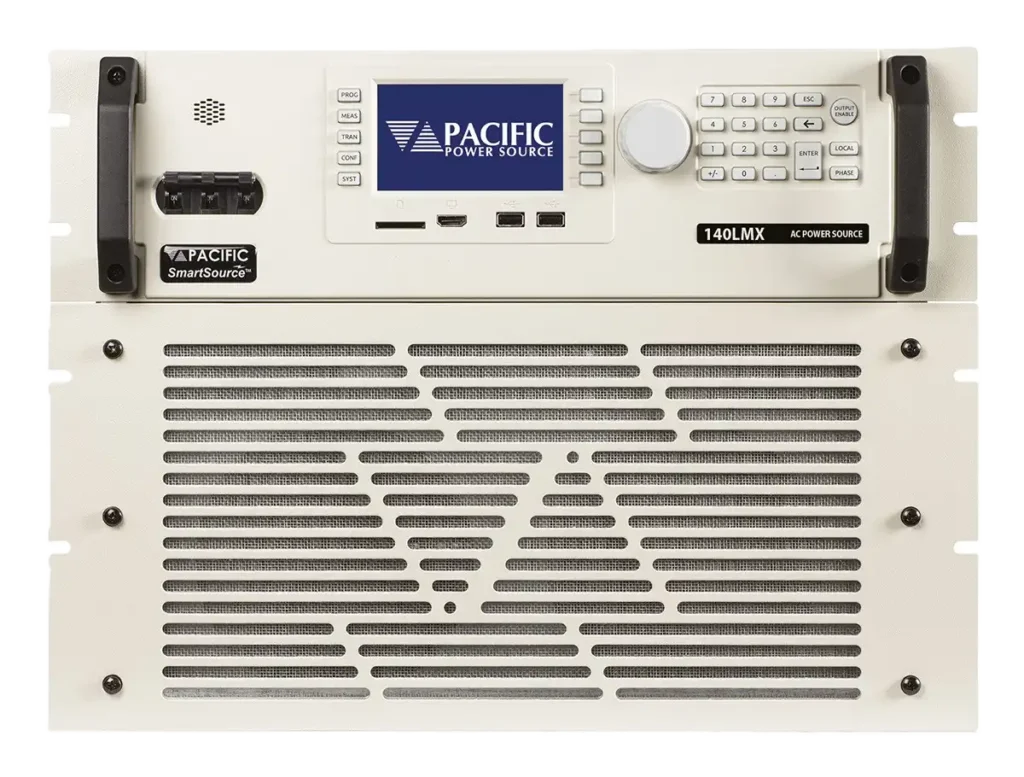

LMX Series - Linear AC Power Source Higher Power

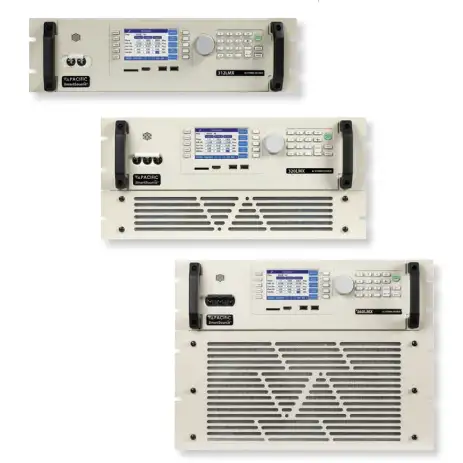

Pacific-Power-LMX-Series
LMX Series

Linear AC Power Source, 500VA to 30kVA

Request a Quote View datasheet

The LMX Series delivers low-distortion, high-fidelity waveforms through precision linear amplification, ensuring accurate reproduction with wide small-signal bandwidth. Models operate from 15 to 5,000Hz, provide up to 600Vrms L-N, and cover power levels from 500VA to 30kVA. Available in 1- and 3-phase configurations, with parallelable models from 8 to 30kVA.

Power: Up to 30kVA
Voltage: Up to 0-300Vac Direct Coupled Out
Frequency: 15Hz - 5000Hz

Why Choose LMX Series

Very High Frequency Conversion

Ideal for avionics or high-frequency applications

6:1 Peak Current Capability

Supports inrush current testing without waveform distortion

Cleanest Power and Lowest Distortion

Highest Crest Factor supports inrush currents and transients

Programmable Impedance

Lowest output impedance for EN61000-3-2, 3 testing

Key Specifications

  • Single and Three-Phase Models
  • 500kVA to 6kVA model standard
  • 8kVA to 30kVA model option
  • Up to 0-300Vac Direct Coupled Out
  • Very high frequency: 15Hz-5000Hz full bandwidth
  • Externally referenced measuring device calibration
  • Full Galvanic Isolation from Facility AC Input to Load Input and Between Input Phases / Channels
  • Advanced waveform capture & scope function
  • Safety Programmable Protection Limits for real power, apparent power, over-voltage and over-temperature
  • Full current into very low power factor reactive loads
  • Advanced Transients & Programming Capability: Sine, Square, Triangle, THD and Arbitrary, Harmonics waveforms
  • Phase Angle Programming on 3ø Models
  • Current, Apparent Power & True Power on all Phases
  • 200 programs for arbitrary waveforms & transients (List, Pulse, Step Modes)
  • Up to 0-300Vac Direct Coupled Output (split phase)
  • Single phase power source models may be controlled to operate on either a 0-135Vac range or a 0-270Vac range. Three phase models are additionally switchable 3ø to 1ø output power form.
  • Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
  • Precision Voltage Programming – 0.02% with Continuous Self Calibration (CSC)
  • Extensive Analog and Digital I/O for system integration
  • RS-232, USB, Modbus, TCP, GPIB, SCPI compatibility; IVI Instrument Drivers
  • CE (EMC/Safety) & NRTL Marked
  • Built-In SmartSource Suite Remote Control Platform

Clean Power & Low Distortion Using Linear AC Source

Medical-Equipment-MRI-machine
Linear AC Power Source Allows for High Crest Factor, Low Distortion & High Fidelity Output Waveforms

The linear amplifiers within the LMX Series power sources are unmatched in their ability to produce the high crest factor, low-distortion, high fidelity output waveforms required by the most demanding AC Test Power applications.

Stand-alone models range from 500VA to 6kVA. Larger chassis may be paralleled to create systems that range from 8kVA to 30kVA. Offering both single and three phase models, units are conservatively designed with output power ratings based on the most severe combination of input line, output voltage, power factor, and temperature.

The exceptionally broad bandwidth (50kHz small signal), combined with low output impedance and high crest factor ratings give the LMX Series the ability to produce high quality, low distortion output power into the most dynamic loads.

Aerospace Power Test Solutions
Wide Selection of Voltage Ranges (T Option)

LMX Series supports up to 135VLN/270VLL (single-phase) or 135VLN/234VLL (three-phase). Transformer Option The T-Option provides transformer-coupled outputs at 1.5:1, 2.0:1, or 2.5:1 ratios, reaching 600V (single-phase) or 585V (three-phase).

  • Automatic switching between direct coupled output voltage range and transformer coupled voltage range
  • T-Option provides transformer-coupled outputs at 1.5:1, 2.0:1, or 2.5:1 ratios

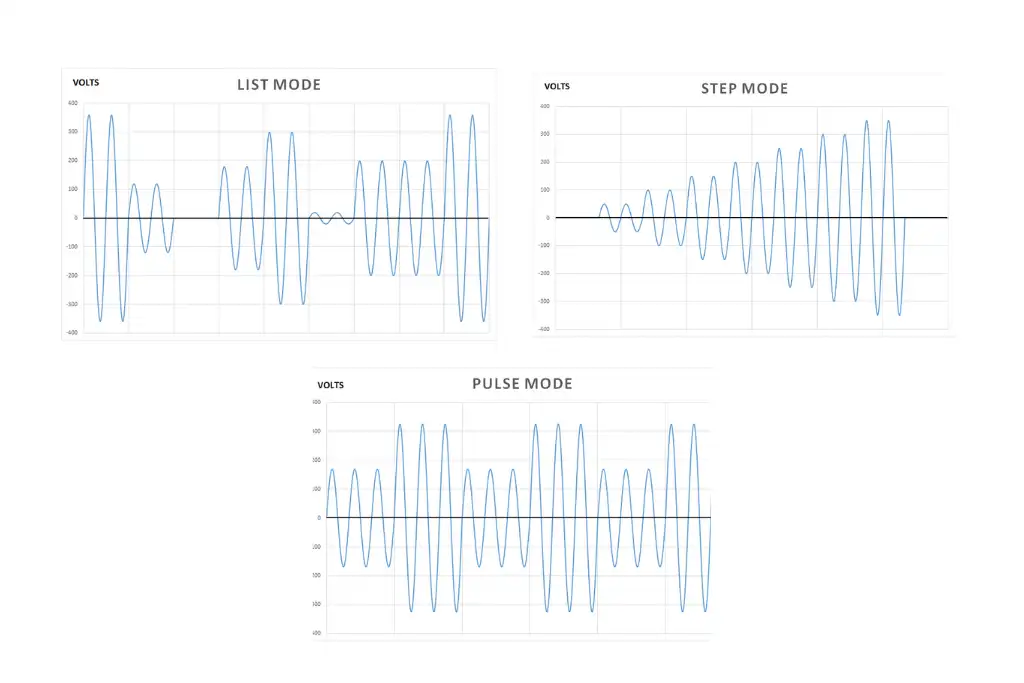

Program Transients
Generate Advanced Waveforms and Transients

Voltage, Waveform and Frequency output transients are easily created from the front panel using an intuitive spreadsheet style data entry method. Data may be entered for a specific phase or for all three phases at the same time. The LMX Series supports LIST, PULSE and STEP Mode Transient Types. In addition to sine wave, the LMX Series offers multiple selectable AC waveforms such as clipped sine wave at various distortion levels, square, triangle and stepped squares.

  • Over 200 arbitrary waveforms to customize
  • LIST, PULSE, STEP mode transient types
  • Sine, Square, Triangle, THD and Arbitrary waveforms

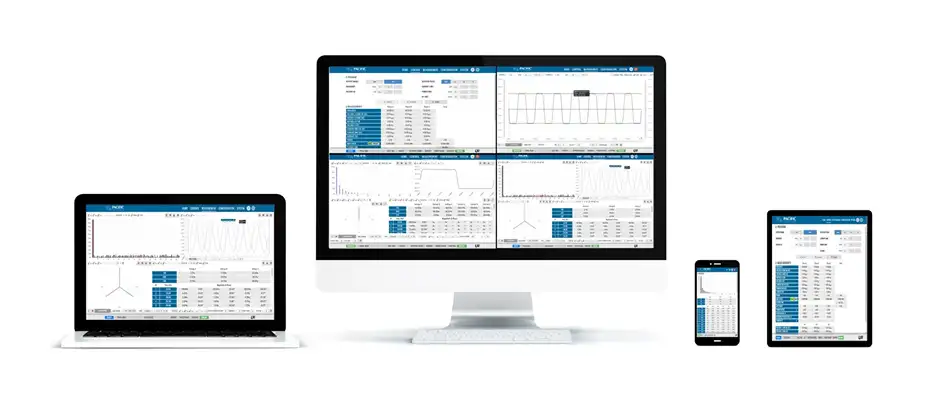

SmartSuite - Multiple Devices
Simplify Testing with Smart Control, Built-In

Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device

  • Access on any web browser in real-time
  • Enhanced visualization and reporting tools
  • View and control on multiple windows
  • Save time and increase productivity
Featured White Paper

Linear vs. PWM AC Power Source

Download Now
Selecting a Linear or PWM AC Power Source
Single Phase Models
ModelRated
Power (VA)		Voltage Max
(L-N/L-L) (Vrms)		Rated Current Max (Arms)Output
Frequency (Hz)		AC
Input		U
105LMX500Direct: 135/270Direct: 4.0/2.015-50001Ø3
105LMXT500Direct: 135/720
Transformer:
202/404 (T 1.5:1)
270/540 (T 2.0:1)
338/600 (T 2.5:1)		Direct: 4.0/2.0
Transformer:
2.6/1.3 (T 1.5:1)
2.0/1.0 (T 2.0:1)
1.6/0.8 (T 2.5:1)		45-50001Ø3
108LMX750Direct: 135/270Direct: 6.0/3.015-50001Ø3
108LMXT750Direct: 135/720
Transformer:
202/404 (T 1.5:1)
270/540 (T 2.0:1)
338/600 (T 2.5:1)		Direct: 6.0/3.0
Transformer:
4.0/2.0 (T 1.5:1)
3.0/1.5 (T 2.0:1)
2.4/1.2 (T 2.5:1)		45-50001Ø3
112LMX1200Direct: 150/300Direct: 10.0/5.015-50001Ø3
140LMX4000Direct: 135/270Direct: 32/1615-50003Ø8
140LMXT4000Direct: 135/720
Transformer:
202/404 (T 1.5:1)
270/540 (T 2.0:1)
338/600 (T 2.5:1)		Direct: 32/16
Transformer:
21.3/10.7 (T 1.5:1)
16.0/8.0 (T 2.0:1)
12.8/6.4 (T 2.5:1)		45-50003Ø11
160LMX6000Direct: 135/270Direct: 48/1615-50003Ø8
160LMXT6000Direct: 135/720
Transformer:
202/404 (T 1.5:1)
270/540 (T 2.0:1)
338/600 (T 2.5:1)		Direct: 48/16
Transformer:
32.0/10.7 (T 1.5:1)
24.0/8.0 (T 2.0:1)
19.2/6.4 (T 2.5:1)		45-50003Ø11
Three Phase Models
ModelRated
Power (VA)		Voltage Max
(L-N/L-L) (Vrms)		Rated Current Max (Arms)Output
Frequency (Hz)		AC
Input		U
305LMX500Direct:
1Ø: 132/264
3Ø: 234		Direct:
1Ø: 4/2
3Ø: 2		15-50001Ø3
305LMXT500Direct:
1Ø: 132/264
3Ø: 234
Transformer:
T 1.5:1 (1Ø): 202/404
T 1.5:1 (3Ø): 350
T 2.0:1 (1Ø): 270/540
T 2.0:1 (3Ø): 468
T 2.5:1 (1Ø): 338/600
T 2.5:1 (3Ø): 585		Direct:
1Ø: 4/2
3Ø: 2
Transformer:
T 1.5:1 (1Ø): 2.6/1.3
T 1.5:1 (3Ø): 1.3
T 2.0:1 (1Ø): 2/1
T 2.0:1 (3Ø): 0.75
T 2.5:1 (1Ø): 1.6/0.8
T 2.5:1 (3Ø): 0.6		45-50001Ø3
308LMX750Direct:
1Ø: 135/270
3Ø: 135		Direct:
1Ø: 6/2
3Ø: 2		15-50001Ø3
308LMXT750Direct:
1Ø: 135/270
3Ø: 135
Transformer:
T 1.5:1 (1Ø): 202/404
T 1.5:1 (3Ø): 350
T 2.0:1 (1Ø): 270/540
T 2.0:1 (3Ø): 468
T 2.5:1 (1Ø): 338/600
T 2.5:1 (3Ø): 585		Direct:
1Ø: 6/2
3Ø: 2
Transformer:
T 1.5:1 (1Ø): 4/1.3
T 1.5:1 (3Ø): 1.3
T 2.0:1 (1Ø): 3/1
T 2.0:1 (3Ø): 1
T 2.5:1 (1Ø): 2.4/0.8
T 2.5:1 (3Ø): 0.8		45-50001Ø3
312LMX1200Direct:
1Ø: 150/300
3Ø: 260
Transformer:
225 (T 1.5:1, only 3Ø)
300 (T 2.0:1, only 3Ø)
375 (T 2.5:1, only 3Ø)		Direct:
1Ø: 10/3.3
3Ø: 3.3
Transformer:
2.2/Ø (T 1.5:1, only 3Ø)
1.66/Ø (T 2.0:1, only 3Ø)
1.33/Ø (T 2.5:1, only 3Ø)		15-50001Ø3
320LMX2000Direct:
1Ø: 135/270
3Ø: 135		Direct:
1Ø: 18/6
3Ø: 6		15-50003Ø5
320LMXT2000Direct:
1Ø: 135/270
3Ø: 135
Transformer:
T 1.5:1 (1Ø): 202/404
T 1.5:1 (3Ø): 202/350
T 2.0:1 (1Ø): 270/540
T 2.0:1 (3Ø): 270/468
T 2.5:1 (1Ø): 338/600
T 2.5:1 (3Ø): 330/585		Direct:
1Ø: 18/6
3Ø: 6
Transformer:
T 1.5:1 (1Ø): 12/4
T 1.5:1 (3Ø): 4
T 2.0:1 (1Ø): 9/3
T 2.0:1 (3Ø): 3
T 2.5:1 (1Ø): 7.2/2.4
T 2.5:1 (3Ø): 2.4		45-50003Ø8
345LMX4500Direct:
1Ø: 135/270
3Ø: 135/234		Direct:
1Ø: 36/12
3Ø: 12		15-50003Ø8
345LMXT4500Direct:
1Ø: 135/270
3Ø: 135/234
Transformer:
T 1.5:1 (1Ø): 202/404
T 1.5:1 (3Ø): 202/350
T 2.0:1 (1Ø): 270/540
T 2.0:1 (3Ø): 270/468
T 2.5:1 (1Ø): 338/600
T 2.5:1 (3Ø): 330/585		Direct:
1Ø: 36/12
3Ø: 12
Transformer:
T 1.5:1 (1Ø): 24/8
T 1.5:1 (3Ø): 8
T 2.0:1 (1Ø): 18/6
T 2.0:1 (3Ø): 6
T 2.5:1 (1Ø): 14.4/4.8
T 2.5:1 (3Ø): 4.8		45-50003Ø11
360LMX6000Direct:
1Ø: 135/270
3Ø: 135/234		Direct:
1Ø: 48/16
3Ø: 16		15-50003Ø8
360LMXT6000Direct:
1Ø: 135/270
3Ø: 135/234
Transformer:
T 1.5:1 (1Ø): 202/404
T 1.5:1 (3Ø): 202/350
T 2.0:1 (1Ø): 270/540
T 2.0:1 (3Ø): 270/468
T 2.5:1 (1Ø): 338/600
T 2.5:1 (3Ø): 330/585		Direct:
1Ø: 48/16
3Ø: 16
Transformer:
T 1.5:1 (1Ø): 32/10.7
T 1.5:1 (3Ø): 10.7
T 2.0:1 (1Ø): 24/8
T 2.0:1 (3Ø): 8
T 2.5:1 (1Ø): 19.2/6.4
T 2.5:1 (3Ø): 6.4		45-50003Ø11
  • All single phase output units are operable with dual voltage ranges as listed. Three phase units are operable as single phase with dual voltage range capability or as three phase. Output voltage ranges and 1ø/3ø conversions are selected by front panel or bus commands.
  • Output voltage ranges listed are for standard units. VMAX is output voltage with nominal input and full rated load applied. Other voltage ranges are available with the output magnetics options.
  • Peak Repetitive Pulse Current.
  • Single phase input: 100, 110, 120, 208, 220 and 240 VAC ±10%. Three phase input: 208,220,240,380,416 and 480 VAC ±10%. (480 V input and 400 Hz input are each available as a cost option.)
Title Document Type
LMX Series Linear AC Power Source Datasheet Datasheet
LMX Series Linear AC Power Source Manual Gated Manual
Testing PV Micro Inverters Using Linear AC Power Source – LMX Series App Note
White Paper Selecting a Linear vs. PWM AC Power Source White Paper
