Harmonics, Flicker, and Immunity Test System, up to 75A
Harmonics, Flicker, and Immunity Test System, up to 75A
The SmartTS-HFI Harmonics, Flicker, Immunity Test Systems supports single and three phase IEC 61000-3-XX AC – Harmonics and Flicker as well as IEC 61000-4-XX AC – Power Line immunity compliance testing of EUTs up to the maximum required current of 75A per phase. The SmartTS-HFI combines accurate measurements, high-performance power sources, and automated workflows into one scalable system. The SmartTS-HFI series delivers turnkey solutions for EMC compliance testing, using Pacific Power Source AC power sources to test in compliance with common IEC 61000-3 and IEC 61000-4-xx emissions and power line immunity standards.
- For IEC 61000-4-11, 61000-4-34 and 61000-4-29 full compliance testing, add the Electronic Power Transfer Switch (EPTS) Option ensuring precise and compliant rise and fall time performance.
- Integrated EMC test software streamlines emissions and immunity testing and automates compliance reporting to support product certification.
Why Choose SmartTS-HFI Series
Includes harmonics and flicker and/or immunity system coupled with ac power source
Simplified testing saves time and increases productivity
Get results during testing for maximum efficiency
Provides accurate pre-compliance testing, ideal for test houses
IEC Standards
Emissions Test Standards
- IEC 61000-3-2 Harmonics and Inter Harmonics to 16A/phase
- IEC 61000-3-12 Harmonics and Inter Harmonics to 75A/phase
- IEC 61000-3-3 Flicker to 16A/phase
- IEC 61000-3-11 Flicker to 75A/phase
Immunity Test Standards
- IEC 61000-4-11 AC Voltage Dips, Interruptions and Variations to 16A/phase
- IEC 61000-4-13 Interharmonics
- IEC 61000-4-14 AC Voltage Fluctuations
- IEC 61000-4-17 DC Ripple
- IEC 61000-4-27 AC Voltage Unbalance three phase
- IEC 61000-4-28 Frequency Variations
- IEC 61000-4-29 DC Voltage Dips, Interruptions and Variations
- IEC 61000-4-34 AC Voltage Dips, Interruptions and Variations to 75A/phase
Test to EMC Compliance Standards IEC 61000-3 and -4

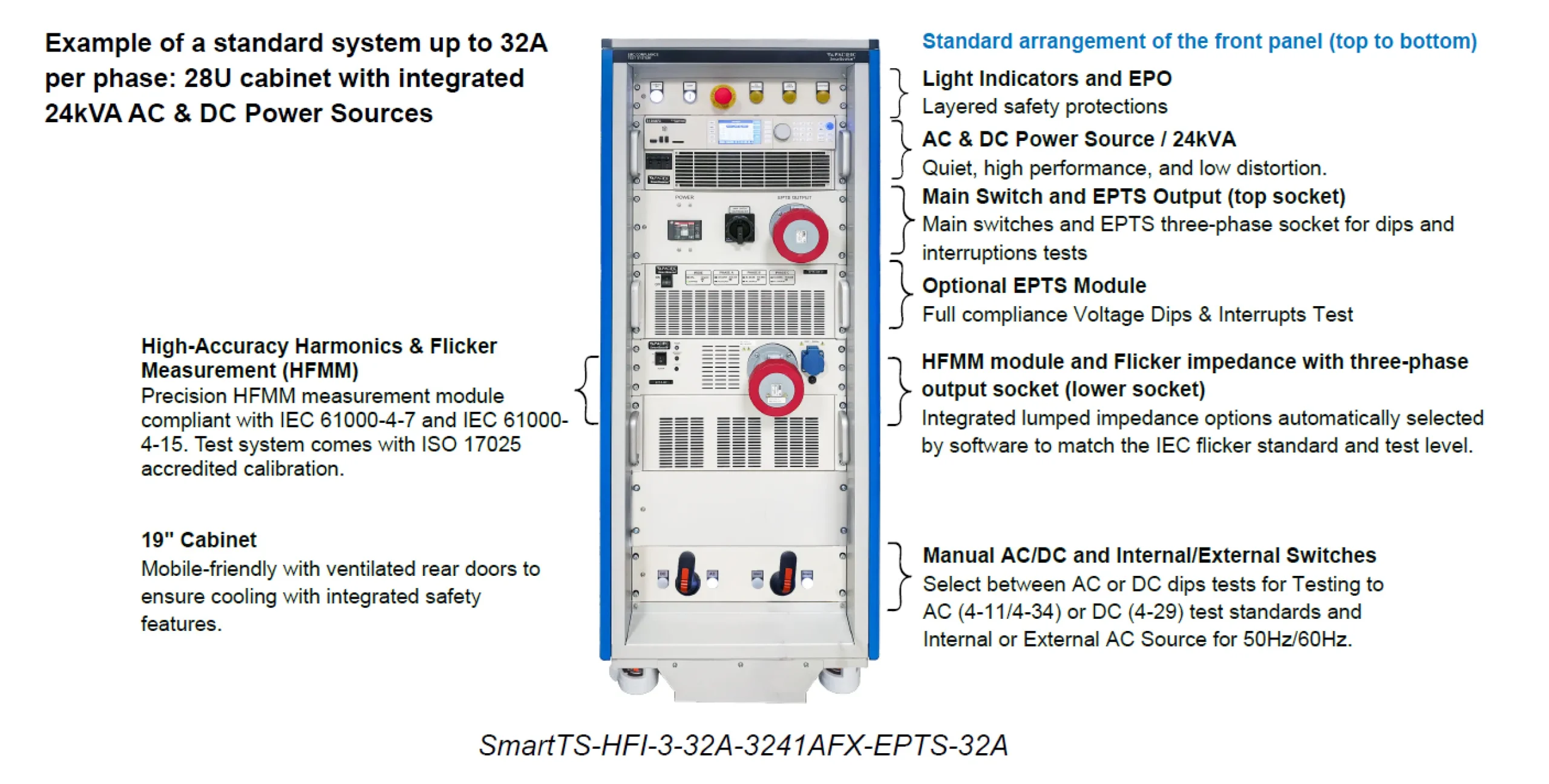

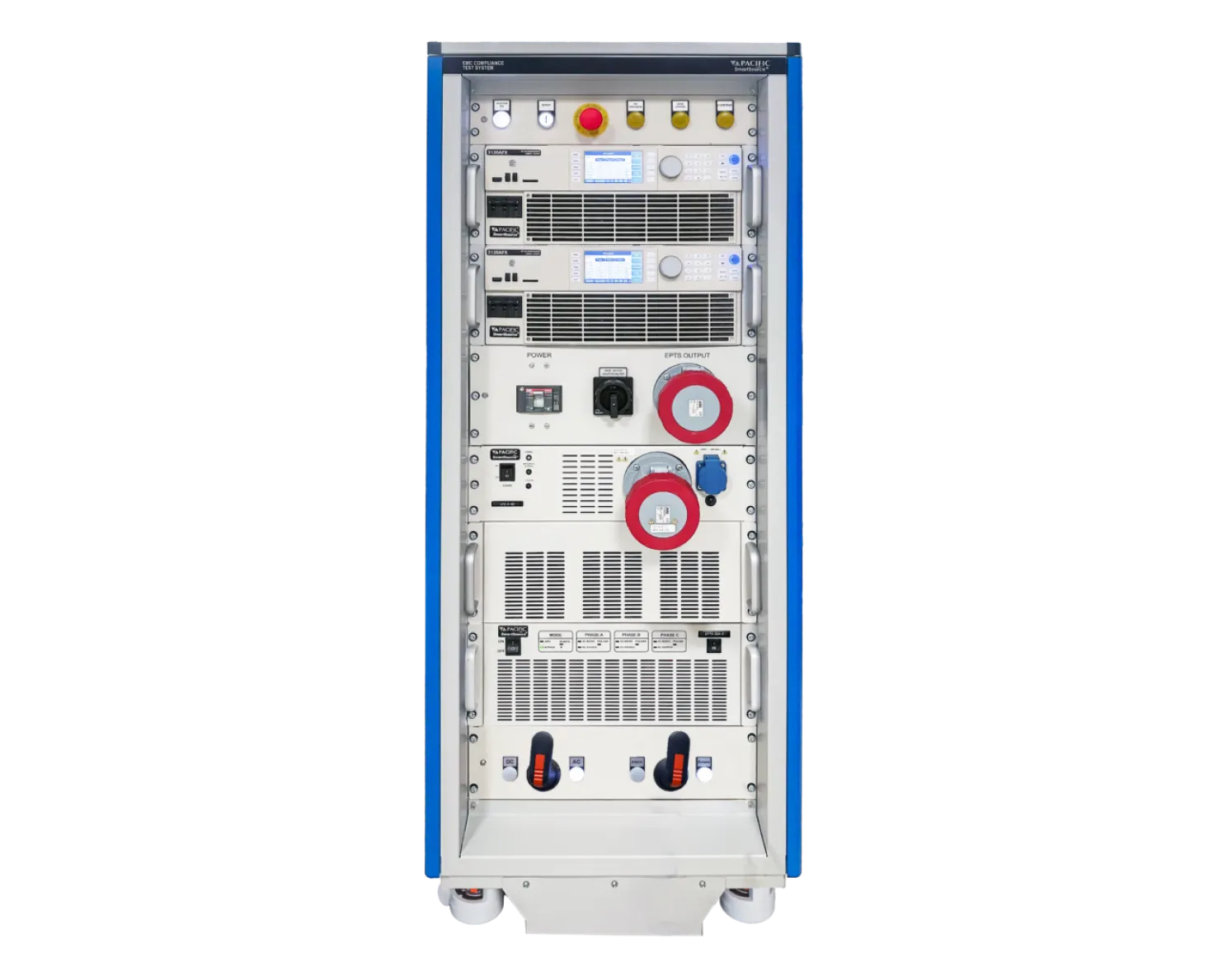

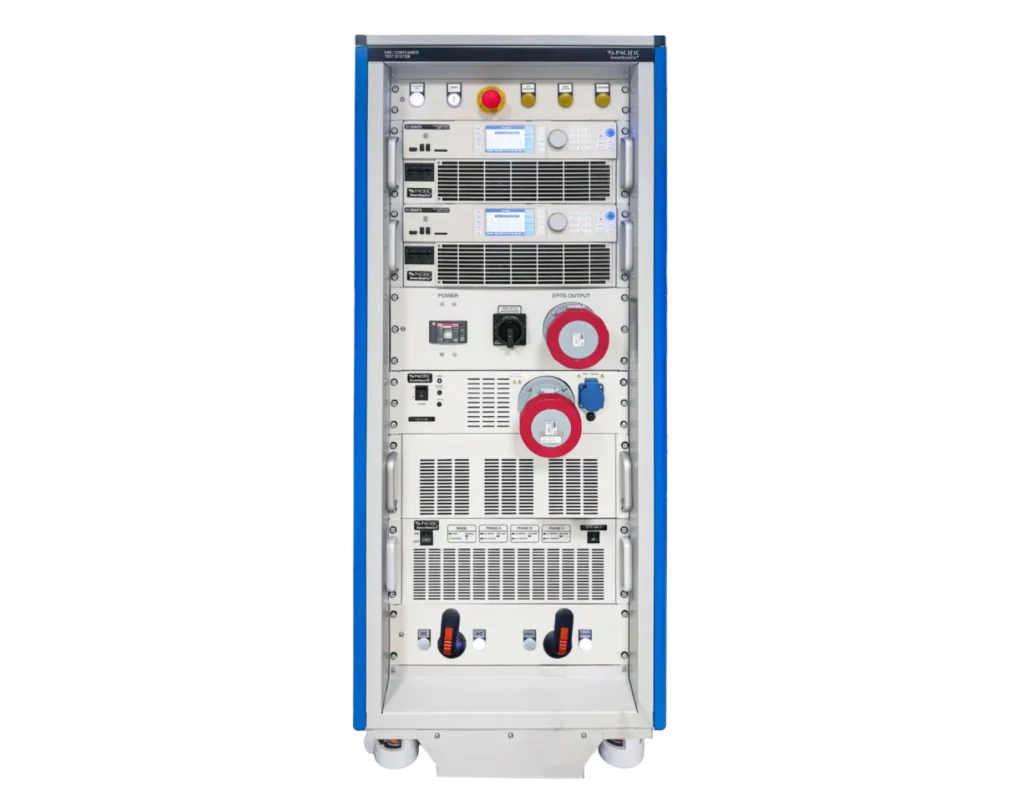

Combined hardware and automation software simplify test on one platform. The SmartTS-HFI Series Harmonics, Flicker, and Immunity Smart Test System is a fully integrated compliance testing platform designed for fast and repeatable testing across single- and three-phase products.SmartTS-HFI reduces test time, minimizes operator error —while scaling from low-power product validation to high-current test requirements.
- High Performance AC & DC Source
- Integrated Platform for Analysis, Instant Automatic Pass / Fail Results
- Smart, Automated Test Execution
- Audit-Ready Reports in One Click

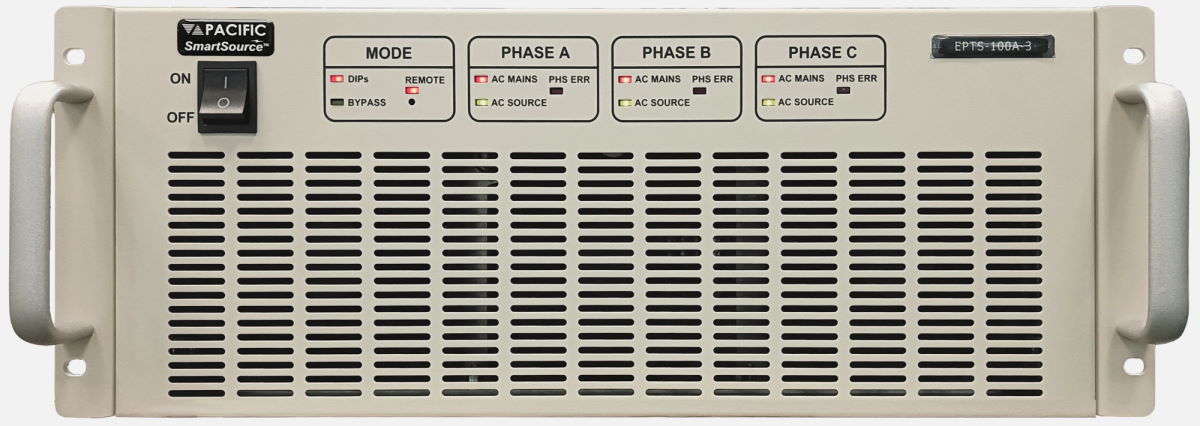

The EPTS module uses solid-state transfer switch technology to meet IEC 61000-4-11/-27/-29/-34 Voltage Dips, Interruptions, Variations & Unbalance standards, ensuring <5 voltage transition times. Dips and interruptions testing with the EPTS requires a programmable AC source for dip levels and an AC mains power line or fixed AC generator to provide the unperturbed 100% voltage level.
- Optional EPTS Module Integrated for Full-Compliance Testing
Real-time data visualization, guided test workflows, and automatic report generation enable engineers to quickly identify compliance issues, shorten debug cycles, and generate complete test documentation with confidence.
- Automated Test Execution & Guided Workflows: Intuitive Windows-based software enforces correct EUT classification, standard selection, and test sequencing.

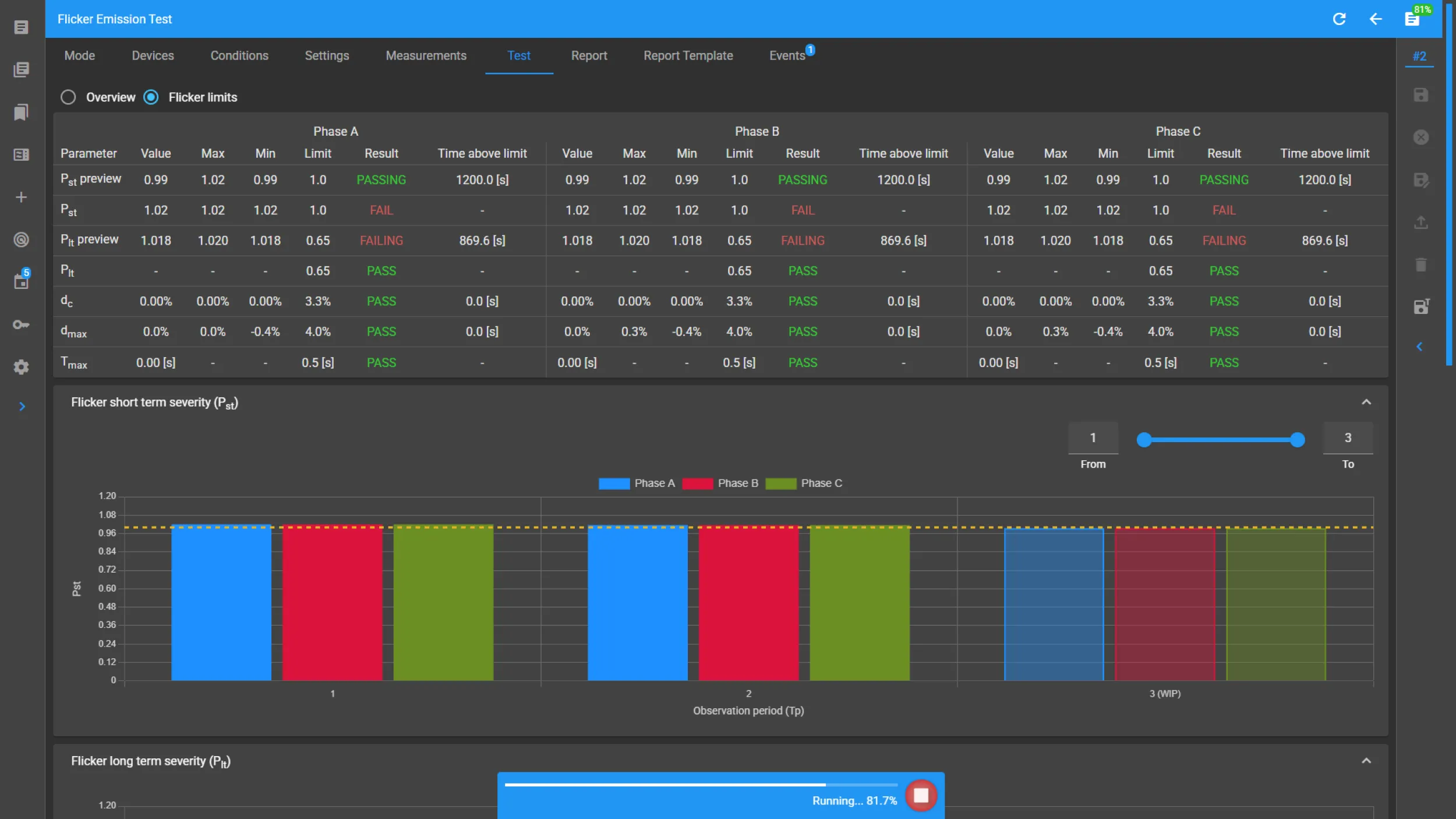

- Real-Time Visualization, Full Data Capture & Logging: Automatic Instant Pass/Fail based on class. Live harmonics and flicker metrics, and limit comparisons displayed during test.
- Automatic Report Generation: Comprehensive IEC-ready test reports generated at the end of each run, including settings, results, and verification.
| Model | Number of Phases | Amps / per Phase | EPTS Option (VAC/VDC1) |
|
|---|---|---|---|---|
| SmartTS-HFI-3-75A | 3: Three-Phase | 75A | EPTS-75A | |
| SmartTS-HFI-3-40A | 3: Three-Phase | 40A | EPTS-32A | |
| SmartTS-HFI-3-32A | 3: Three-Phase | 32A | EPTS-32A | |
| SmartTS-HFI-3-16A | 3: Three-Phase | 16A | EPTS-16A | |
| SmartTS-HFI-1-16A | 1: Single-Phase | 16A-1 | EPTS-16A | |
| SmartTS-HF-1-16A | 1: Single-Phase | 16A | See Note 1 |
Note 1: Limited Version for Harmonics and Flicker test only.
Supported AC & DC Power Sources: AZX, AGX, AFX Series
| Title | Document Type |
|---|---|
SmartTS-HFI Series Harmonics, Flicker and Immunity Test System Datasheet
|
Datasheet |
ECTS2 Series Harmonics and Flicker Test System Manual
|
Manual |
EMC Compliance Testing Overview
|
Video |
