DC Load with Turbo Boost, up to 1.6kW
DC Load with Turbo Boost, up to 1.6kW
Compact half-rack loads delivering 800W with dual range accuracy, available in stand-alone or modular models for high current (up to 160A) or high voltage (up to 500V). TURBO mode which allows short term overload testing up to 3x times the rated current or power of the load up to 1600W for overload testing. Ideal for testing AC/DC supplies, DC/DC converters, chargers, batteries, battery management systems, solar panels and more.
Why Choose 41T Series
Up to 800W continuous, 1600W Turbo, in a compact half-rack (4 U) or modular form
Models support 0–80V or 0–500V; continuous current up to 160A and up to 320A in Turbo
Advanced modes for OCP/OPP, static/dynamic CC,battery BMS, trip testing, protection device, and MPPT testing for solar panels
USB, RS-232, GPIB, LAN; optional Quick Charger Tester (QCT) and Current Waveform Generator (CWG)
Key Specifications
- Max. Power 800W continuous or 1600W in TURBO mode
- Voltage Ranges 0 – 80Vdc or 0 – 500Vdc
- Max. Current Range 160Adc
- Convenient half rack width 4U for bench or rack use
- Turbo DC Loads support 2x times rated power & current for overload testing
- Operating Modes: CC, CP, CR, CV, CC+CV, CP+CV and LED
- OCP/OPP and dynamic CC modes for power supplies, battery discharge with Lithium BMS profiles, trip testing for protection devices, and MPPT for solar panels.
- Built-in Short Circuit Test
- Power Supply Over Current & Over Power Protection Test Mode
- Static and Dynamic CC Modes
- Available Interface Options are USB, RS232, GPIB and LAN
- Available Options: Quick Charger Tester (Opt QCT), Current Waveform Generator (Opt CWG)
- APS DC Load Control windows software
- CE Mark
Compact 800W Benchtop DC Loads

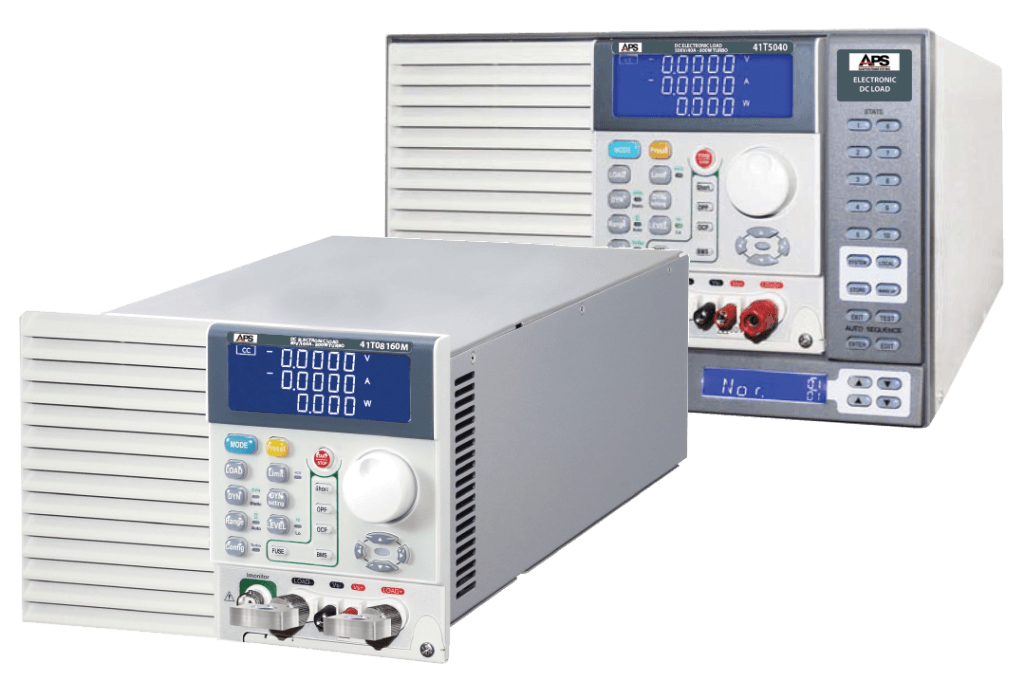

The 41T Bench Series includes two stand-alone and two modular models, offering either high current (up to 160A) or high voltage (up to 500V). All models feature dual range operation for enhanced accuracy and resolution, with 800W continuous power and 1600W in TURBO mode for short-term overloads up to 3× rated current or power. Input ranges include 0–80V (41T08160) and 0–500V (41T5040), each supporting a wide V-I constant power load profile. The compact design suits both bench use and rack mounting, with modular versions compatible with the 44M02 and 44M04 mainframes.
APS 41T Series DC loads provide flexible testing with built-in metering, automated sequencing, and fast slew rates. Features include OCP/OPP and dynamic CC modes for power supplies, battery discharge with Lithium BMS profiles, trip testing for protection devices, and MPPT for solar panels.
- Versatile Loads – Microcontroller-based with built-in V, I, P, R metering.
- Power Supplies – Low-V/high-I or high-V/low-I models; supports sequencing and fast slew rates for loop/stability tests.
- Design Verification – OCP/OPP modes, dynamic CC, and analog input for arbitrary waveforms.
- Batteries – Programmable discharge, high-resolution current, built-in profiles, and Lithium BMS test mode.
- Protection Device Testing – Automated step-current tests for fuses, breakers, and PTCs.
- Solar Testing – MPPT mode for panel and cell testing.
The Quick Charger Tester (Opt QCT) is a single-channel controller for R&D testing and verification of modern fast chargers. It simulates fast charge protocols for mobile phones, tablets, and notebooks, enabling rapid charger evaluation.
Supported Charging Protocols are: QC2.0, QC3.0, PE+, PE+2.0, USB PD2.0
| Model | Description | Nom./Turbo Pwr (W) | Max Voltage (V) | Nom./Turbo Curr (A) | |
|---|---|---|---|---|---|
| 41T08160 | DC Load, Half Rack | 800 / 1600 | 80 | 160 / 320 | |
| 41T08160M | DC Load, Modular | 800 / 1600 | 80 | 160 / 320 | |

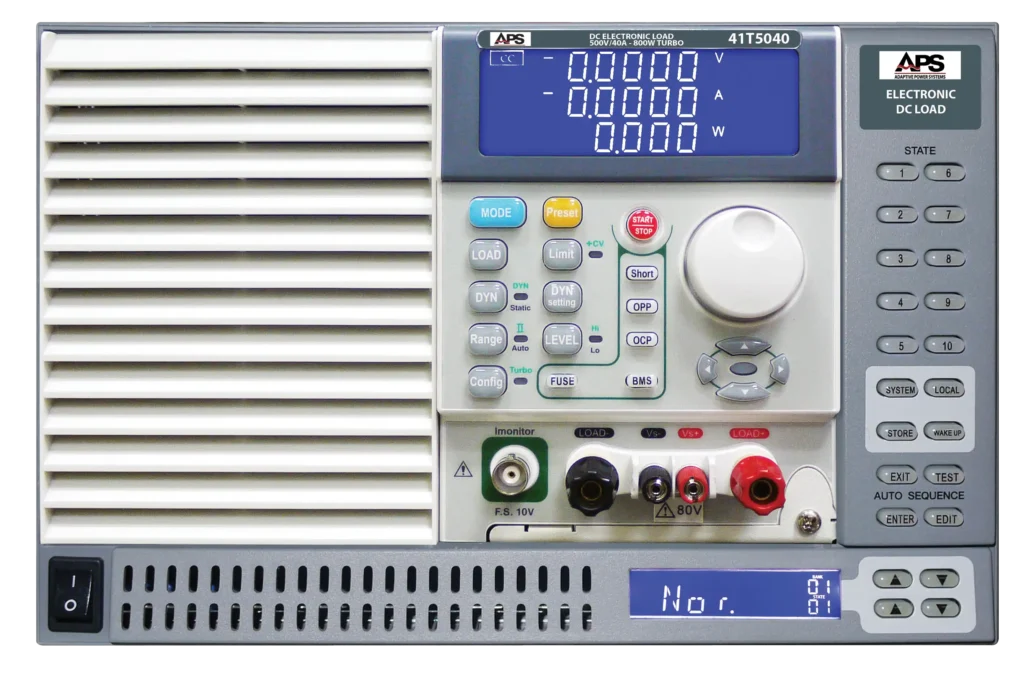

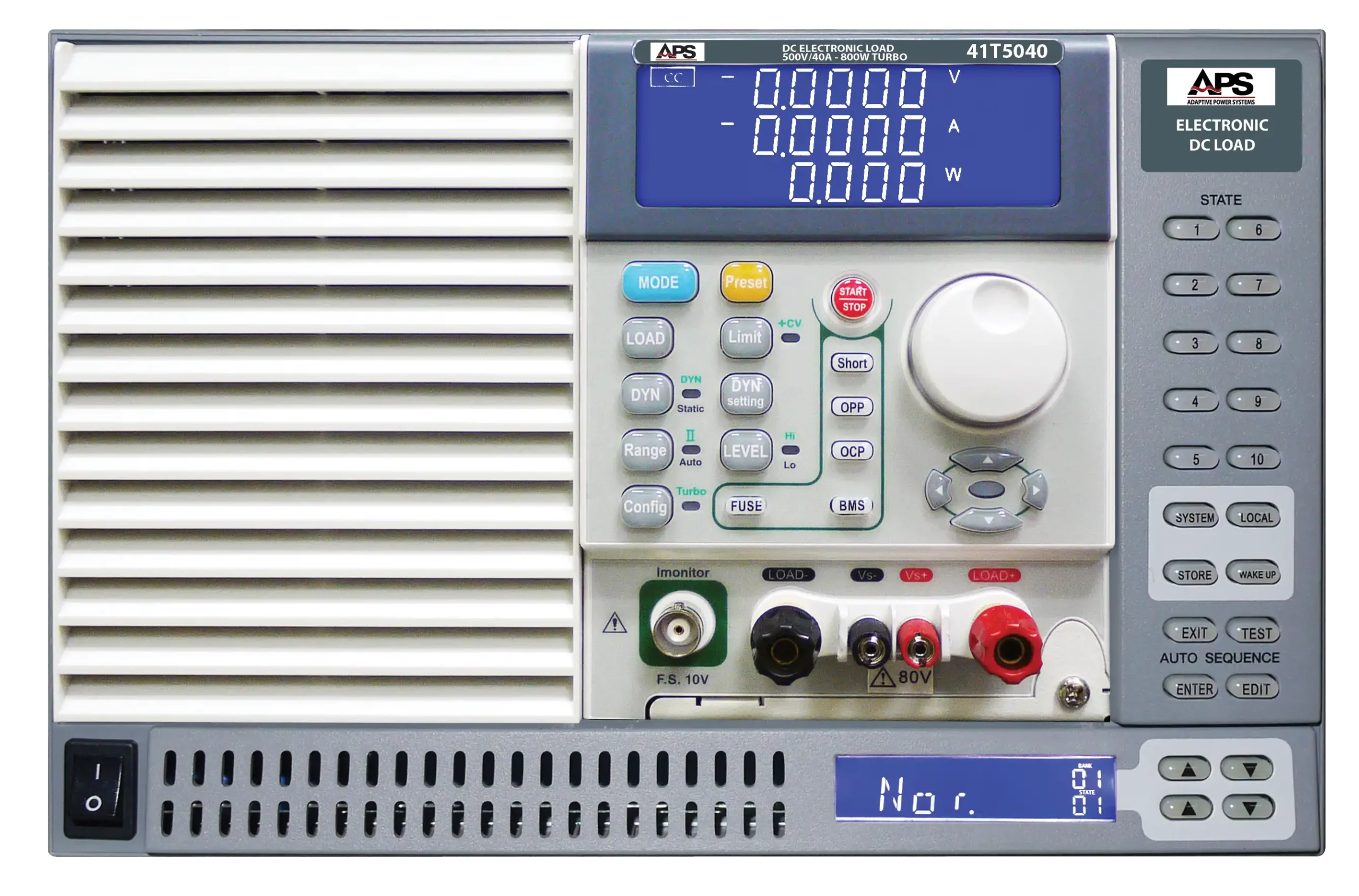

| 41T5040 | DC Load, Half Rack | 800 / 1600 | 500 | 40 / 80 | |
| 41T5040M | DC Load, Modular | 800 / 1600 | 500 | 40 / 80 |
Options
Quick Charger Tester (Opt QCT): This plug-in module works with single channel 41L Series modular DC loads and provides support for testing mobile device chargers that conform to the following charging protocols:
- MediaTek PumpExpress
- MediaTek PumpExpresss+
- MediaTek PumpExpress+ 2.0
- Qualcomm Quick Charge 2.0
- Qualcomm Quick Charge 3.0
- USB PD2.0

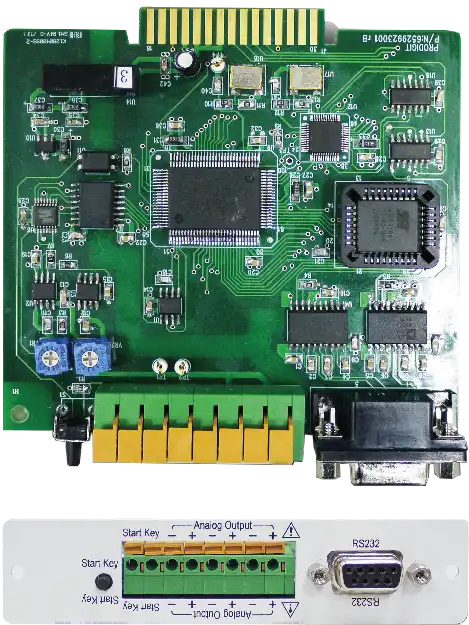

Current Waveform Generator (Opt CWG): This plug in module is available for 44M DC Load mainframes and provides arbitrary current waveform programming for up to four DC load modules.
