AC & DC Power Source with Advanced Transients, 6kVA to 180kVA
AC & DC Power Source with Advanced Transients, 6kVA to 180kVA

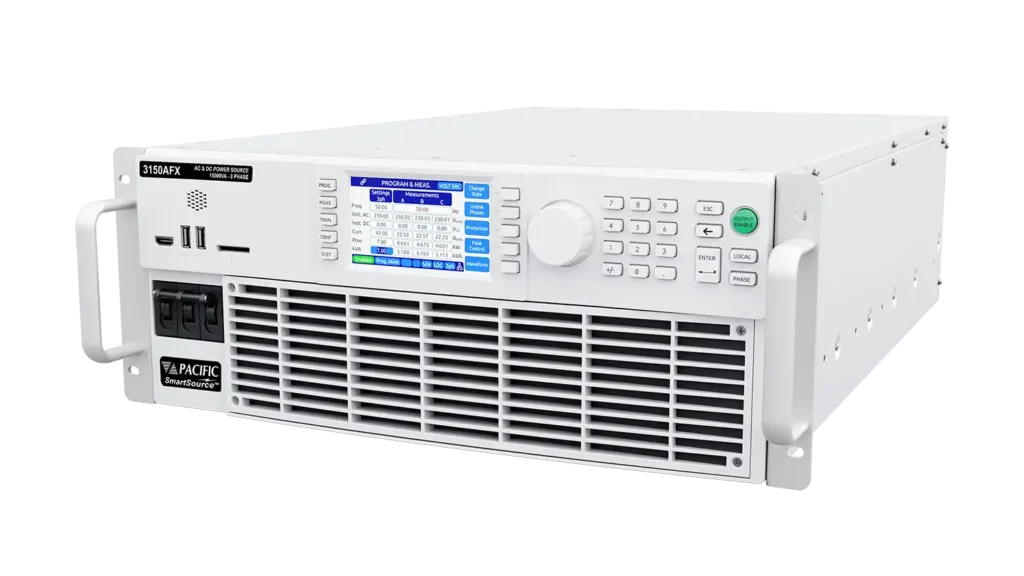

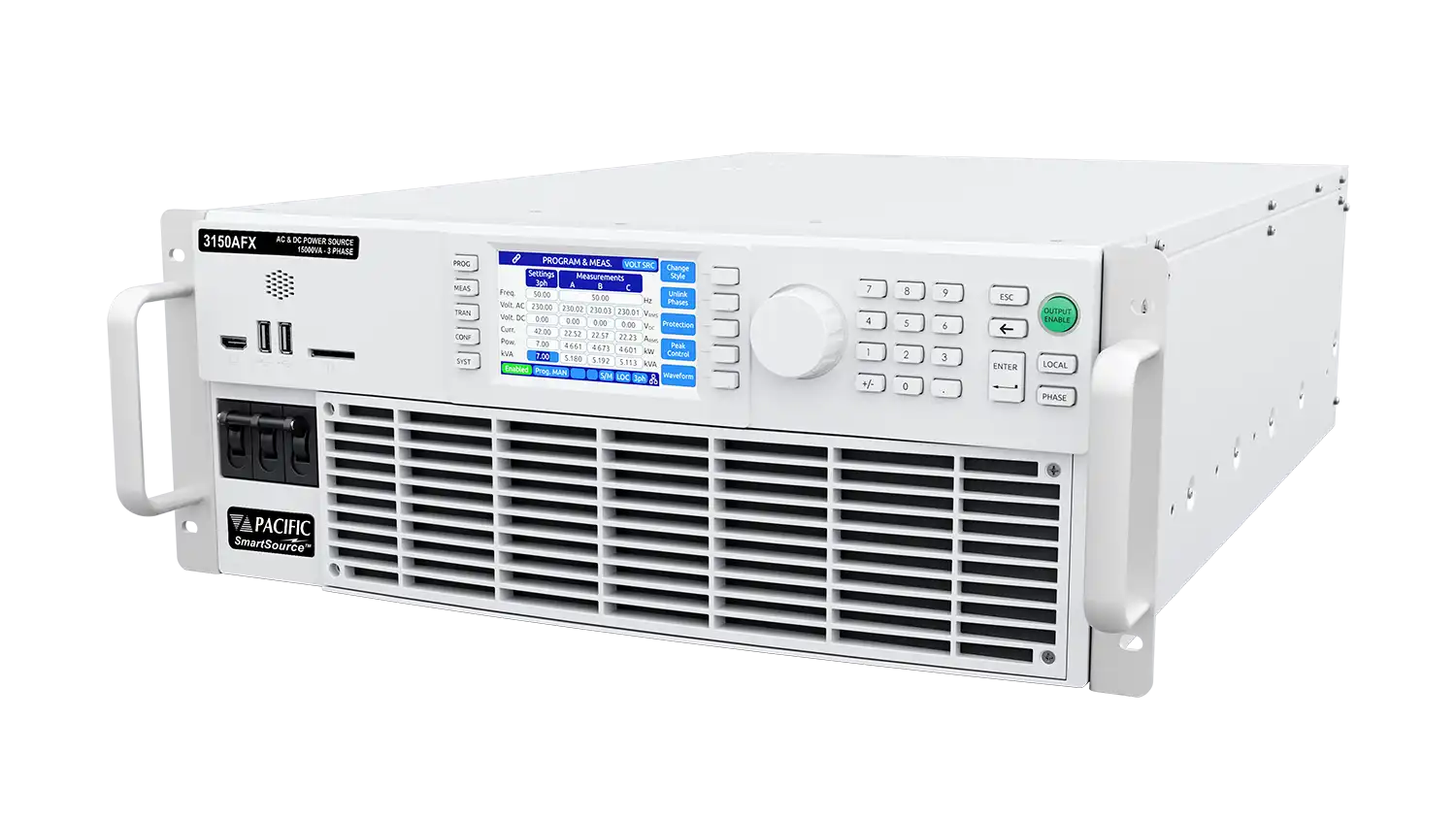

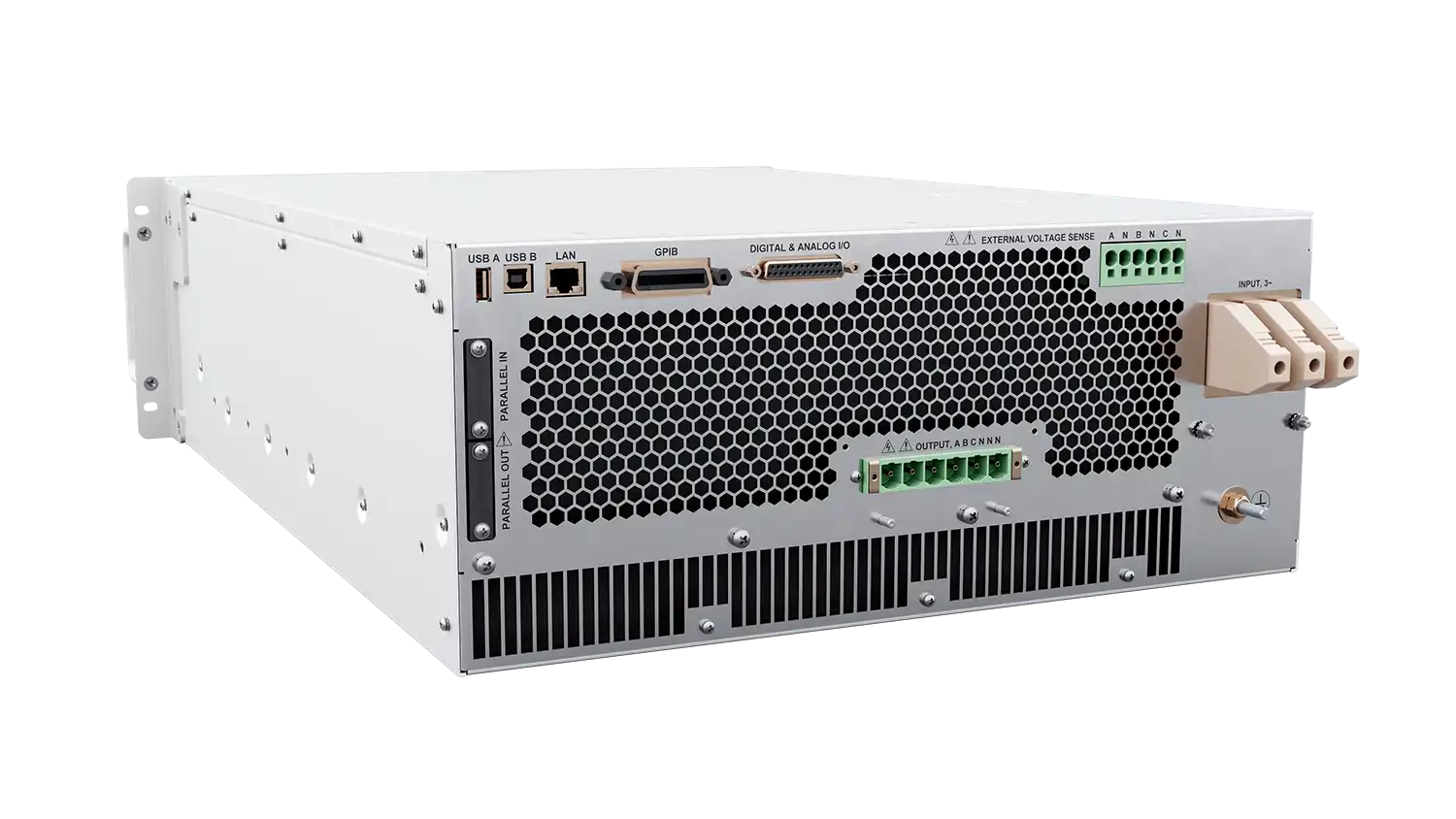

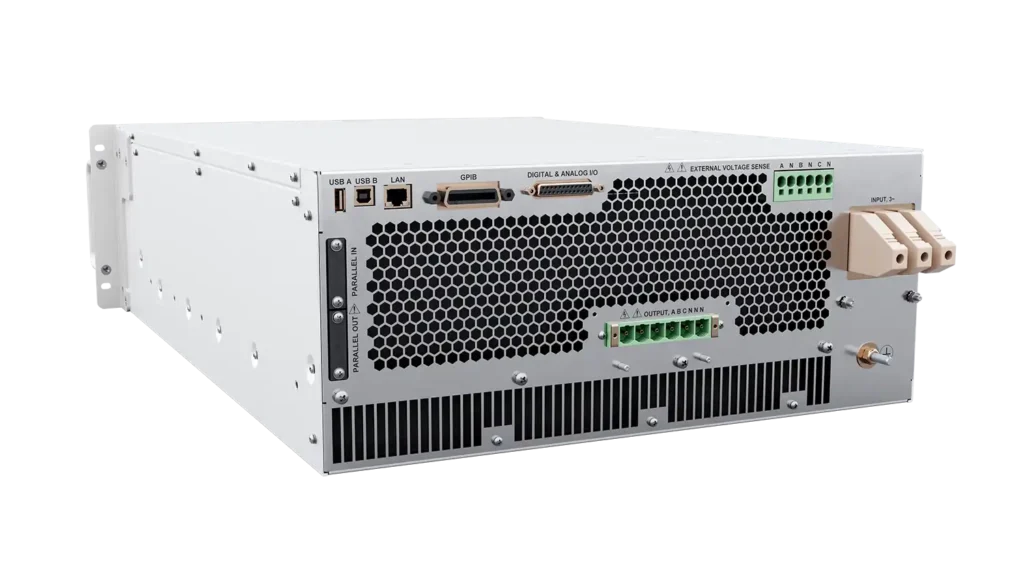

The AFX Series is a high-power-density AC & DC Power Source, delivering 6–15kVA in 4U, parallelable up to 180kVA. Advanced transients capability ideal for testing high frequency conversion applications including aerospace, data center servers, medical, industrial, power supplies, and more. AC + DC applications.
Why Choose AFX Series
85% energy efficient and unique Sleep Mode; Cool, quiet, and efficient operation
High Frequency, AC & DC Power Source, Current Source with Load option
Sophisticated programming capability for AC & DC
AC, DC, AC+DC, DC+AC, and 6-form configurations for multi-channel capability
Key Specifications
- Single, Split, Three-Phase
- Modular, scalable power 6kW up to 15kW in 4U

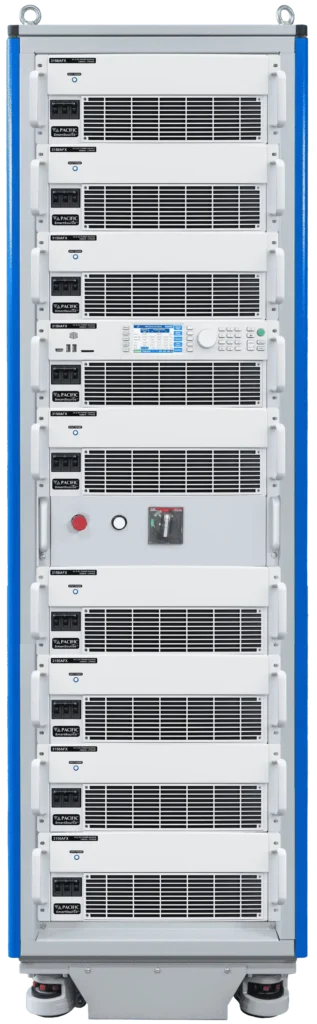

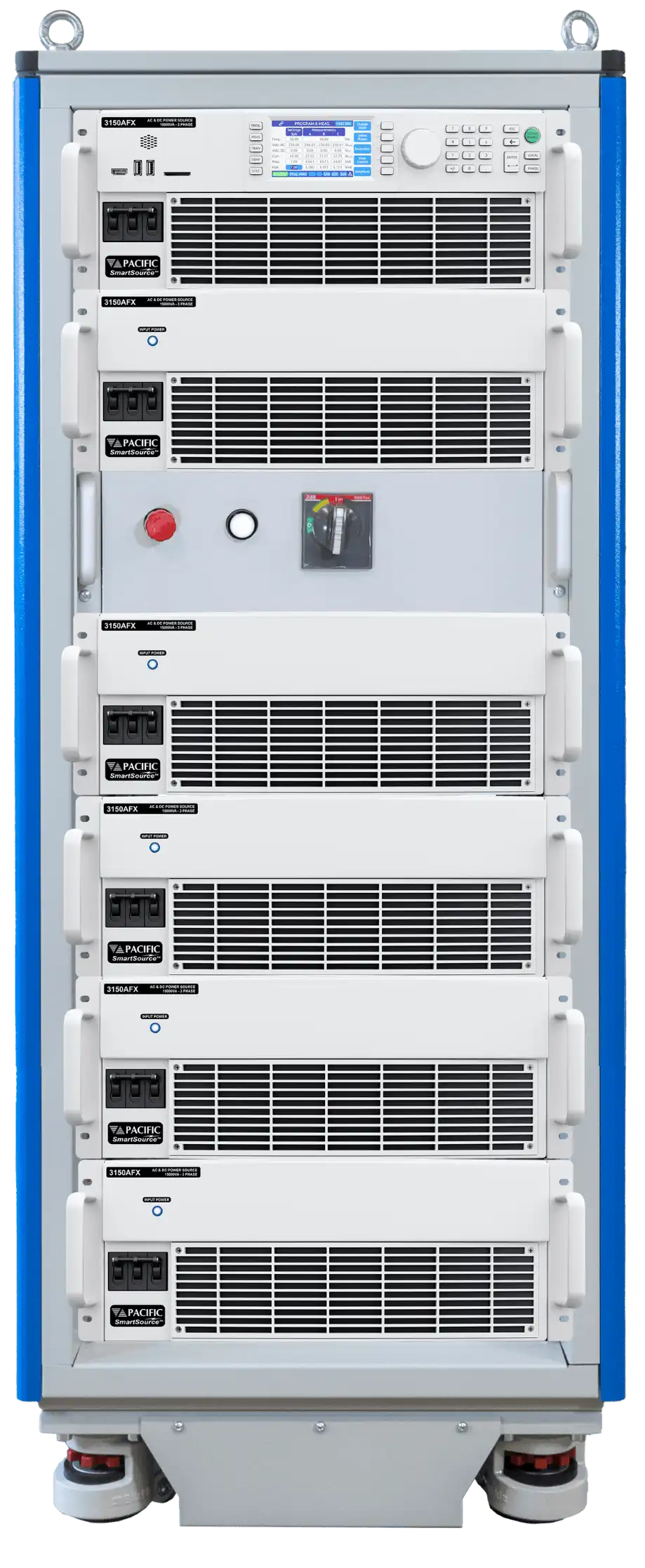

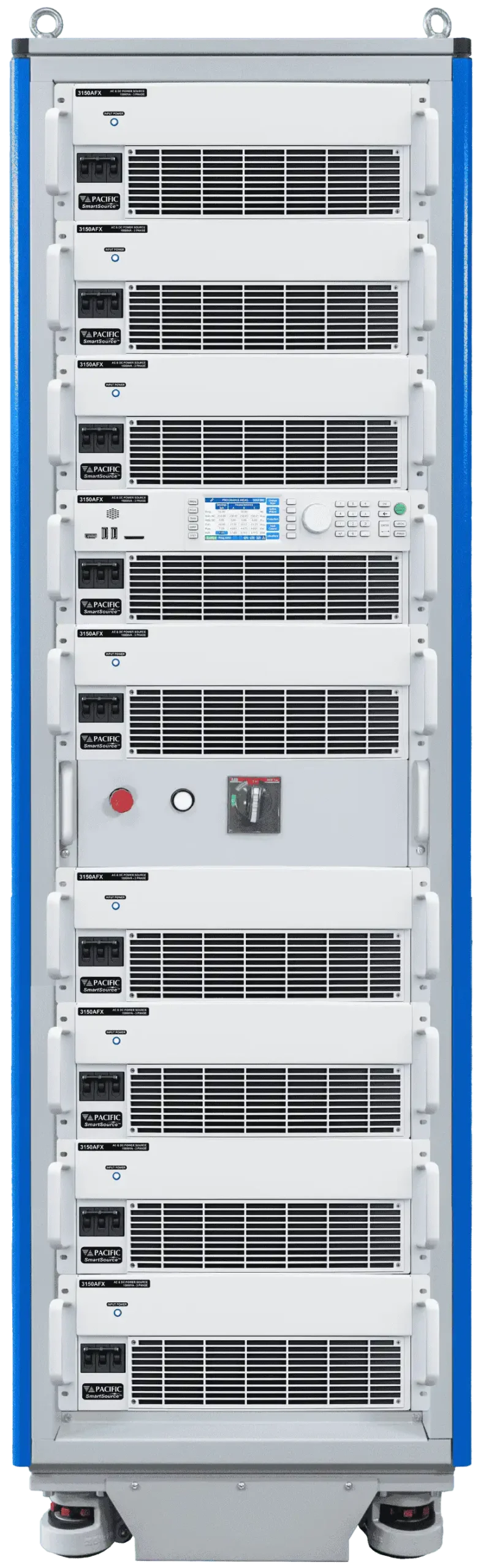

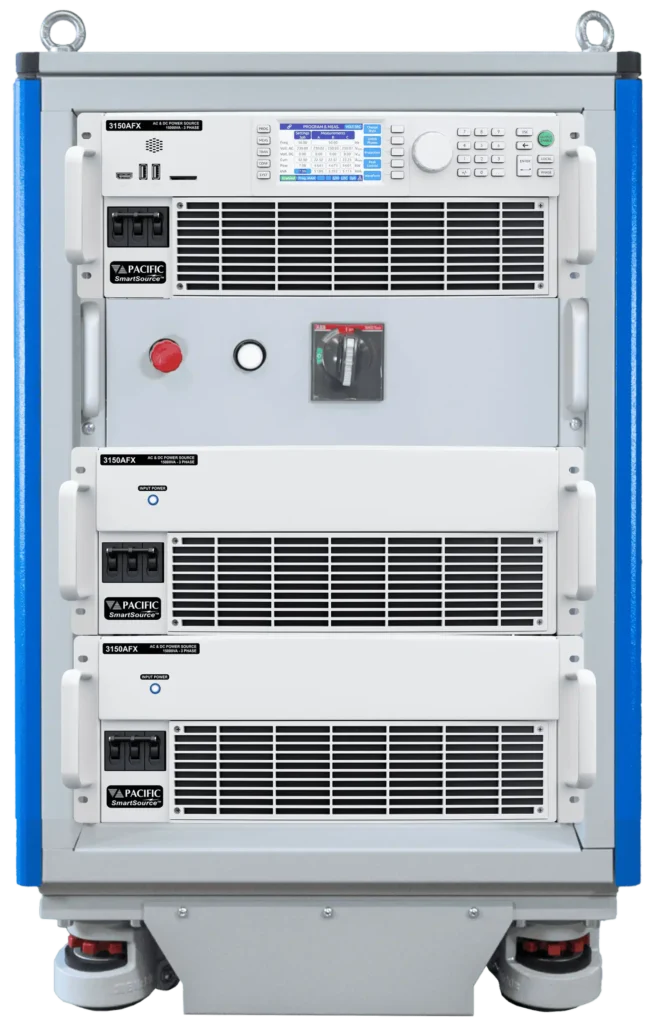

- Up to 180kW in a single 19″ cabinet
- Constant Power Voltage Range: 333V L-N/576V L-L/425Vdc
- Extended Voltage Operation: 333V L-N / 566V L-L
- 15Hz-1000Hz; Extended Range: 1Hz to 3,000Hz
- AC, DC, AC+DC, DC+AC output capabiltiy; Full power available in AC and DC
- 85% energy efficient and unique Sleep Mode; Cool, quiet, and efficient operation
- Full Galvanic Isolation from Facility AC Input to Load Input and Between Input Phases / Channels

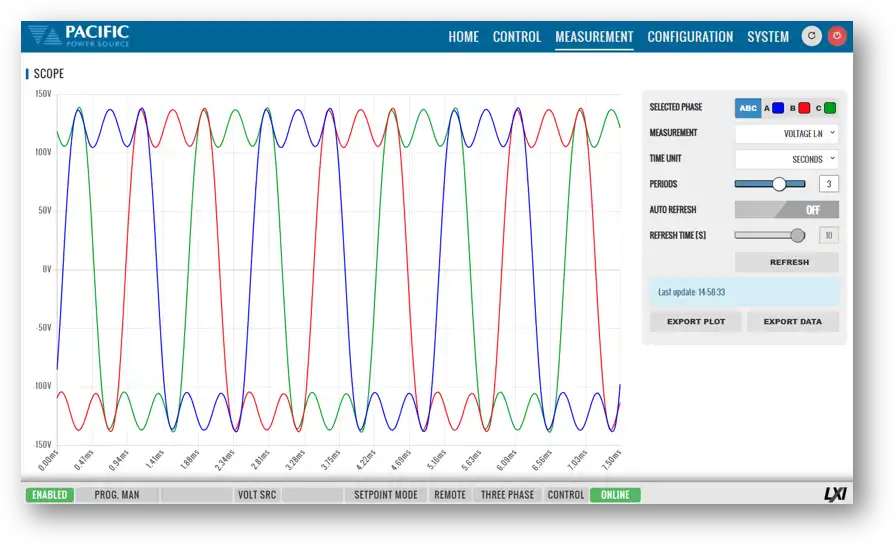

- Advanced waveform capture & scope function
- Safety Programmable Protection Limits for real power, apparent power, over voltage and over temperature
- Unique Sleep Mode saves energy and extends product life
- 6 Form Configuration – Test AC or DC on independent phases/channels
- Programmable Impedance
- Harmonics measurement for voltage and current on all phases
- Sine, Square, Triangle, THD and Arbitrary waveforms
- 200 programs for transient testing (List, Pulse, Step Modes)
- Available in 208-240V or 380-480V 3 Phase AC input with Active PFC
- Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
- Precision Voltage Programming – 0.02% with Continuous Self Calibration (CSC)

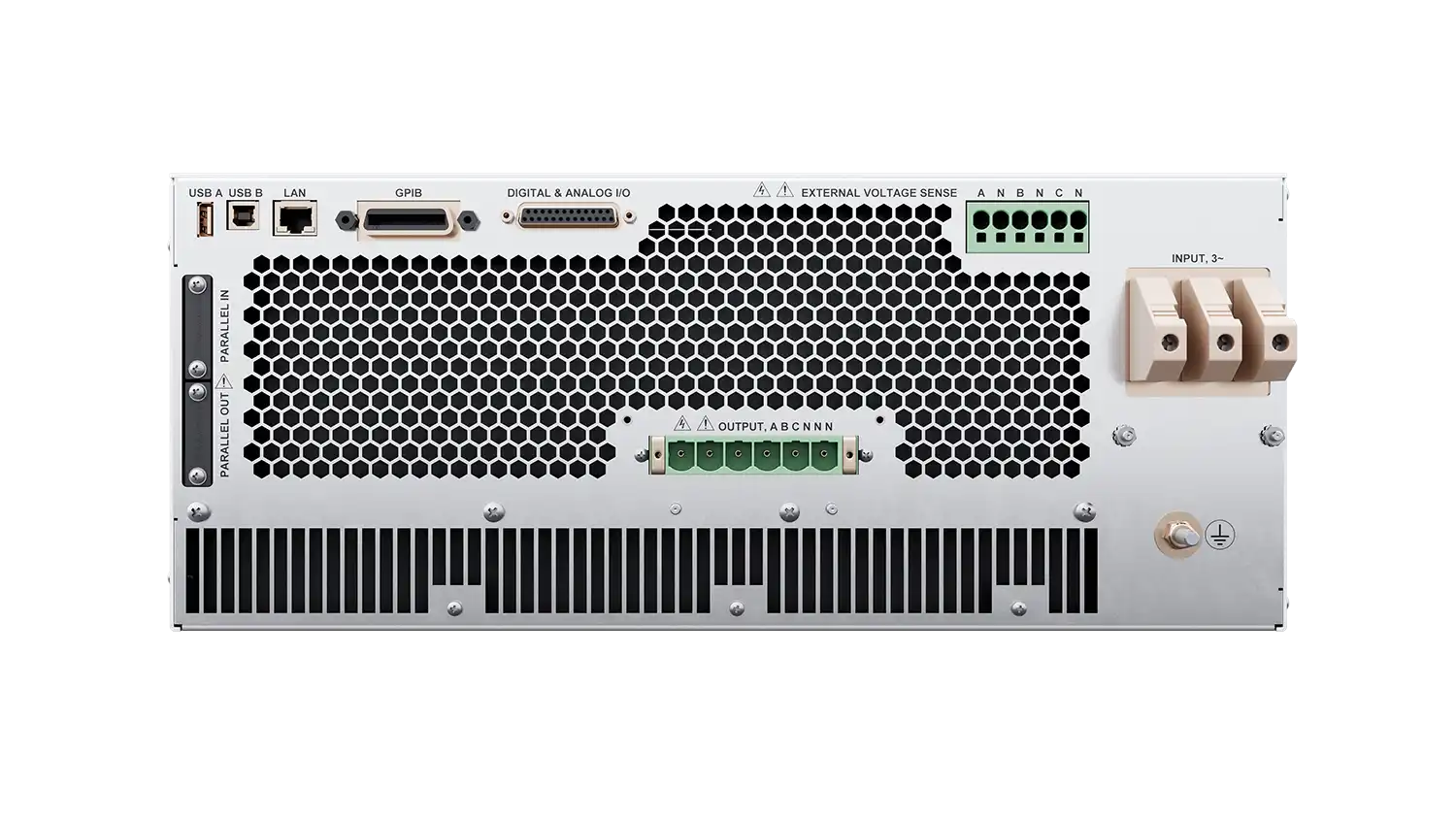

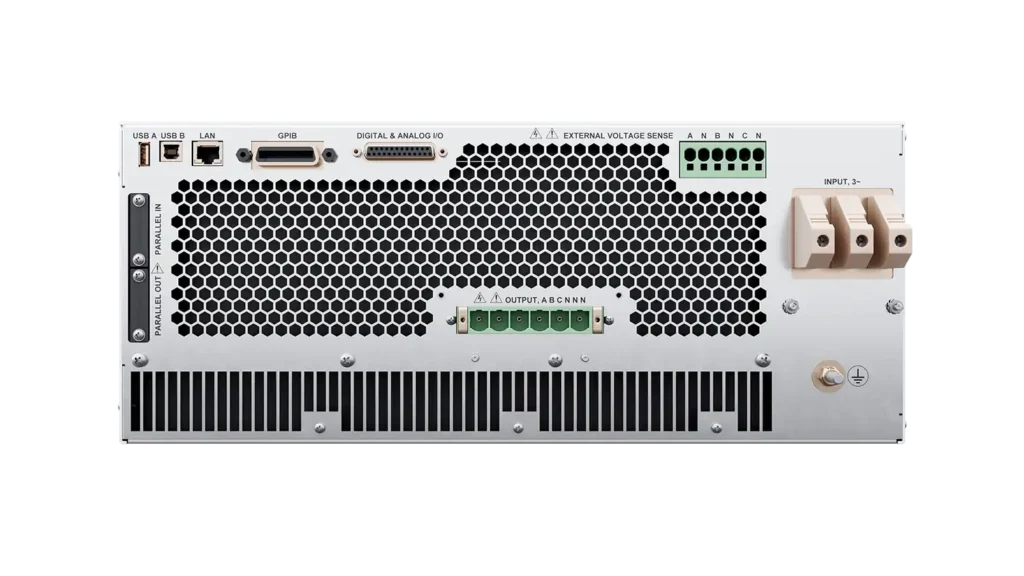

- Extensive Analog and Digital I/O for system integration
- RS-232, USB, Modbus, TCP, GPIB, SCPI compatibility; IVI Instrument Drivers
- CE (EMC/Safety) Marked
- Built-In SmartSource Suite Remote Control Platform
AC & DC Power Source with Advanced Transients

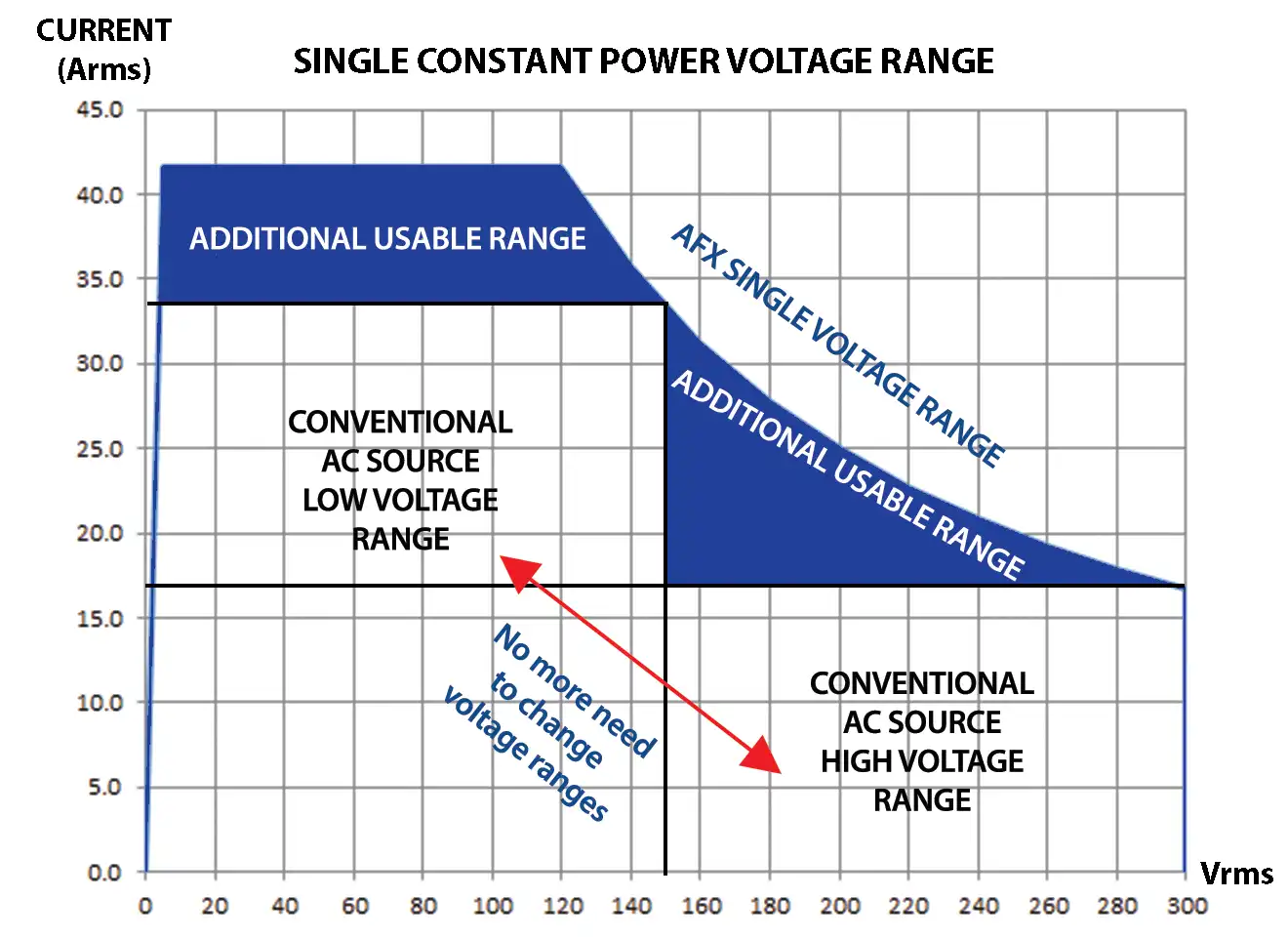

The constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminating the need to switch between voltage ranges. This prevents potential disruptions in output power. Control and operational features provide a high degree of application versatility and ease of use for the test engineer. Applications range from simple, manually controlled frequency conversion to harmonic immunity testing and sophisticated transient simulation.
- Wide operating envelope
- More current at lower voltage
- Test broad range of power
- Seamless transition of input power
The AFX Series AC/DC Programmable Power Source provides advanced transients capability including List, Pulse, Step Modes, and 200 arbitrary waveform programs to start from. Edit, customize and save the programs to simplify testing.
Simultaneous AC and DC operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC, AC+DC, DC+AC output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC.
- AC, DC, AC+DC, DC+AC configurations
- Simultaneously test AC and DC, Source or Load on separate phases
- Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.
Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device
- Access on any web browser in real-time
- Enhanced visualization and reporting tools
- View and control on multiple windows
- Save time and increase productivity
| Model | Rated Power (VA) | Output Form | Output Volts-Max (Vac/Vdc¹) | Output Amps/Phs (Aac/Adc²) | Input Power Form (3) | Height (U) (4) | Weight (LBS/KG) | ||
|---|---|---|---|---|---|---|---|---|---|
| 360AFX | 6000 | 1,2,3 Ø | 333 (L-N) / 425 | 16.7 / 8.3 | 3Ø | 4 | 112/51 | ||
| 390AFX | 9000 | 1,2,3 Ø | 333 (L-N) / 425 | 25.0 / 12.6 | 3Ø | 4 | 112/51 | ||
| 3120AFX | 12000 | 1,2,3 Ø | 333 (L-N) / 425 | 33.3 / 16.7 | 3Ø | 4 | 112/51 | ||

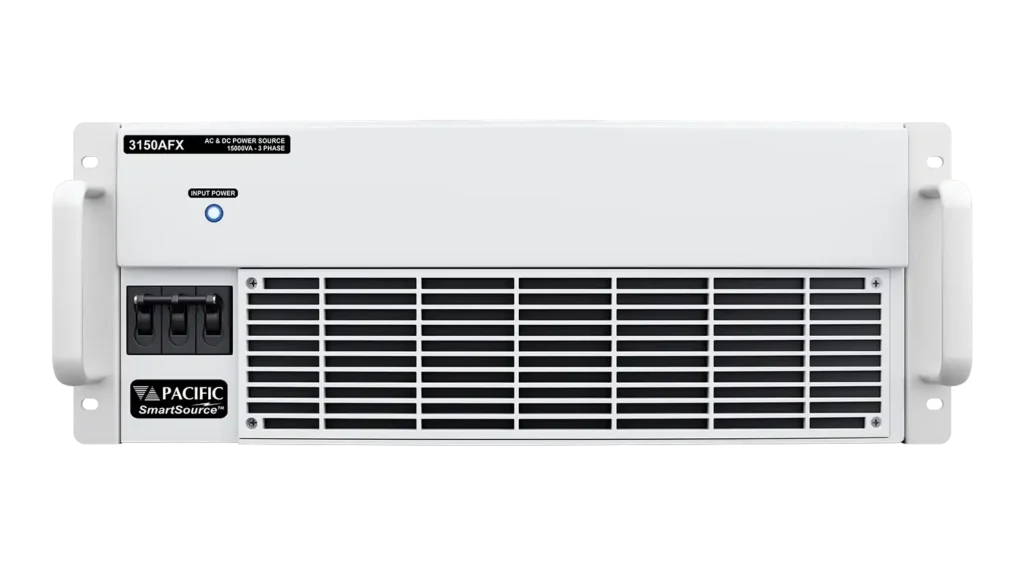

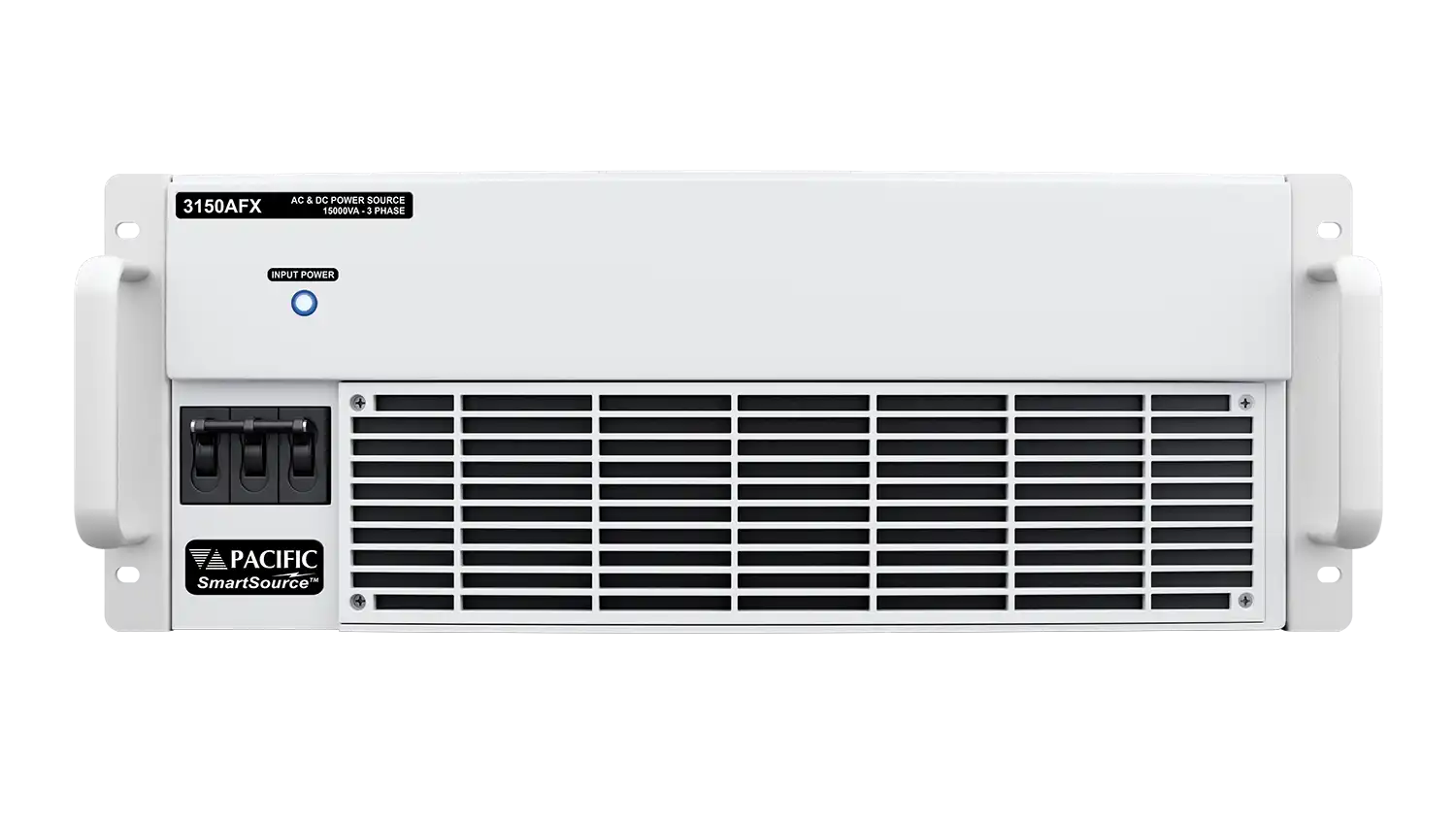

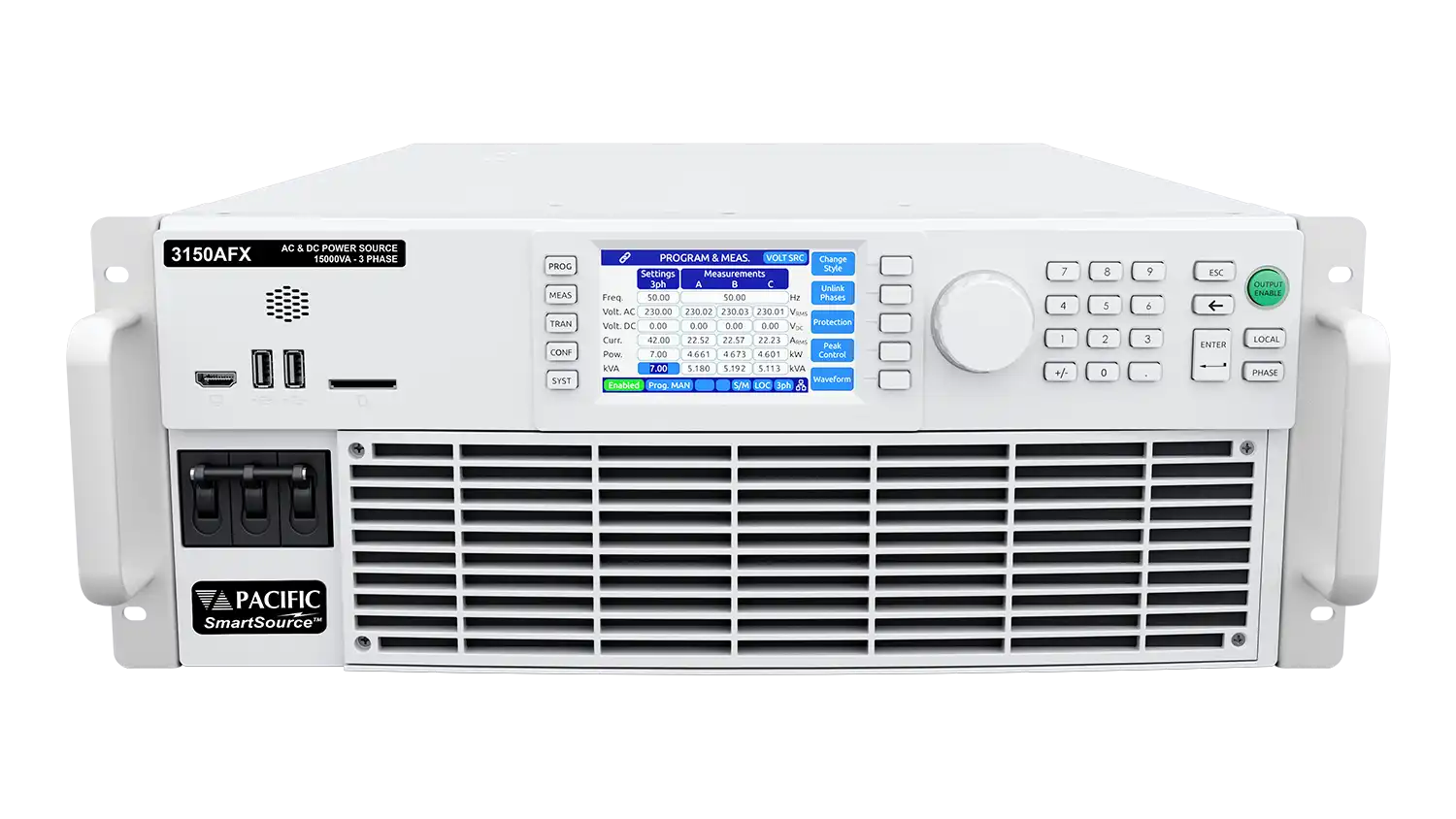

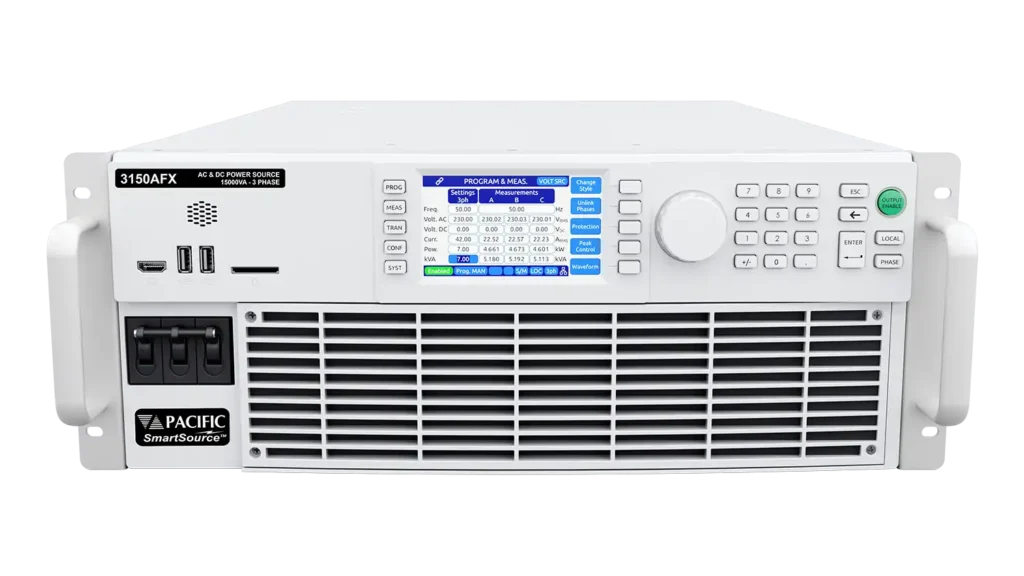

| 3150AFX | 15000 | 1,2,3 Ø | 333 (L-N) / 425 | 41.7 / 21.0 | 3Ø | 4 | 112/51 |
| Model | Rated Power (VA) | Output Form | Output Volts-Max (Vac/Vdc¹) | Output Amps/Phs (Aac/Adc²) | Input Power Form (3) | Height (U) (4) | Weight (LBS/KG) | ||
|---|---|---|---|---|---|---|---|---|---|

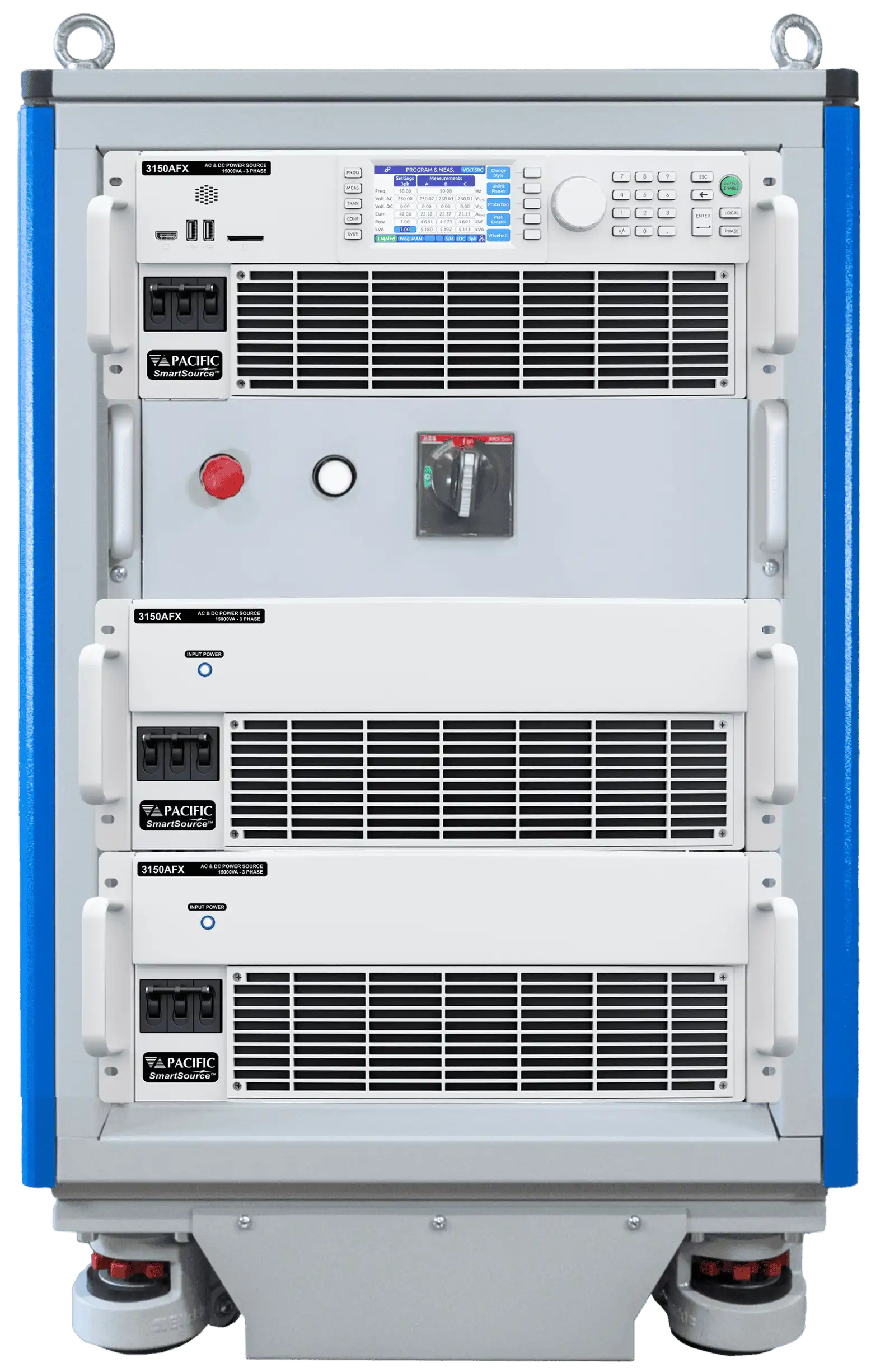

| 3180AFX | 18000 | 1,2,3 Ø | 333 (L-N) / 425 | 50.0 / 25.0 | 3Ø | 15 | 320/146 | ||
| 3240AFX | 24000 | 1,2,3 Ø | 333 (L-N) / 425 | 66.7 / 33.4 | 3Ø | 15 | 320/146 | ||
| 3300AFX | 30000 | 1,2,3 Ø | 333 (L-N) / 425 | 83.3 / 41.7 | 3Ø | 15 | 320/146 | ||
| 3450AFX | 45000 | 1,2,3 Ø | 333 (L-N) / 425 | 125.0 / 62.5 | 3Ø | 15 | 435/197 | ||

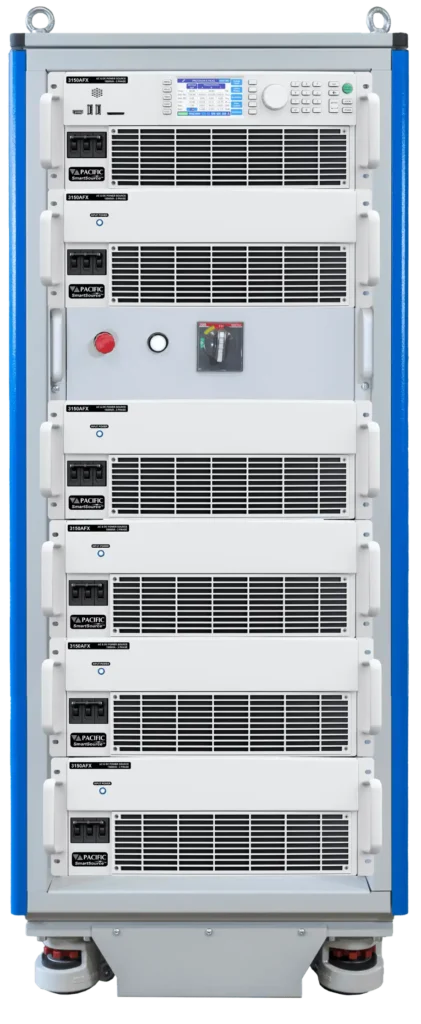

| 3600AFX | 60000 | 1,2,3 Ø | 333 (L-N) / 425 | 166.7 / 83.3 | 3Ø | 28 | 550/249 | ||
| 3750AFX | 75000 | 1,2,3 Ø | 333 (L-N) / 425 | 208.3 / 104.1 | 3Ø | 28 | 665/302 | ||
| 3900AFX | 90000 | 1,2,3 Ø | 333 (L-N) / 425 | 250.0 / 125.0 | 3Ø | 28 | 780/354 |
