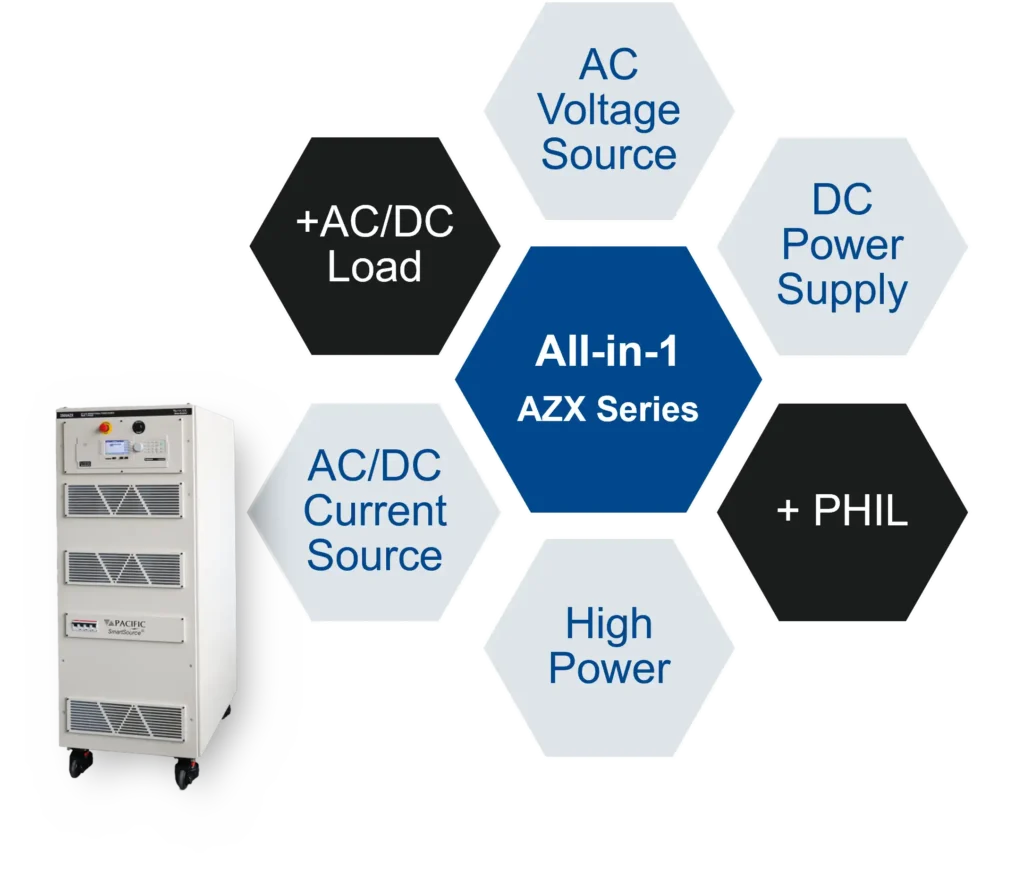

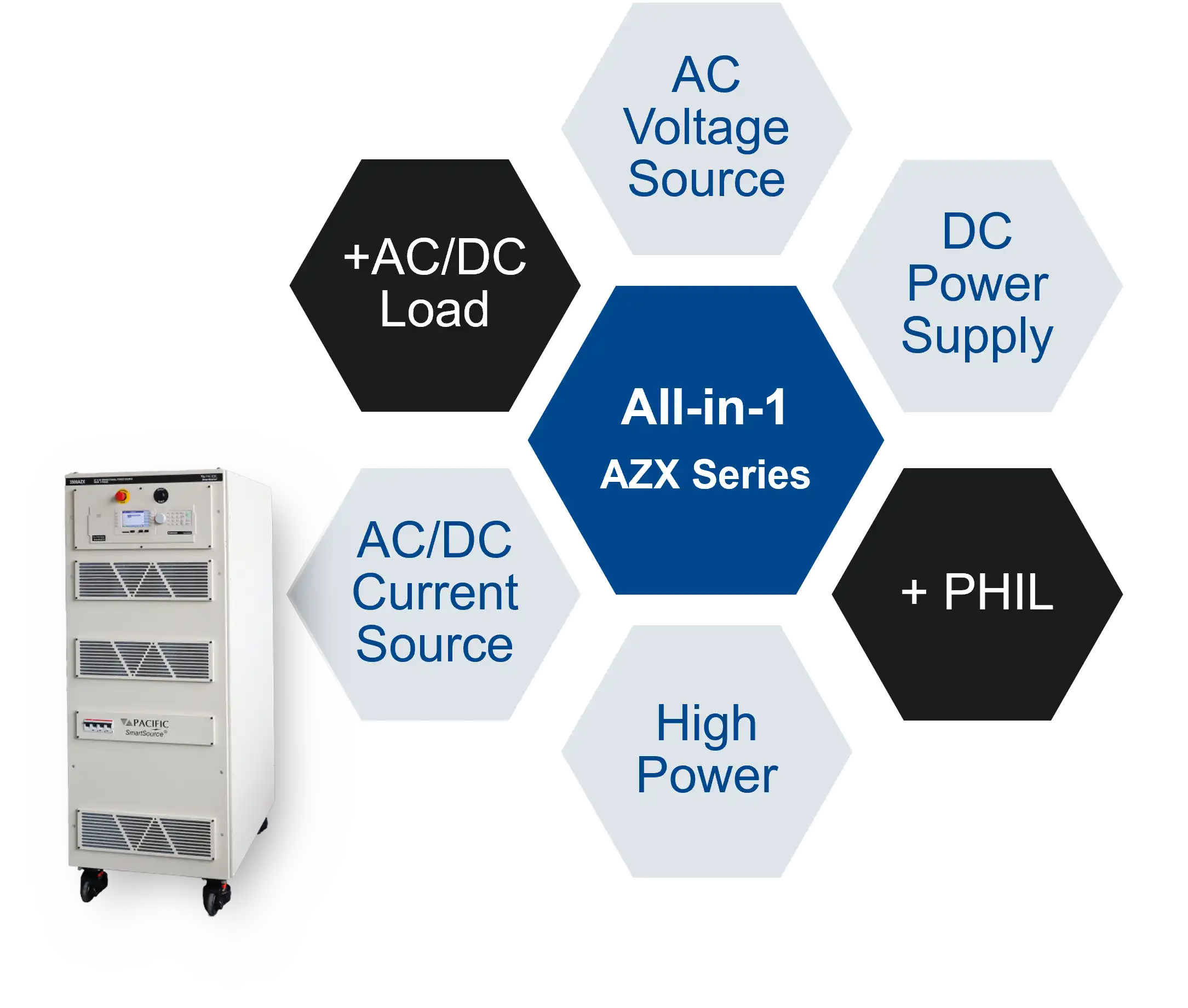

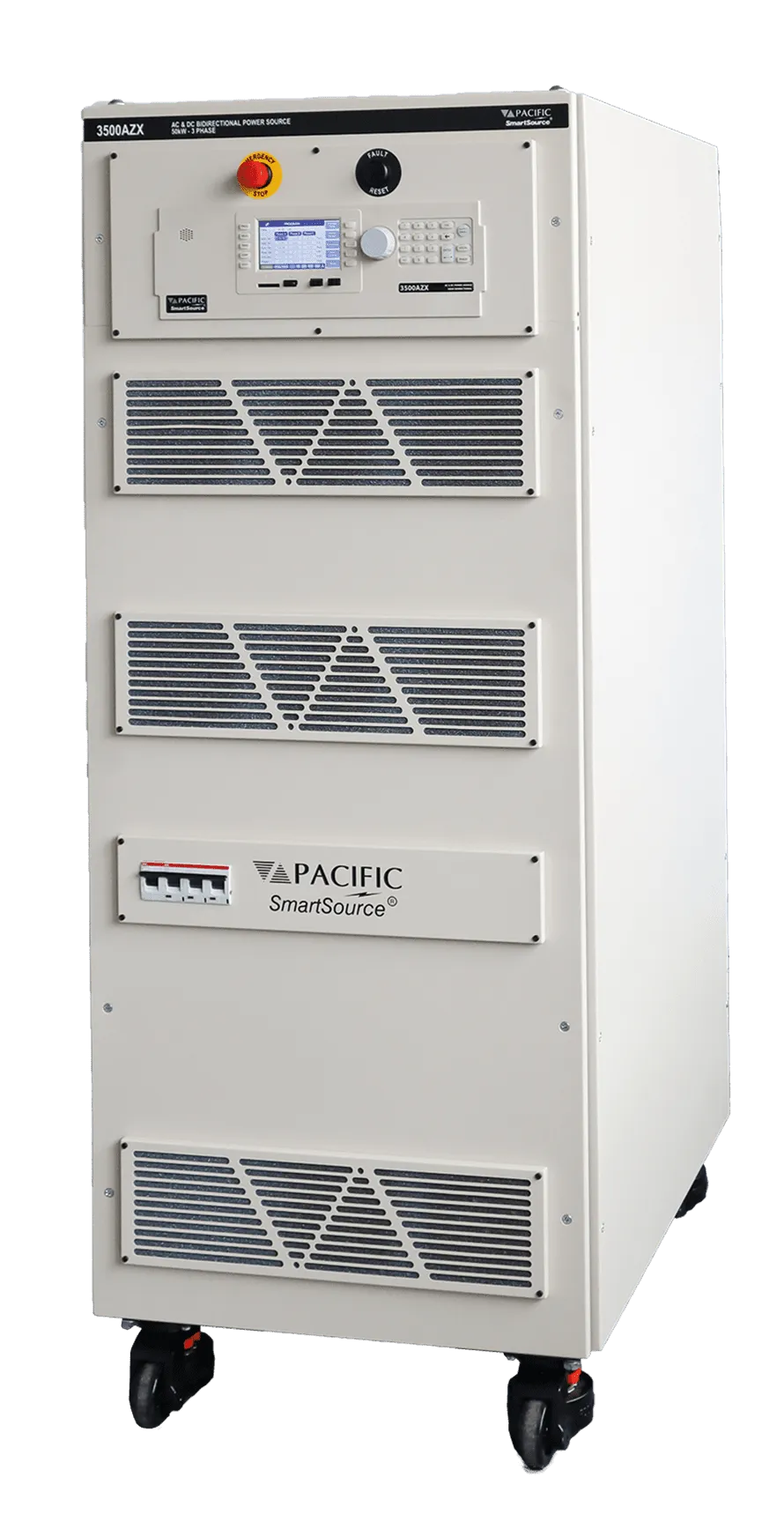

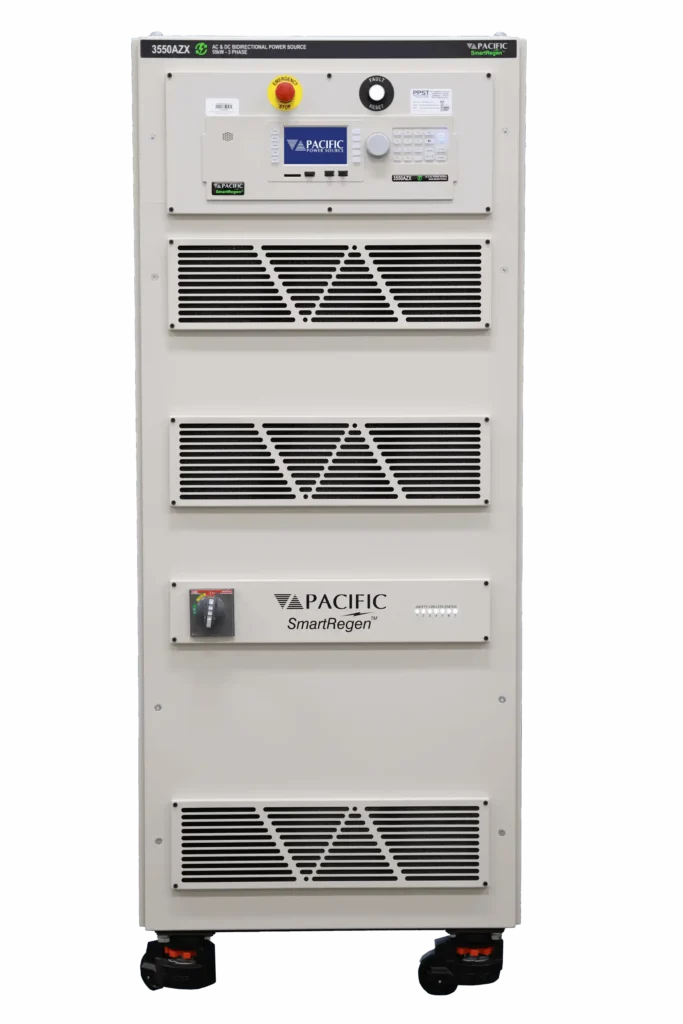

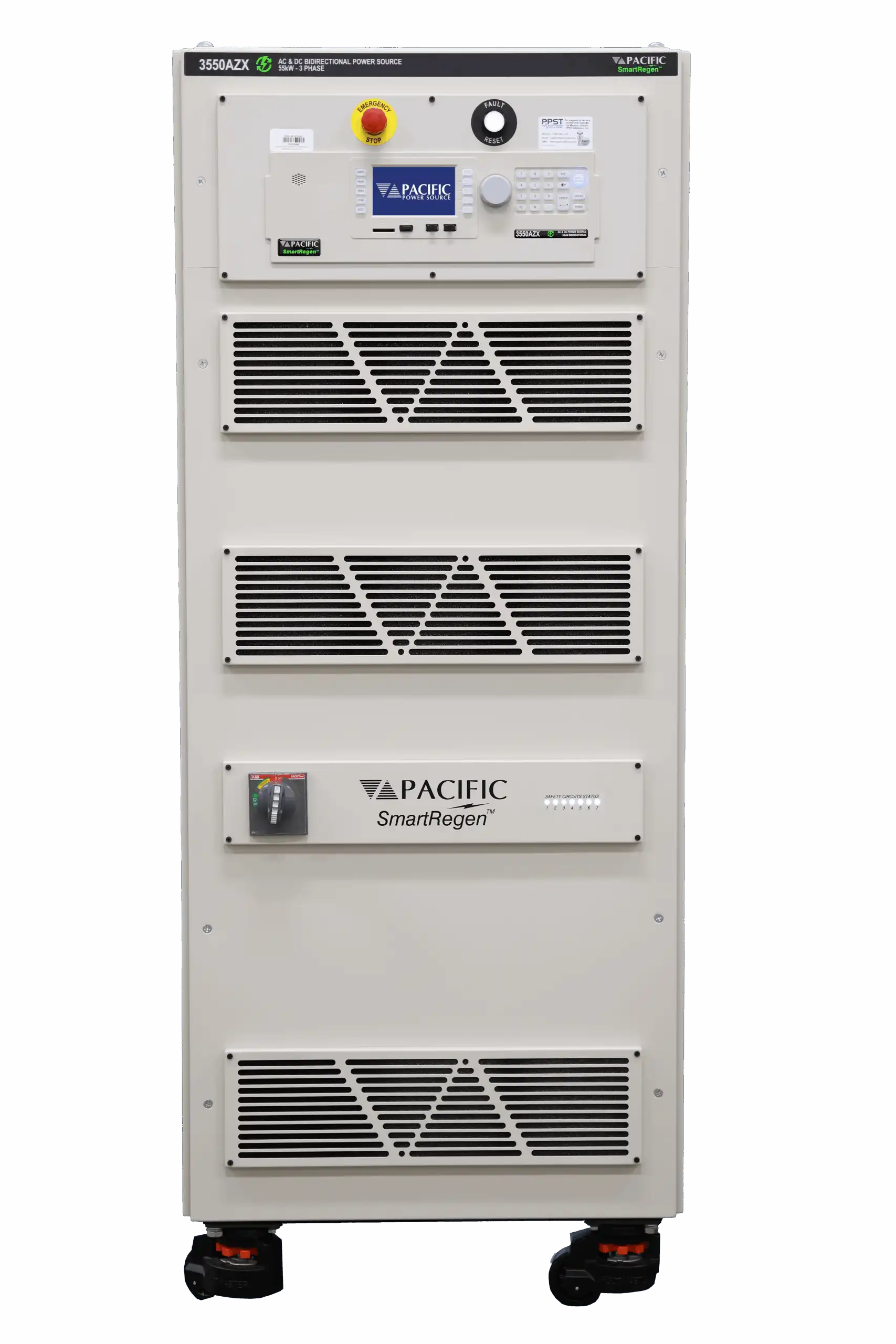

The AZX Series is a regenerative 4-quadrant AC and DC power source that functions as an AC voltage source, DC power supply, current source, AC/DC load, and PHIL interface in a single unit. This regenerative power source provides 90% energy recovery to reduce operating costs. From 30kVA single cabinets to 1.1MW+ three-phase systems, the AZX provides unmatched performance for the most versatile and demanding test applications.
Why Choose AZX Series
AC & DC Power Source, Current Source, Load & PHIL Amplifier included
Dual voltage range and high current availability within a single product
Power Hardware in the Loop with <50µs latency for real-time simulation

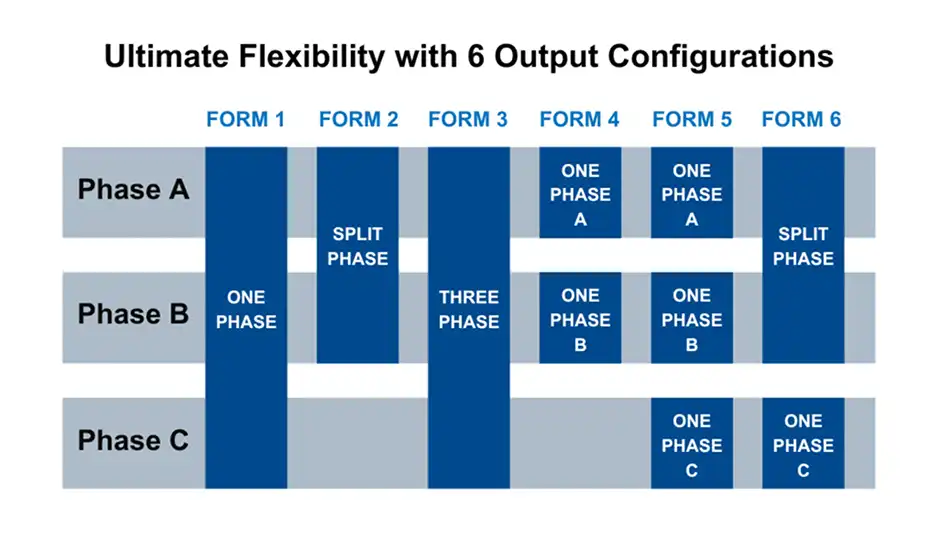

AC, DC, AC+DC, DC+AC, and 6-form configurations for multi-channel capability
Key Specifications
- Single, Split, Three-Phase
- 30kW, 45kW, or 55kW per cabinet
- Modular, scalable power up to 550kW
- High Power Three-Phase Systems up to 1.155MW
- Dual Voltage Range: 0-240Vac L-N / 0-415Vac L-L and 0-480Vac-LN / 0-830Vac-LL; 0-340Vdc and 0-680Vdc
- 15Hz-1000Hz; Extended Mode 1 – 10,000Hz
- Regenerative > 90% Efficiency
- Full Galvanic Isolation protects users and units under test
- Precision True-RMS metering
- Advanced Oscilloscope Function
- Sine, Square, Triangle, THD and Arbitrary waveforms
- Programmable Output Impedance (R+L); Resistive -10 to +10Ohm, Inductive 0 to 2mH

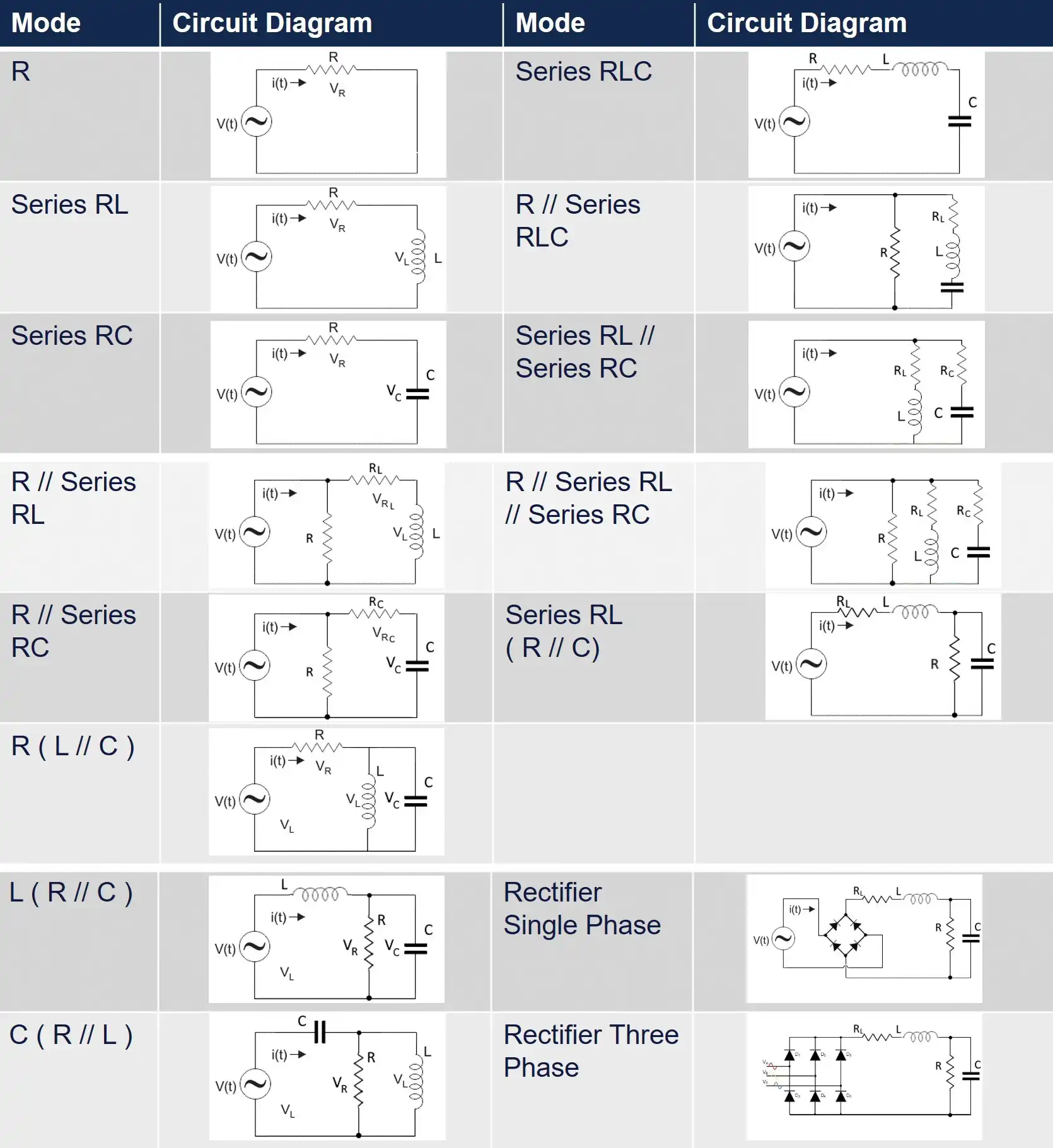

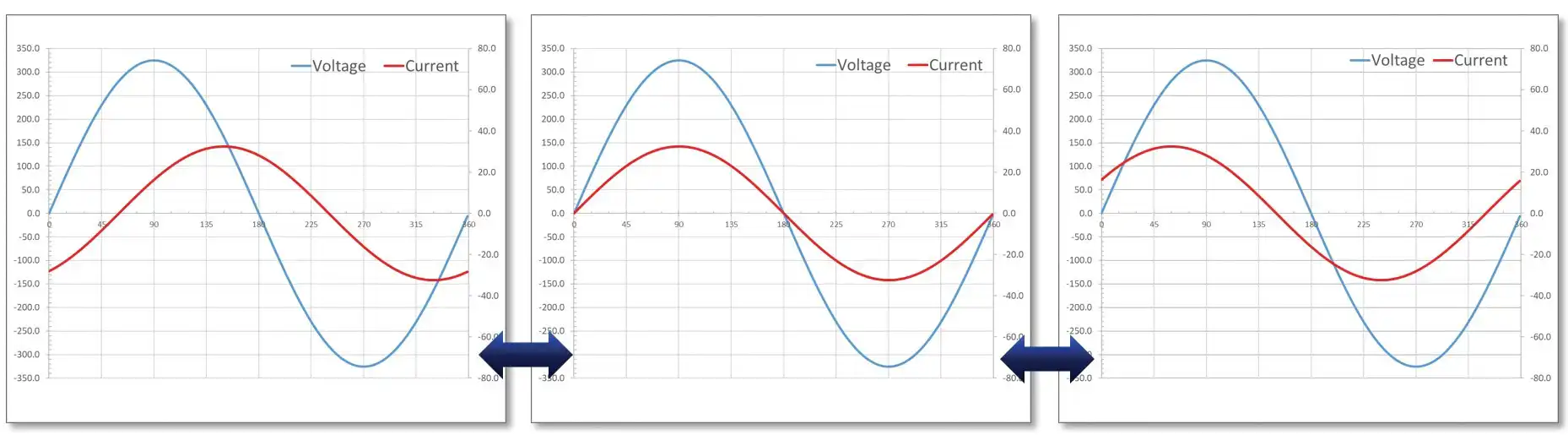

- Load Modes: Constant Current (CC), Constant Resistive (CR), Constant Power (CP) AND Circuit Emulation (CE)
- 3 Phase AC input with Active PFC
- 200 programs for transient testing (List, Pulse, Step Modes)
- Precision Voltage Programming – 0.02% with Continuous Self Calibration (CSC)
- Extensive Analog and Digital I/O for system integration
- RS-232, USB, Modbus, TCP, GPIB, SCPI compatibility; IVI Instrument Drivers
- CE (EMC/Safety) Marked
- Built-In SmartSource Suite Remote Control Platform
The Highest Performance, Multi-Functional Solution
The AZX series supports both low and high voltage ranges for AC or DC. Test accurately with seamless transition of voltage ranges. The constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminates the need to switch between voltage ranges. This prevents potential disruptions in output power.
- The Industry’s Widest Operating Envelope
- More Current at Lower Voltage
- AC / DC Dual Voltage Ranges
- Seamless Transition of Power
For real-time Power Hardware in the Loop (HIL) simulation applications, the AZX offers a high speed set of analog inputs and outputs with fast output response. This analog interface provides high speed input for controlling frequency, voltage or current and waveshape. Voltage and Current output capture signals are returned to the Real Time Simulation System.
- Amplifier for PHIL applications
- Latency of less than 50µs
- High Speed Analog Inputs
Simultaneous AC and DC operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC, AC+DC, DC+AC output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC.
- AC, DC, AC+DC, DC+AC configurations
- Simultaneously test AC and DC, Source or Load on separate phases
- Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.

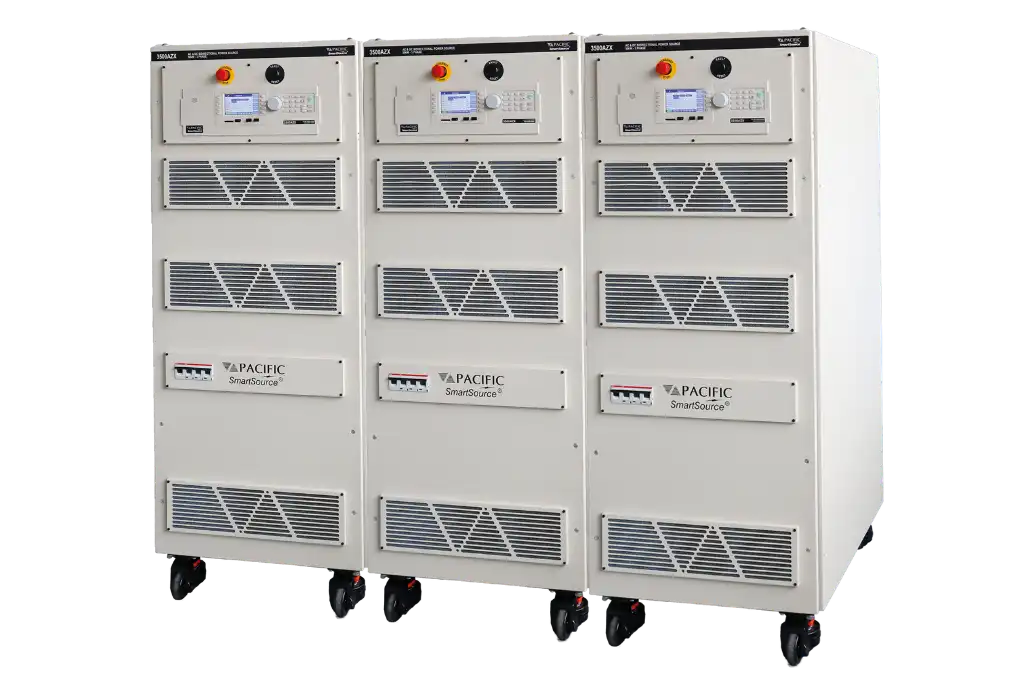

For applications requiring more than 550kW of three phase power, a dedicated Three-Phase Programmable AC Power Source Cabinet System is available that controls three high power AZX single phase power multi-cabinet AZX clusters to create a system configuration exceeding 1MW of programmable power. This state-of-the-art power cabinet solution is designed for high power applications requiring precise and independent control of each AC phase. This system consists of three multi-cabinet AZX clusters and one Controller Cabinet that routes power from all other cabinets to a point of common connection for the end-user’s three phase load. Each phase cluster is dedicated to delivering one phase of the three-phase output, all seamlessly synchronized and controlled by a centralized three-phase controller unit in the Controller Cabinet.
- Modular Cabinet Design – Each phase is powered by an independent cluster consisting of four to seven paralleled AZX cabinets, ensuring flexibility, scalability, and ease of maintenance.
- High Power Configurations – This approach supports 220kW to 385kW per phase or 660kW to 1.155MW of three phase programmable power.
- Programmability – The common three-phase Controller Cabinet enables precise voltage, frequency, and waveform adjustments for each phase.
Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device.
- Access on any web browser in real-time
- Enhanced visualization and reporting tools
- View and control on multiple windows
- Save time and increase productivity
AZX Series Product Overview
| Model | Rated Power (W/VA) | Output Form | Output Volts (Vac/Vdc) | Output Amps/Phs (Aac/Adc) | AC Input (2) | Units/Height | Weight (LBS/KG) | ||
|---|---|---|---|---|---|---|---|---|---|
| 3300AZX | 30000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240VLN / ±340 Vdc | 45Arms/ 30Adc 90Arms / 60Adc | 3Ø | 1 / 60″ | 517/1140 | ||
| 3450AZX | 45000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240VLN / ±340 Vdc | 65Arms/ 40Adc 110Arms / 80Adc | 3Ø | 1 / 60″ | 517/1140 | ||
| 3550AZX | 55000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240VLN / ±340 Vdc | 75Arms/ 50Adc 130Arms / 100Adc | 3Ø | 1 / 60″ | 517/1140 | ||
| 3900AZX | 90000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240VLN / ±340 Vdc | 130Arms/ 80Adc 220Arms / 160Adc | 3Ø | 2 / 60″ | 1034/2280 | ||
| 31100AZX | 110000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240VLN / ±340 Vdc | 150Arms/ 100Adc 260Arms / 200Adc | 3Ø | 2 / 60″ | 1034/2280 | ||
| 31650AZX | 165000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240VLN / ±340 Vdc | 225Arms/ 150Adc 390Arms / 300Adc | 3Ø | 3 / 60″ | 1551/3420 | ||
| 32200AZX | 220000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240VLN / ±340 Vdc | 300Arms/ 200Adc 520Arms / 400Adc | 3Ø | 4 / 60″ | 2068/4560 |
Notes
- In Split Phase mode, rated power is 30kVA/30kW for 3300AZX, 33kVA for 3450AZX & 36.7 kVA for 3550AZX Models.
- For applications requiring more than 220kVA/kW up to 1.1MW+, contact Pacific Power Source for details.
- Three phase input voltage settings: 380 to 400VAC±10% or 480VAC±10%.
