Regenerative Grid Simulator with PHIL, 30kVA to 1.1MVA
Regenerative Grid Simulator with PHIL, 30kVA to 1.1MVA

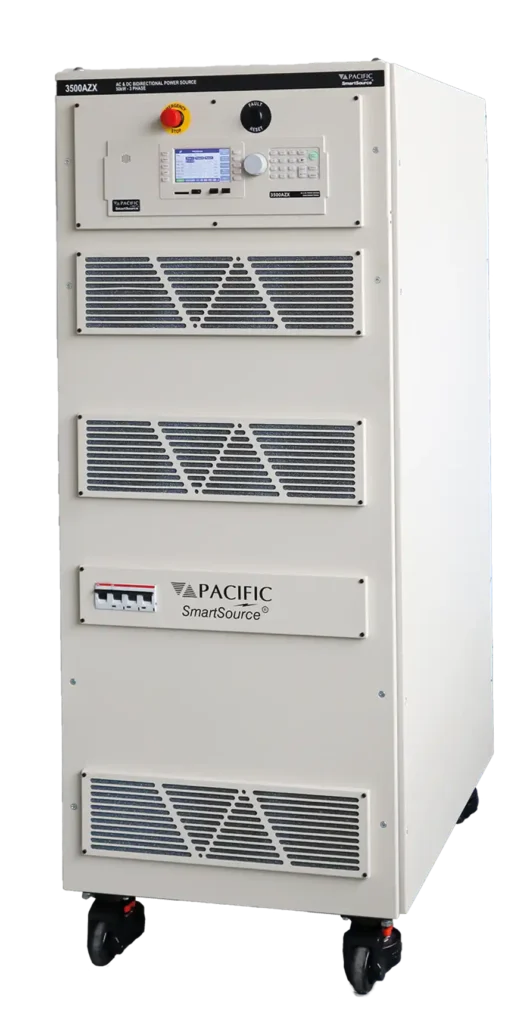

The GSZ Series is a high power Regenerative Grid Simulator with optional load and PHIL interface. From 30kVA single cabinets to 1.1MW+ three-phase systems, the GSZ is designed for the testing and verification of all grid-tied applications. Simulate any grid condition and test to global regulatory compliance standards such as IEEE 1547.1, UL 1741 SB, IEC 61000-3, IEC 61000-4, and more.
Why Choose GSZ Series
AC & DC Power Source with Options for Load & PHIL Amplifier
Dual voltage range and high current availability within a single product
Save time testing to: IEC 61000-xx and IEEE 1547.1-2020
AC, DC (AC+DC option), and 6-form configurations for multi-channel capability
Key Specifications
- Single, Split, Three-Phase
- 30kVA, 45kVA, or 55kVA per cabinet
- Modular, scalable power up to 550kVA

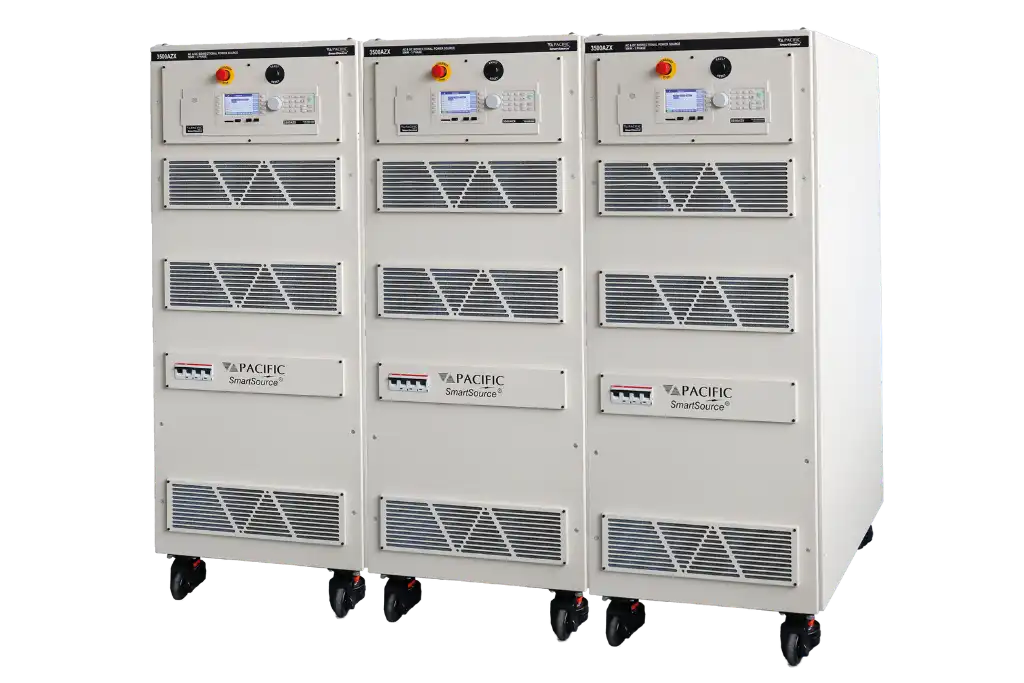

- High Power Three-Phase Systems up to 1.155MVA
- AC, DC (AC+DC Option)
- Dual Voltage Range: 0-240Vac L-N / 0-415Vac L-L and 0-480Vac-LN / 0-830Vac-LL; 0-340Vdc and 0-680Vdc
- 15Hz-200Hz
- Regenerative > 90% Efficiency
- Power Hardware in the Loop with <50µs latency for real-time simulation

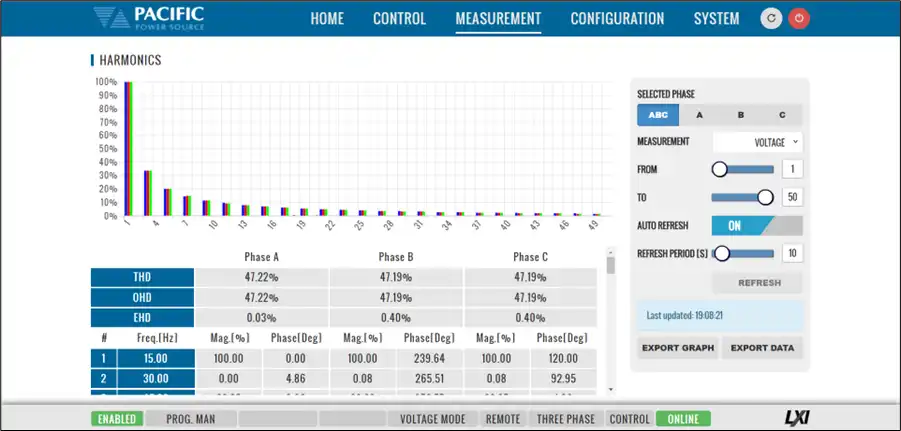

- Harmonics AND Interharmonics included
- Full Galvanic Isolation protects users and units under test
- Precision True-RMS metering
- Advanced Oscilloscope Function
- Programmable Output Impedance (R+L); Resistive -10 to +10Ohm, Inductive 0 to 2mH
- Option L – Load Mode: Constant Current (CC), Constant Resistive (CR), Constant Power (CP) AND Circuit Emulation (CE)
- 3 Phase AC input with Active PFC
- 200 programs for transient testing (List, Pulse, Step Modes)
- Precision Voltage Programming – 0.02% with Continuous Self Calibration (CSC)
- Extensive Analog and Digital I/O for system integration
- RS-232, USB, Modbus, TCP, GPIB, SCPI compatibility; IVI Instrument Drivers
- CE (EMC/Safety) Marked
- Built-In SmartSource Suite Remote Control Platform
Accurate Grid Simulation for Grid Compliance Testing
The GSZ Regenerative Grid Simulator supports both low and high voltage ranges for AC or DC. Test accurately with seamless transition of voltage ranges. The constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminates the need to switch between voltage ranges. This prevents potential disruptions in output power.
- The Industry’s Widest Operating Envelope
- More Current at Lower Voltage
- AC / DC Dual Voltage Ranges
- Seamless Transition of Power
For real-time Power Hardware in the Loop (HIL)grid simulation applications, the GSZ offers a high speed set of analog inputs and outputs with fast output response. This analog interface provides high speed input for controlling frequency, voltage or current and waveshape. Voltage and Current output capture signals are returned to the Real Time Simulation System.
- Amplifier for PHIL applications
- Latency of less than 50µs
- High Speed Analog Inputs
The Regenerative Grid Simulator – GSZ Series has a built-in waveform digitizer and scope with fast transient capabilities at 200µs time resolution supporting LIST, PULSE and STEP modes. Waveform generation includes ten Standard, Sine, Square, Triangle, Clipped and Harmonics AND inter-harmonics generation.
- AC, DC configurations
- Simultaneously test AC and DC, Source or Load on separate phases
- Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.
Simultaneous AC and DC operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC.
- AC, DC multi-channel configurations
- Simultaneously test AC and DC, Source or Load on separate phases
- Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.
Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device.
- Access on any web browser in real-time
- Enhanced visualization and reporting tools
- View and control on multiple windows
- Save time and increase productivity
| Model | Phase Mode | Rated Power(1) (AC/DC) | Voltage Ranges (Vln / Vdc) | Max, AC/DC Current High V Range(2) | Max, AC/DC Current Low V Range(2) | Form Factor | |
|---|---|---|---|---|---|---|---|
| 3300GSZ | 1,2 & 3 | 30 kVA, kW 30 kW | 240Vac/480Vac ±340Vdc/±680Vdc | 45Arms 30Adc | 90Arms 60Adc | 34U Cabinet | |
| 3450GSZ | 1,2 & 3 | 45 kVA, kW 45 kW | 240Vac/480Vac ±340Vdc/±680Vdc | 65Arms 40Adc | 110Arms 80Adc | 34U Cabinet | |
| 3550GSZ | 1,2 & 3 | 55 kVA, kW 55 kW | 240Vac/480Vac ±340Vdc/±680Vdc | 75Arms 50Adc | 130Arms 100Adc | 34U Cabinet | |
| 3900GSZ | 1,2 & 3 | 90 kVA, kW 90 kW | 240Vac/480Vac ±340Vdc/±680Vdc | 130Arms 80Adc | 220Arms 160Adc | 2 x 34U Cabinet | |
| 31100GSZ | 1,2 & 3 | 110 kVA, kW 110 kW | 240Vac/480Vac ±340Vdc/±680Vdc | 150Arms 100Adc | 260Arms 200Adc | 2 x 34U Cabinet | |
| 31650GSZ | 1,2 & 3 | 165 kVA, kW 165 kW | 240Vac/480Vac ±340Vdc/±680Vdc | 225Arms 150Adc | 390Arms 300Adc | 3 x 34U Cabinet | |
| 32200GSZ | 1,2 & 3 | 220 kVA, kW 220 kW | 240Vac/480Vac ±340Vdc/±680Vdc | 300Arms 200Adc | 520Arms 400Adc | 4 x 34U Cabinet |
Notes
- In Split Phase mode, rated power is 30kVA/30kW for 3300GSZ, 33kVA for 3450GSZ & 36.7 kVA for 3550GSZ Models.
- For applications requiring more than 220kVA/kW up to 1.1MW+, contact Pacific Power Source for details.
- Three phase input voltage settings: 380 to 400VAC±10% or 480VAC±10%.
